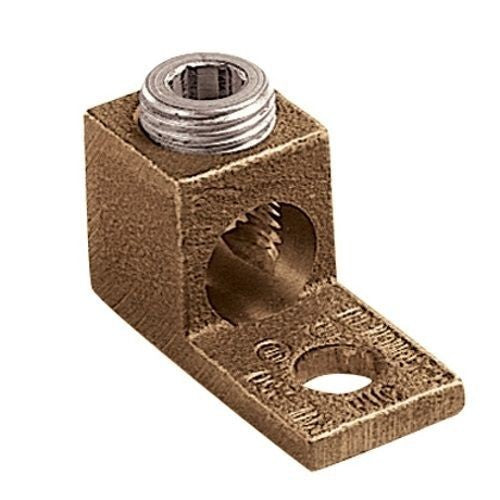

Penn-Union PNL-1/0 Penn-Lug, 8 to 1/0 AWG Standard/Set Screw Conductor, 1 Bolt Holes, Bronze

Product Description

The Penn-Union PNL-1/0 Penn-Lug is designed for efficient electrical connections. This mechanical terminal lug accommodates conductors from eight to one-aught American Wire Gauge (AWG) and features one bolt hole for secure fastening.

• Material: Bronze for durability
• Supports conductor sizes from eight to one-aught AWG
• Temperature rating of up to ninety degrees Celsius

Product Highlights

This lug is created to provide reliable connections in various electrical systems. The bronze construction ensures long-lasting performance, making it suitable for a range of applications.

Product Information

Standard Information

• Brand: Penn-Union
• Manufacturer: Penn-Union Corp

Technical Specifications

• Material: Bronze
• Temperature Rating: 90 deg C
• Tongue Style: Straight
• Dimensions: 1-19/32 in L x 47/64 in W x 25/32 in H
• Conductor Size: 1/0 AWG Stranded
• Tongue Size: 47/64 in W x 9/64 in Thk
• Stud Size: 21/64 in
