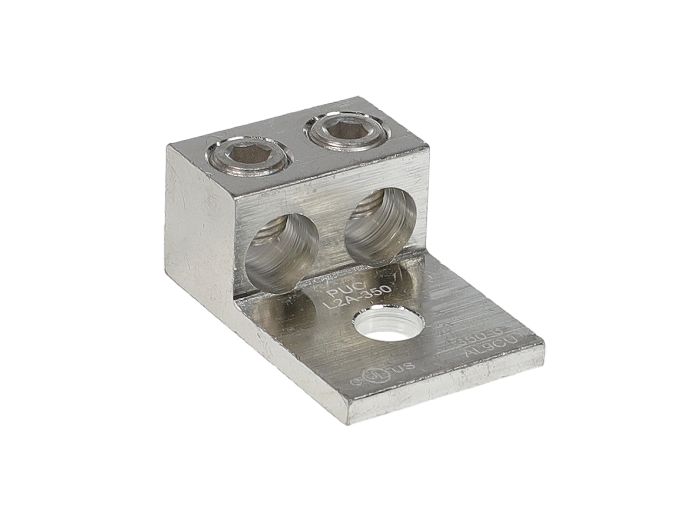

Penn-Union L2A-350 Aluminum Dual Rated Lug for Two Conductors - One Hole Tongue 6 Str. to 350 kcmil AL & CU Compression Lug

Product Description

The PENN-UNION L2A-350 is an aluminum dual-rated lug designed for two conductors, featuring a one-hole tongue and accommodating 6 Str. to 350 kcmil AL & CU compression. It is electro-tin plated to ensure minimal contact resistance and corrosion protection. Rated for 600 V, 90°C applications. The use of oxide inhibitor is recommended for all aluminum terminations.

• Manufactured from high strength aluminum alloy extrusion
• For use with two copper or aluminum conductors
• Electro-tin plated to ensure minimum contact resistance and corrosion protection

Product Highlights

Aluminum lug for use with copper or aluminum conductors. It is electro-tin plated for corrosion protection and ensures minimum contact resistance.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: L2A-350
• Country of Origin: USA

Technical Specifications

• L (in.): 2.88
• W1: 1.94
• W2: 1.75
• H (in.): 1.25
• T (in.): 0.25
• B (in.): 1.75
• C (in.): 0.56
• D (in.): 0.53
• Mounting Bolt Size: 1/2"
• Hex Size: 3/8"
• Manufacturer Part Number: L2A350
• Manufacturer: Penn Union
• Product Series: L2A
• Description: Aluminum Solderless Lug
• Wire Size Range: 6 AWG-350 kcmil
• Number of Conductors: 2
• Material: Aluminum Alloy
• Approvals: CSA, UL
• Net Weight: 0.27 lbs
• Gross Weight: 0.27 lbs
