Penn-Union KP-1-DB Bronze Ground Clamp 1/2-1

Product Description

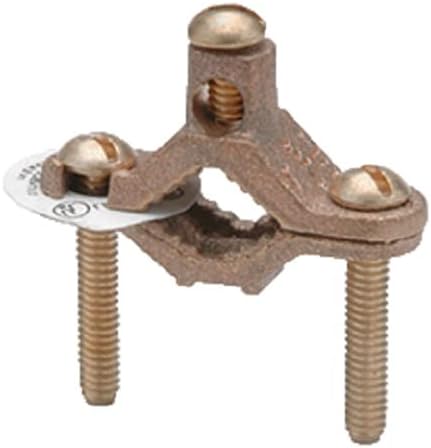

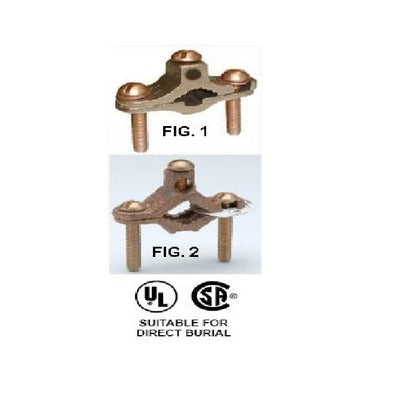

The PENN-UNION KP-1-DB bronze ground clamp is designed to connect a grounding conductor to a water pipe, copper tube, ground rod, or rebar. It is cast from high-strength, high-conductivity copper alloy and suitable for direct burial applications in earth and concrete. Accommodates conductor sizes from 10 AWG solid to 2 AWG stranded and pipe sizes 1/2" - 1".

• Cast From High Strength, High Conductivity Copper Alloy
• Designed to Connect Grounding Conductor to Water Pipe, Copper Tube, Ground Rod, or Rebar
• Suitable for Direct Burial Applications

Product Highlights

Bronze ground clamp for connecting grounding conductors to pipes, tubes, rods, or rebar. Suitable for direct burial.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: KP-1-DB

Technical Specifications

• Manufacturer Part Number: KP1DB
• Manufacturer: Penn Union
• Product Series: KP-DB
• Family Series: Penn Union Grounding, KP-DB Series
• Description: Bronze Ground Clamp
• Number of Conductors: 1
• Conductor Size: 10 - 2 sol.
• Material: Bronze
• Compression Style: Split Frame Clamp
• For Use With: Pipe, Rebar, Rod, Tube
• Mounting: Direct on Pipe, Direct on Rod
• Direct Burial: Yes
• Approvals: CSA, UL
• Allowable Gauge Range: 10 - 2
• Wire Range: 10 AWG (Solid) - 2 AWG (Stranded)
• Pipe Size: 1/2" - 1"
