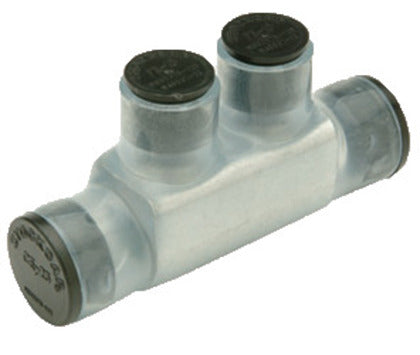

Penn-Union IISR-350 Aluminum Clear Pre-Insulated Splicer/Reducer 10 AWG - 350 kcmil

Product Description

The PENN-UNION IISR-350 is an aluminum clear pre-insulated splicer/reducer, accommodating wire sizes from 10 AWG to 350 kcmil. It is dual rated for aluminum and copper conductors, up to 600V and 90°C, and cold temperature rated to -40°C. Suitable for cable trays, raceways, ducts, and troughs, it's pre-filled with oxide inhibitor and features removable access plugs.

• Manufactured from high strength aluminum alloy
• Dual rated for aluminum and copper conductors, 600 Volt, 90°C
• Pre-filled with oxide inhibitor to prevent oxidation

Product Highlights

This aluminum splicer/reducer is pre-insulated, abrasion and chemical resistant, and will not support combustion. It saves time by eliminating taping and reducing installation costs.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: IISR-350
• Country of Origin: USA

Technical Specifications

• L (in.): 4.63
• W (in.): 1.34
• H (in.): 2.35
• Hex Size: 5/16"
• Manufacturer Part Number: IISR350
• Manufacturer: Penn Union
• Product Series: IISR
• Family Series: Penn Union Terminals, IISR Series
• Description: Aluminum Clear Pre-Insulated Inline Splicer Reducer
• Connection Type: Mechanical
• Max Voltage: 600 V
• Wire Size Range: 10 AWG-350 kcmil
• Sealant Type: De-ox
• Color: Clear
• Material: Aluminum
• Approvals: cULus
• Type: In-Line Cable Splicer/Reducer
• AWG Max: 350mcm
• AWG Min: 6 sol
• Conductor: CU/AL
• Wire/Cable Openings: 2
• Stud Size: 5/16 in
