Penn-Union GCL-4 Aluminum Dual Rated Ground Clamp 6 AWG SOL to 250 kcmil STR 2-1/2 to 4 in Water Pipe

Product Description

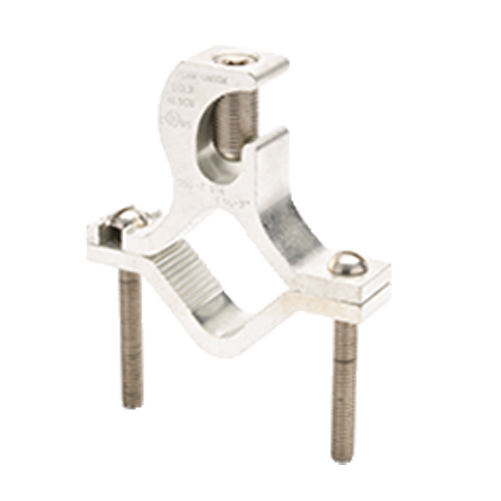

The Penn-Union GCL-4 Aluminum Dual Rated Ground Clamp connects aluminum or copper ground conductors to copper water pipe, galvanized pipe, or steel conduit. Plated for corrosion protection and low contact resistance, it features a GCL lay-in feature and is UL 467 listed. This ground clamp accommodates 6 AWG SOL to 250 kcmil STR conductors and 2-1/2 to 4 inch water pipe.

• Manufactured from high strength aluminum alloy
• Designed to connect aluminum or copper ground conductors to copper water pipe, galvanized pipe, or steel conduit
• Plated for corrosion protection and low contact resistance

Product Highlights

This aluminum ground clamp is dual-rated and suitable for direct burial, ensuring a reliable ground connection.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: GCL-4

Technical Specifications

• Conductor Range: 6 Sol. - 250 kcmil
• Type: Dual Rated Ground Clamp
• Water Pipe Range: 2 1/2” - 4”
• Material: Aluminum
• CLAMP SCREW MATERIAL: Zinc Plated Steel
• CONDUCTOR GROOVE SCREW MATERIAL: Tin Plated Aluminum
• CONNECTOR BODY PLATING: Clear
• Standards: UL 467
• SUITABLE FOR DIRECT BURIAL: Yes
• Allowable Gauge Range: 6 - 250
