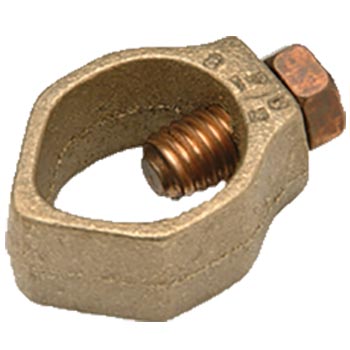

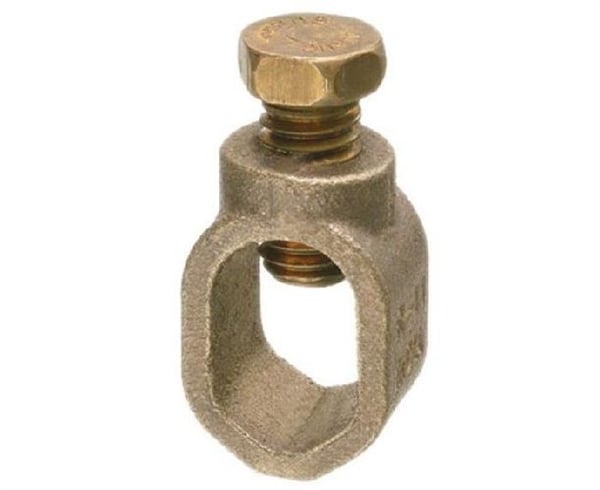

Penn-Union CEB-2 Bronze Economy Ground Rod Clamp 8 SOL to 2 STR, 5/8 in Rod, 1/2 in Rebar

Product Description

The Penn-Union CEB-2 is a bronze economy ground rod clamp designed to join a range of cable to copper clad, galvanized steel and stainless steel ground rods. It slips over the end of the rod for single wrench installation and is furnished with a silicon bronze hex head bolt. It is UL listed per UL 467 and suitable for direct burial.

• Manufactured from corrosion resistant cast aluminum bronze
• Designed to join a range of cable to copper clad, galvanized steel and stainless steel ground rods
• Slips over end of rod for single wrench installation

Product Highlights

This ground rod clamp is ideal for connecting cables to ground rods, offering a corrosion-resistant and UL-listed solution for direct burial applications.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: CEB-2
• Country of Origin: USA

Technical Specifications

• Conductor Range: 8 SOL to 2 STR
• Rebar Size Capacity: 1/2 in
• Rod Size Capacity: 5/8 in
• Type: Ground Rod Clamp
• Material: Tin Plated Cast Aluminum Bronze Body, Silicon Bronze Hexagon Head Bolt
• Conductor Size: 8 AWG Solid To 2 AWG Stranded
