Penn-Union BLU-6S1 Standard Barrel Copper Compression Lug 6 AWG

Product Description

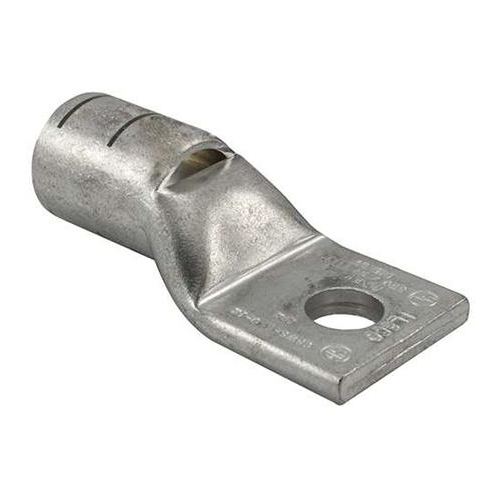

The Penn-Union BLU-6S1 is a standard barrel copper compression lug with a one-hole tongue and inspection window, designed for 6 AWG wires. It is manufactured from high conductivity seamless copper tubing and tin-plated to inhibit corrosion. Suitable for voltages up to 35 KV. UL listed and CSA certified.

• Manufactured from high conductivity seamless copper tubing
• Tin-plated to inhibit corrosion
• Beveled entry for easy cable insertion

Product Highlights

This copper compression lug features a beveled entry for easy cable insertion and an inspection window to ensure full cable insertion.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: BLU-6S1

Technical Specifications

• Conductor Size: 6 AWG
• Material: Copper
• Mfg Standards/Approvals: RoHS Compliant, UL, CSA
• Number of Conductors: 1
• Number of Holes: 1
• Series: BLU-S
• Stud Hole Size: #10
• Type: Terminal Compression Lug
• Wire Strip Length: 15/16 in
• W (in.): 0.41
• C (in.): 0.69
• T (in.): 0.09
• B (in.): 0.81
• L (in.): 1.67
• Color Code: Blue
• Overall Length: 1-23/32 in
• Temperature Rating: 45 to 90 deg C
• Tongue Size: 11/16 in L x 7/16 in W x 3/32 in THK
• Voltage Rating: 35 kV
• Standard & Approvals: UL Listed For Cu 90 deg C, UL486A Power, UL467 Grounding, CSA Certified, CSA C22.2 No.65 Power, CSA C22.2 No.41 Grounding, Grounding and Bonding, Direct Burial
• Barrel Size: 13/16 in L
• Die Code: B-7
• Manufacturer Part Number: BLU6S1
• Manufacturer: Penn Union
• Product Series: BLU-S
• Family Series: Penn Union Terminals, BLU-S Series
• Description: Copper Penn-Crimps Terminal Lug
• Wire Size Range: 6 AWG
