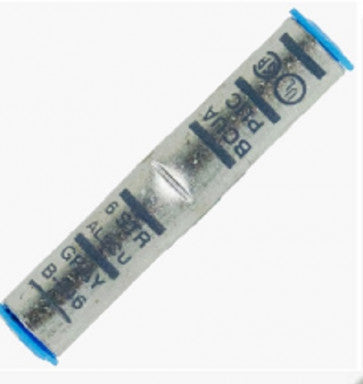

Penn-Union BCUA-6 Type BCUA Crimp Splice, 6 AWG, 1-5/8 in L

Product Description

The Penn Union BCUA-6 is a Type BCUA crimp splice designed for 6 AWG wires. It features high conductivity seamless aluminum tubing, is tin-plated, and pre-filled with oxide inhibitor. Suitable for voltages up to 35 KV if taped and 5 KV in bare splice applications. UL listed and CSA certified.

• Manufactured from high conductivity seamless aluminum tubing
• Tin-plated and factory pre-filled with oxide inhibitor compound
• Beveled entry for easy cable insertion

Product Highlights

This aluminum/copper crimp splice ensures secure connections and is suitable for a range of power applications.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: BCUA-6

Technical Specifications

• Conductor Size: 6 AWG
• Insulation: Non-Insulated
• Mfg Standards/Approvals: RoHS Compliant, UL, CSA
• Series: BCUA
• Terminal Material: Aluminum
• Terminal Type: Barrel - Standard
• Type: Crimp Splice
• Wire Strip Length: 7/8 in
• L (in.): 1.75
• Material: Aluminum
• Manufacturer Part Number: BCUA6
• Manufacturer: Penn Union
• Product Series: BCUA
• Description: Aluminum Penn-Crimps Splice
• Wire Size Range: 6 AWG
• Insulated: Non-Insulated
• Color: Gray
• Plating Material: Tin
• Approvals: CSA, UL
