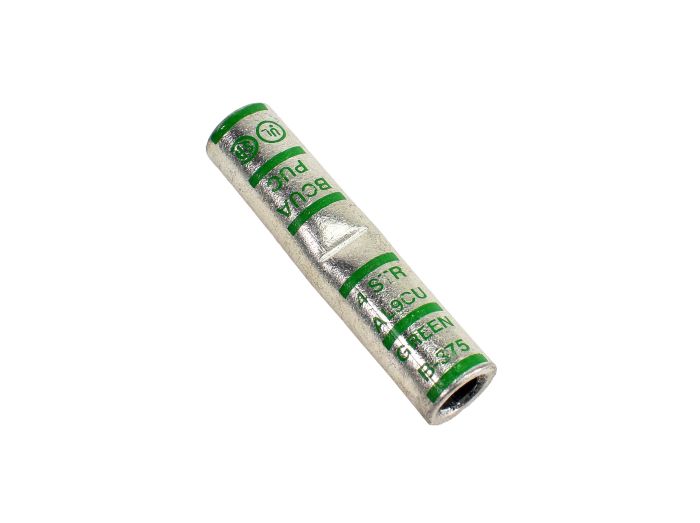

Penn-Union BCUA-4 Standard Barrel Aluminum Compression Sleeve Splice Connector 4 AWG

Product Description

The PENN-UNION BCUA-4 is a standard barrel aluminum compression sleeve splice connector for 4 AWG wires. It is manufactured from high conductivity seamless aluminum tubing and tin-plated, with a factory pre-filled oxide inhibitor compound. This solderless terminal features a beveled entry for easy cable insertion and positive cable stops to ensure proper conductor insertion.

• Manufactured from high conductivity seamless aluminum tubing
• Tin-plated and factory pre-filled with oxide inhibitor compound
• Beveled entry for easy cable insertion

Product Highlights

Aluminum compression sleeve splice connector with beveled entry and positive cable stops, suitable for voltages up to 35 KV when taped.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: BCUA-4

Technical Specifications

• Conductor Size: 4 AWG
• Insulation: Non-Insulated
• Mfg Standards/Approvals: RoHS Compliant, UL, CSA
• Series: BCUA
• Terminal Type: Standard Barrel
• Type: Solderless Terminal
• Wire Strip Length: 1 in
• Manufacturer Part Number: BCUA4
• Manufacturer: Penn Union
• Product Series: BCUA
• Family Series: Penn Union Terminals, BCUA Series
• Description: Aluminum Penn-Crimps Splice
• Wire Size Range: 4 AWG
• Material: Aluminum
• Plating Material: Tin
• Approvals: CSA, UL
