Penn-Union BBLU075D Long Barrel Copper Compression Lug, Two Hole Tongue w/Closed Transition, 750 kcmil

Product Description

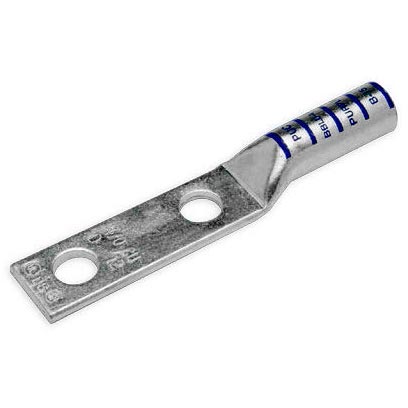

The Penn-Union BBLU-075D is a long barrel copper compression lug with a two-hole tongue and closed transition, designed for 750 kcmil conductors. It is manufactured from high conductivity seamless copper tubing and tin-plated to inhibit corrosion. The lug is suitable for voltages up to 35 KV and is UL listed and CSA certified.

• Manufactured from high conductivity seamless copper tubing
• Tin-plated to inhibit corrosion
• Beveled entry for easy cable insertion

Product Highlights

This copper compression lug ensures secure connections with its long barrel design and two-hole mounting pad. Ideal for power applications requiring reliable performance.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: BBLU075D
• Country of Origin: USA

Technical Specifications

• Type: Terminal Compression Lug
• Series: BBLU-D
• Material: Copper
• Conductor Size: 750 kcmil
• Stud Hole Size: 1/2 in
• Number of Holes: 2
• Stud Hole Spacing: 1 in
• Wire Strip Length: 3 in
• Number of Conductors: 1
• Mfg Standards/Approvals: RoHS Compliant, UL, CSA
• Burndy Die Index No Tool: 24
• Penn-Union Die Catalog No: T-24
• W (in.): 1.91
• C (in.): 3.00
• T (in.): 0.27
• B (in.): 2.88
• L (in.): 6.85
• Brand: Penn-Union
• MPN: BBLU075D
• Country of Origin: China
