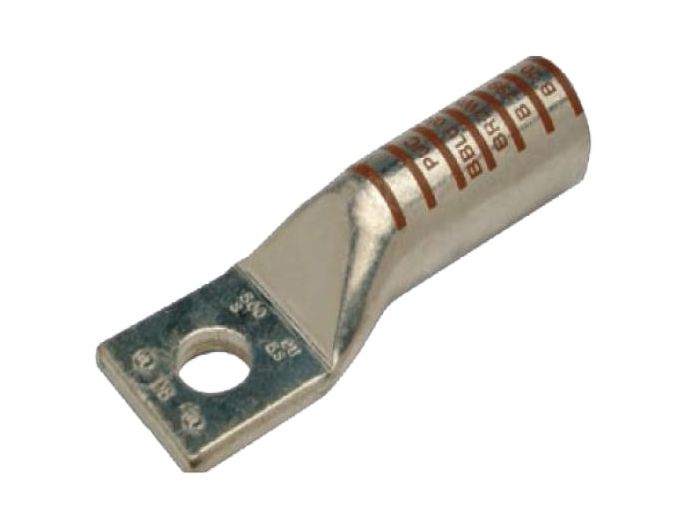

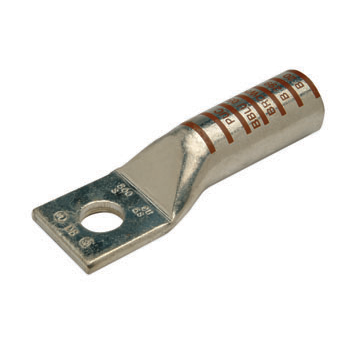

Penn-Union BBLU050S2 copper compression lug long barrel one hole tongue with closed transition 500 kcmil

Product Description

The PENN-UNION BBLU050S2 is a copper compression lug designed for power, grounding, bonding, and direct burial applications. Manufactured from high conductivity seamless copper tubing, this long barrel, one-hole tongue lug accommodates 500 kcmil wire and features a 1/2 inch stud hole. It is tin-plated to inhibit corrosion and includes a closed transition to protect the cable end from environmental conditions, suitable for voltages up to 35 KV.

• Manufactured from high conductivity seamless copper tubing.
• Tin-plated to inhibit corrosion and features a beveled entry for easy cable insertion.
• Long barrel design provides high pull-out force and improved mechanical and electrical properties.

Product Highlights

Copper compression lug for 500 kcmil wire, 1/2 inch stud, tin-plated, suitable for 35 KV.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: BBLU050S2

Technical Specifications

• Width (in.): 1.53
• C (in.): 1.25
• Thickness (in.): 0.21
• B (in.): 2.25
• Length (in.): 4.25
• Stud Size: 1/2"
• Color Code: Brown
• Product Series: BBLU-S
• Family Series: Penn Union Terminals, BBLU-S Series
• Wire Size: 500 kcmil
• Number of Conductors: 1
• Material: Copper
• Approvals: CSA, UL
• Mounting: 1-Hole
• Conductor Diameter: 0.815 inches
• Barrel Type: Long
• Application: Grounding, Bonding & Direct Burial
• Type: Compression Lug
