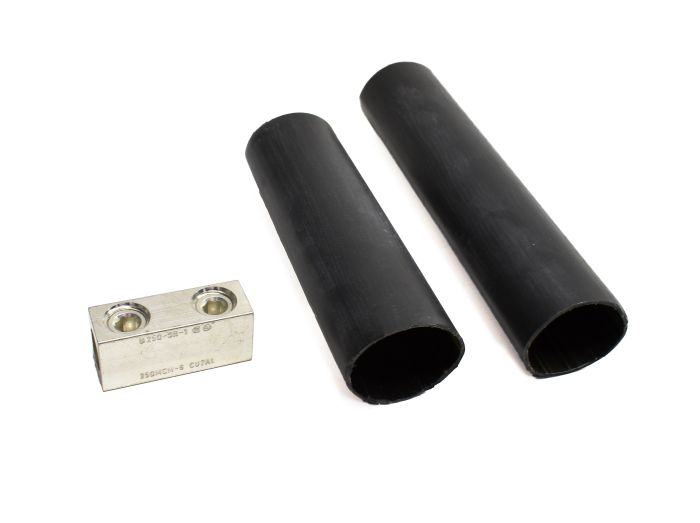

Penn-Union ASK-2/0-250 Dual Rated Butt Splice Kit for Direct Burial 2/0 AWG - 250 kcmil AL & CU

Product Description

The PENN-UNION ASK-2/0-250 is a dual-rated butt splice kit designed for direct burial applications, suitable for use with aluminum and copper conductors. It meets the requirements of the 2014 National Electric Code Articles: 110.14(B), 300.5(E) and 300.50(D). The mechanical connection type ensures a secure and reliable splice for 2/0 AWG to 250 kcmil wire sizes.

• For use with aluminum and copper conductors
• 600 Volts maximum, 221°F (105°C) temperature rating
• Meets the requirements of the 2014 National Electric Code: Articles: 110.14(B), 300.5(E) and 300.50(D)

Product Highlights

This butt splice kit features a heat shrink tube sealant and is cULus approved for direct burial, ensuring a long-lasting and safe connection.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: ASK-2/0-250
• Country of Origin: USA

Technical Specifications

• Connection Type: Mechanical
• Max Voltage: 600 V
• Wire Size Range: 2/0 AWG-250 kcmil
• Sealant Type: Heat Shrink Tube
• Direct Burial: Yes
• Approvals: cULus
• Manufacturer Part Number: ASK2/0250
• Manufacturer: Penn Union
• Family Series: Penn Union Terminals
• Description: Dual Rate Butt Splice Kit for Direct Burial
