JOHNSON CONTROLS Penn P70DA-1C High Pressure Control 50-450PSIG
JOHNSON CONTROLS Penn P70DA-1C High Pressure Control 50-450PSIG

Penn P70DA-1C High Pressure Control 50-450PSIG

JOHNSON CONTROLS
Brand: JOHNSON CONTROLS
SKU: P70DA-1C
Availability: In Stock

Ships same day if ordered by 12 pm
$144.72
$144.72
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

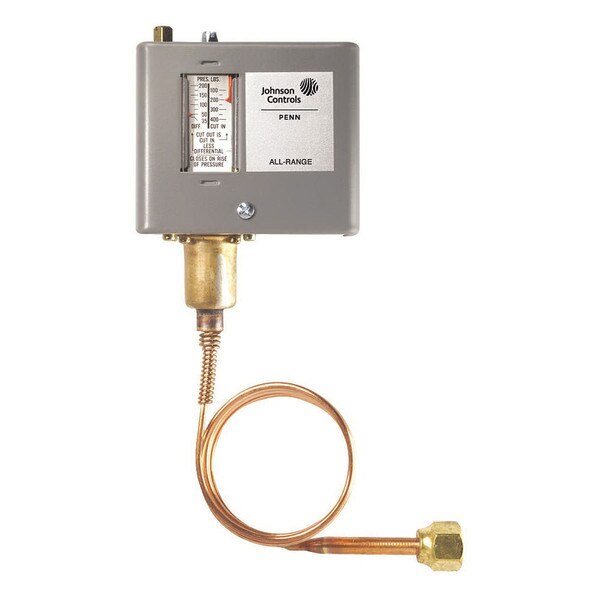

The PENN P70DA-1C is a high-pressure control designed for various applications. It features an all-steel case and cover for rugged protection of internal components. The control has a SPST contact configuration and a 1/4 Inch flare nut connection. It is suitable for low-pressure, commercial refrigeration, and air conditioning applications.

  • All-Steel Case and Cover Built to Provide Long Lasting, Rugged Protection for Internal Components
  • Manual Reset Lockout Option Provides Trip-Free Low Pressure Lockout that Cannot be Overridden or Reset Until Pressure Returns to Specified Level
  • Operating Pressure Rating of 50 to 500 PSI

Product Highlights

This high-pressure control is ideal for refrigeration and air conditioning systems, offering reliable performance and protection.

Product Information

Standard Information

  • Brand: PENN
  • Manufacturer Part Number: P70DA-1C
Technical Specifications
Application
Low Pressure, Commercial Refrigeration, Air Conditioning, Non-Corrosive Fluid
CATALOG NUMBER
P70DA-1C
Category
HVAC/R & Fans
Connection Type
1/4 Inch Flare Nut
Contact Configuration
SPST
Contact Rating
120 Volt AC 24 Amp 2 HP, 208 Volt AC 18.7 Amp 3 HP, 240 Volt AC 17 Amp 3 HP, 120 to 600 Volt AC 125 Volt Amp, 120 to 300 Volt DC 57.5 Volt Amp
Enclosure
NEMA 1
Manufacturer Name
Penn
Manufacturer Part Number
P70DA-1C
Maximum Line Pressure Rating
525 PSIG
Operating Pressure Rating
50 to 500 PSI
Series
P70
Type
High
UNSPSC Code
41112411
Material
Steel
Mounting Type
Universal Mounting Bracket
Nominal Size
1/4 in
Phase
1
Pressure Rating
50 to 500 lb/sq-in, 35 - 200 lb/sq-in Maximum Differential, 525 lbf/sq-in Maximum Working
Switching Action
SPST Open High
Voltage Rating
120 - 240 VAC
