Product Description

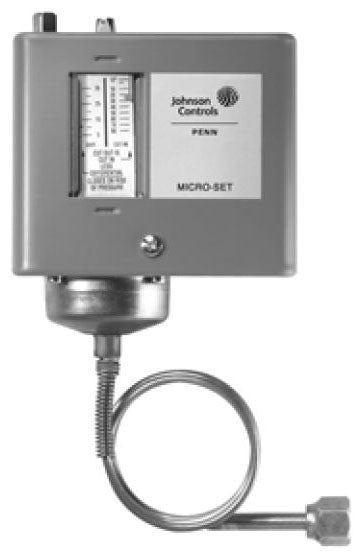

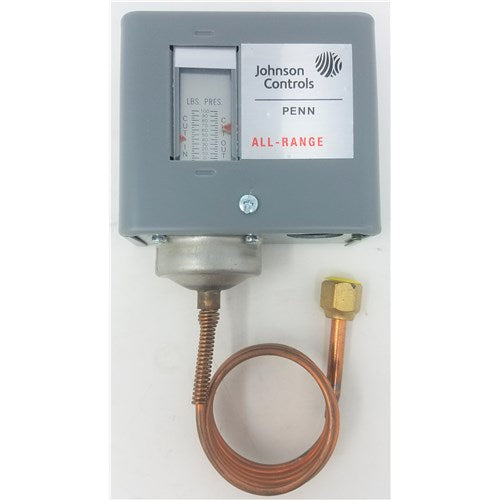

The PENN P70AB-12C is a pressure control designed for low pressure applications. It features an operating pressure rating of 12 Inch Mercury to 80 PSI and a maximum line pressure rating of 80 PSIG. This control is suitable for commercial refrigeration, air conditioning, and non-corrosive fluid applications. It has a 36-inch capillary length and a NEMA 1 enclosure.
- All Steel Case and Cover
- Sight-Set Calibrated Pressure Adjustment
- Manual Reset Lockout Option
Product Highlights
Designed for low pressure cut-out, pump-down, and capacity control in refrigeration and air conditioning systems.
Product Information
Standard Information
-
Brand: PENN
-
Manufacturer Part Number: P70AB-12C
-
Country of Origin: MX
Technical Specifications
-
Application: Low Pressure, Commercial Refrigeration, Air Conditioning, Non-Corrosive Fluid
-
Connection Type: 1/4 Inch Flare Nut
-
Contact Configuration: SPST
-
Contact Rating: 120 Volt AC 24 Amp 2 HP, 208 Volt AC 18.7 Amp 3 HP, 240 Volt AC 17 Amp 3 HP, 120 to 600 Volt AC 125 Volt Amp, 120 to 300 Volt DC 57.5 Volt Amp
-
Differential Pressure Rating: 5 to 35 PSI
-
Enclosure: NEMA 1
-
Manufacturer Part Number: P70AB-12C
-
Maximum Line Pressure Rating: 80 PSIG
-
Operating Pressure Rating: 12 Inch Mercury to 80 PSI
-
Capillary Length: 36 in
-
Type: Low
-
Series: P70
-
Material: Steel Case
-
Switch Type: SPST
-
Control Range: 12 in Hg to 80 psi
-
Mounting Type: Universal
-
Switch Action: Opens on Low Pressure
-
Open Pressure Rating: 15 psi
-
Close Pressure Rating: 25 psig
-
Country of Origin: MX
