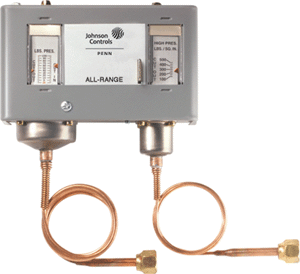

PENN CONTROLS P70NA-1C Pressure Control 1-Pole Dual All-Range

Product Description

The PENN CONTROLS P70NA-1C is a dual pressure control device designed for reliable operation in HVAC applications. This control features a low pressure side range from twenty inches of mercury to one hundred pounds per square inch and a high pressure side range from one hundred to five hundred pounds per square inch. The unit is built with a hermetic compressor rating and includes various electrical ratings for versatile usage.

• Durable all steel case and cover
• Manual reset lockout option
• Visible pressure scale for easy adjustment

Product Highlights

This pressure control provides an effective solution for managing and regulating pressure in HVAC systems.

Product Information

Standard Information

• Brand: PENN by Johnson Controls
• Series: P70

Technical Specifications

• Connection Type: 1/4 inch flared nut
• Switching Action: SPDT
• Low Pressure Side Range: 20 inHg to 100 lbf/sq-in
• High Pressure Side Range: 100 to 500 lbf/sq-in
• Capillary Length: 36 inches
• Electrical Ratings: 1.5 hp at 120 VAC, 3 hp at 208 VAC, 3 hp at 240 VAC, 5 FLA at 480 VAC
• Pilot Duty: 125 V-A at 120 to 600 VAC
