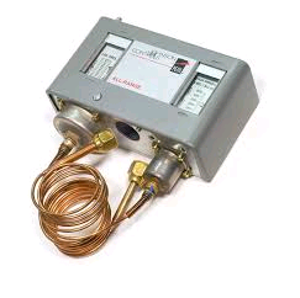

PENN CONTROLS P70LB-6C Dual Pressure Control SPST 1 Pole 12-80 psi LPR 100-500 psi HPR

Product Description

PENN CONTROLS P70LB-6C is a dual pressure control device designed for HVAC systems. This unit operates at a voltage of one hundred twenty, two hundred eight, or two hundred forty VAC. It features a flare nut connection of one-fourth inch.

• Contact configuration: Single Pole Single Throw (SPST)
• Low pressure range: twelve inches of mercury to eighty pounds per square inch
• High pressure range: one hundred to five hundred pounds per square inch

Product Highlights

This pressure control can manage loads up to two horsepower at one hundred twenty VAC and three horsepower at two hundred eight or two hundred forty VAC.

Product Information

Standard Information

• Brand: PENN by Johnson Controls
• Contact Rating: Full Load 24 A at 120 VAC, 18.7 A at 208 VAC, 17 A at 240 VAC

Technical Specifications

• Locked Rotor: 144 A at 120 VAC, 112.2 A at 208 VAC, 102 A at 240 VAC
• Non-Inductive Rating: 22 A at 120 VAC, 22 A at 208/240 VAC
• Pilot-Duty Rating: 125 VA at 120 - 600 VAC
