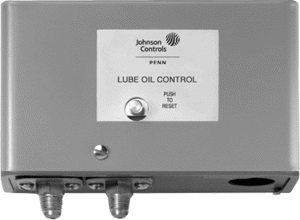

PENN CONTROLS P145NCB-12C Pressure Control Lube Oil Cutout Time Delay 120 Seconds 120/240V

Product Description

The PENN CONTROLS P145NCB-12C serves as a reliable pressure control for lube oil cutout timing. This device operates on a dual voltage of one hundred twenty or two hundred forty volts. It is designed specifically for pressure lubricated refrigeration compressors, ensuring protection against low oil pressure.

• Interchangeable with most Penn P28 controls for easy installation.
• Incorporates a time delay relay to prevent unwanted shutdowns.
• Measures net oil pressure for effective lubrication system management.

Product Highlights

The P145NCB-12C provides essential monitoring for refrigeration compressors. Its built-in features protect against temporary pressure losses and allow for efficient operation.

Product Information

Standard Information

• Brand: PENN by Johnson Controls
• Power: 120/240V

Technical Specifications

• Cutout Time Delay: 120 seconds
• Mounting: Interchangeable with most Penn P28 controls
• Pressure Measurement: Net oil pressure
• Relay: Built-in time delay relay
• Connection Type: 1/4 in. flare nut (Style 13)
• Temperature Compensation: Ambient compensation for consistent time delay
• Protection: Enclosed pressure actuated contacts
• Installation Efficiency: Saves time and materials
