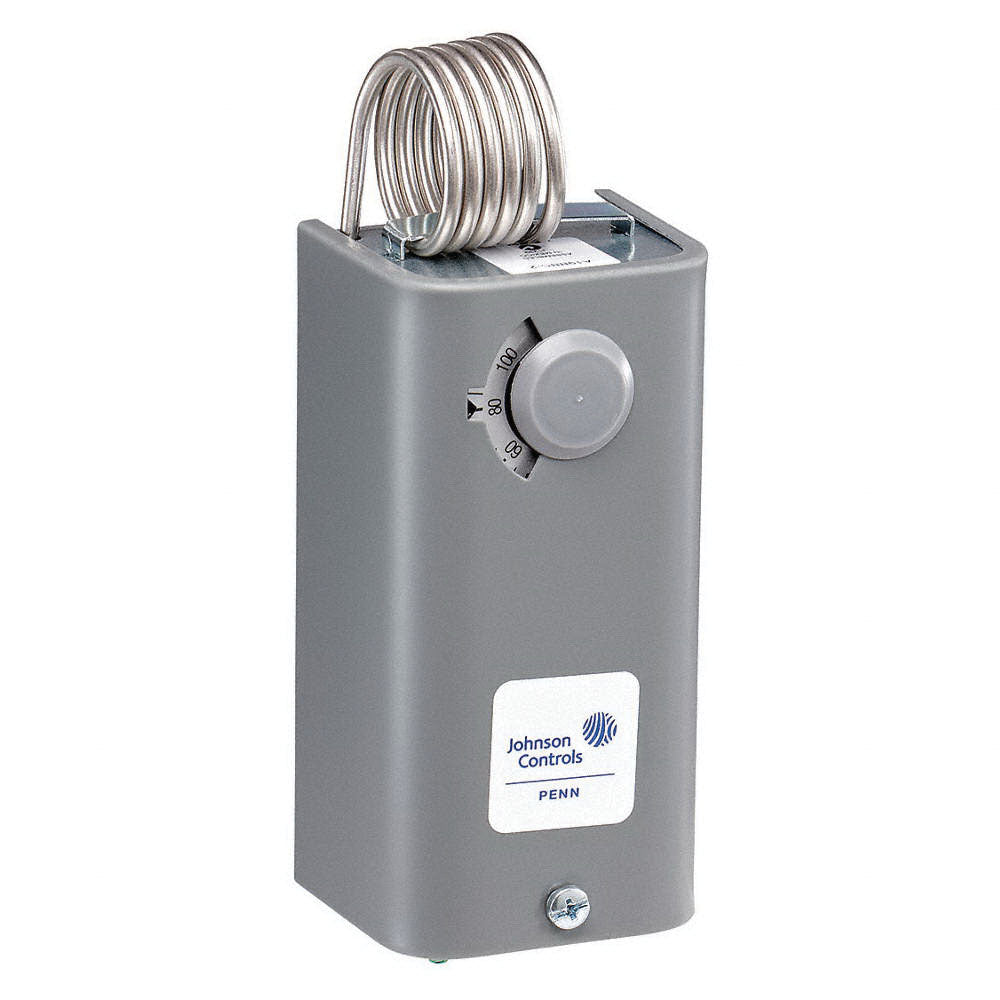

PENN CONTROLS A19BBC-2C Johnson Controls A19 BBC 2C Series Temperature Control

Product Description

PENN CONTROLS A19BBC-2C is a temperature control device designed for a wide range of applications. This model operates at 16 A at 120 VAC and 8 A at 240 VAC, making it suitable for various environments. It features an SPDT configuration with an open/close switching action on rise. This control can accommodate temperatures from -30 to 100 degrees Fahrenheit, ensuring effective operation in diverse conditions.

• Temperature settings from -30 to 100 degrees Fahrenheit
• SPDT configuration for versatile switching
• Flat surface mounting with a galvanized steel enclosure

Product Highlights

Ideal for HVAC applications, the A19BBC-2C provides reliable temperature control with air coil sensing, ensuring accuracy within +/- 2 degrees Fahrenheit.

Product Information

Standard Information

• Brand: PENN CONTROLS
• Series: A19

Technical Specifications

• Amperage Rating: 16 A at 120 VAC, 8 A at 240 VAC Full Load
• Contact Rating: 16 A Full Load and 96 A Locked Rotor at 120 VAC
• Configuration: SPDT
• Differential Temperature: 3 - 12 degrees Fahrenheit
• Enclosure Type: NEMA 1
• Height: 4-3/8 inches
• Length: 2-1/8 inches
• Material: Galvanized Steel
• Number of Switches: 1
• Sensing Element: Air Coil
• Temperature Rating: 140 degrees Fahrenheit
• Voltage Rating: 120 - 277 VAC
• Width: 1-13/16 inches
