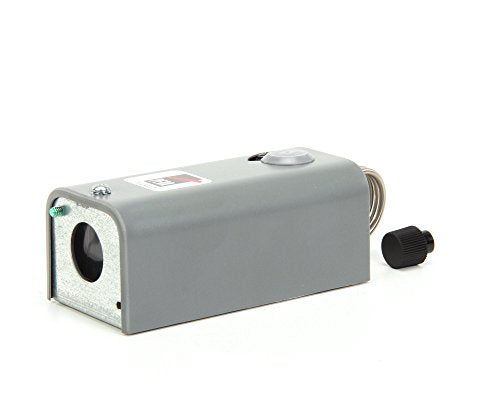

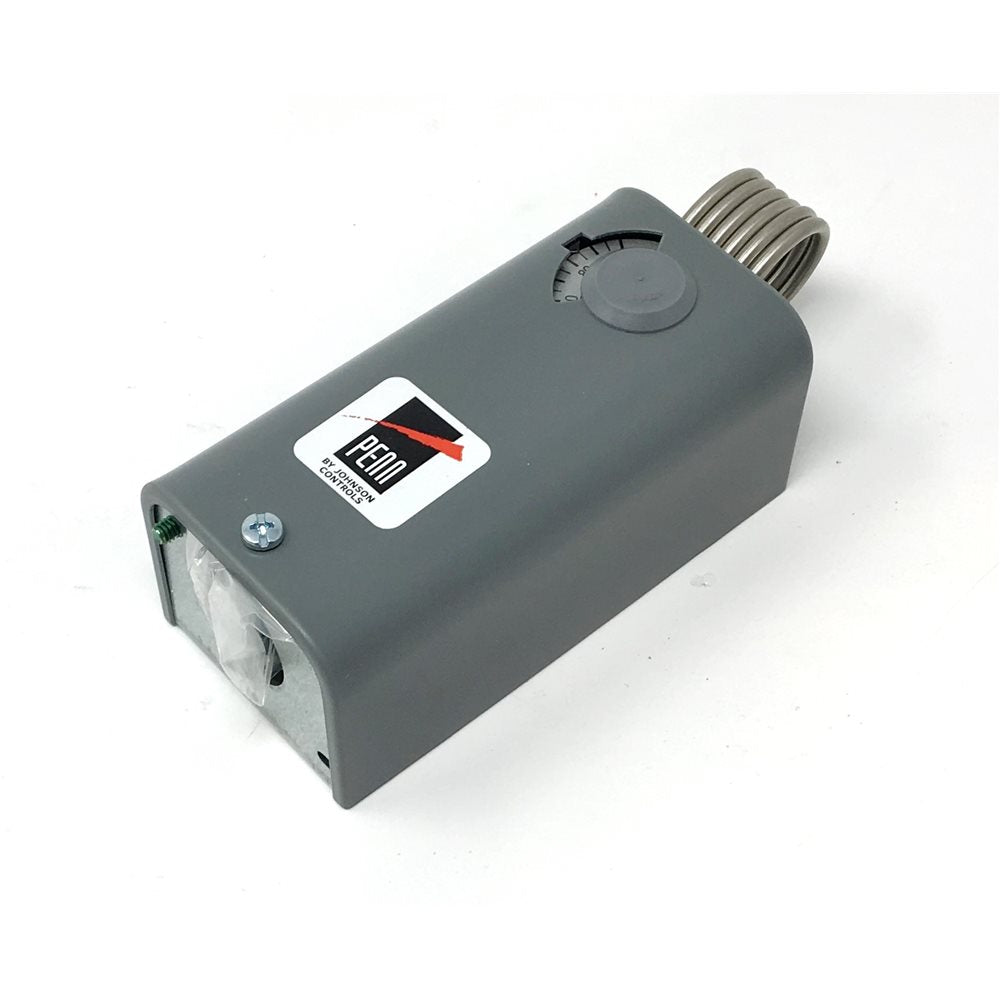

Penn A19BBC-2C Coiled Bulb Space Thermostat

Product Description

The Penn A19BBC-2C is a coiled bulb space thermostat designed for return air and space temperature sensing, as well as cooling applications. It features a SPDT switch type and a temperature rating of -30 to 100 Deg F. The thermostat is a wide range temperature control with an air coil sensing element.

• Wide range temperature control
• Air coil sensing element
• SPDT switch type

Product Highlights

This Penn thermostat is designed for temperature control in HVAC/R systems, featuring a coiled bulb sensor and SPDT switch.

Product Information

Standard Information

• Brand: PENN
• Manufacturer Part Number: A19BBC-2C
• Country of Origin: MX

Technical Specifications

• CATALOG NUMBER: A19BBC-2C
• Category: HVAC/R & Fans
• Current Rating: 16 Amp at 120 Volt, 9.2 Amp at 208 Volt, 8 Amp at 240 Volt
• Power Rating: 125 Volt Amp
• Switch Type: SPDT
• Temperature Rating: -30 to 100 Deg F
• Bulb Type: 1-3/8 Inch x 2-1/4 Inch Coiled
• Range Adjuster Type: Convertible
• Maximum Bulb Temperature: 140 Deg F
• Material: Cold Rolled Steel (Case/Cover)
• Enclosure Type: NEMA 1
• Application: Return Air/Space Temperature Sensing, Cooling
• Manufacturer Name: Penn
• Manufacturer Part Number: A19BBC-2C
• Series: A19
• Voltage Rating: 120/208/240 Volt AC
• Sensor Type: Capillary
• Amperage Rating: 16 A at 120 VAC, 9.2 A at 208 VAC, 8 A at 240 VAC Full Load
• Capillary Length: 2-1/4 in
• Switching Action: SPDT
• Sensing Type: Coil Sensing Element
• Relay Outputs: 1 SPDT
• Setpoint Range: -30 to 100 F
• Max Temperature: 140 F
• Differential Temperature: 3.5 F
• Voltage: 120 to 240 VAC
• Country of Origin: MX
