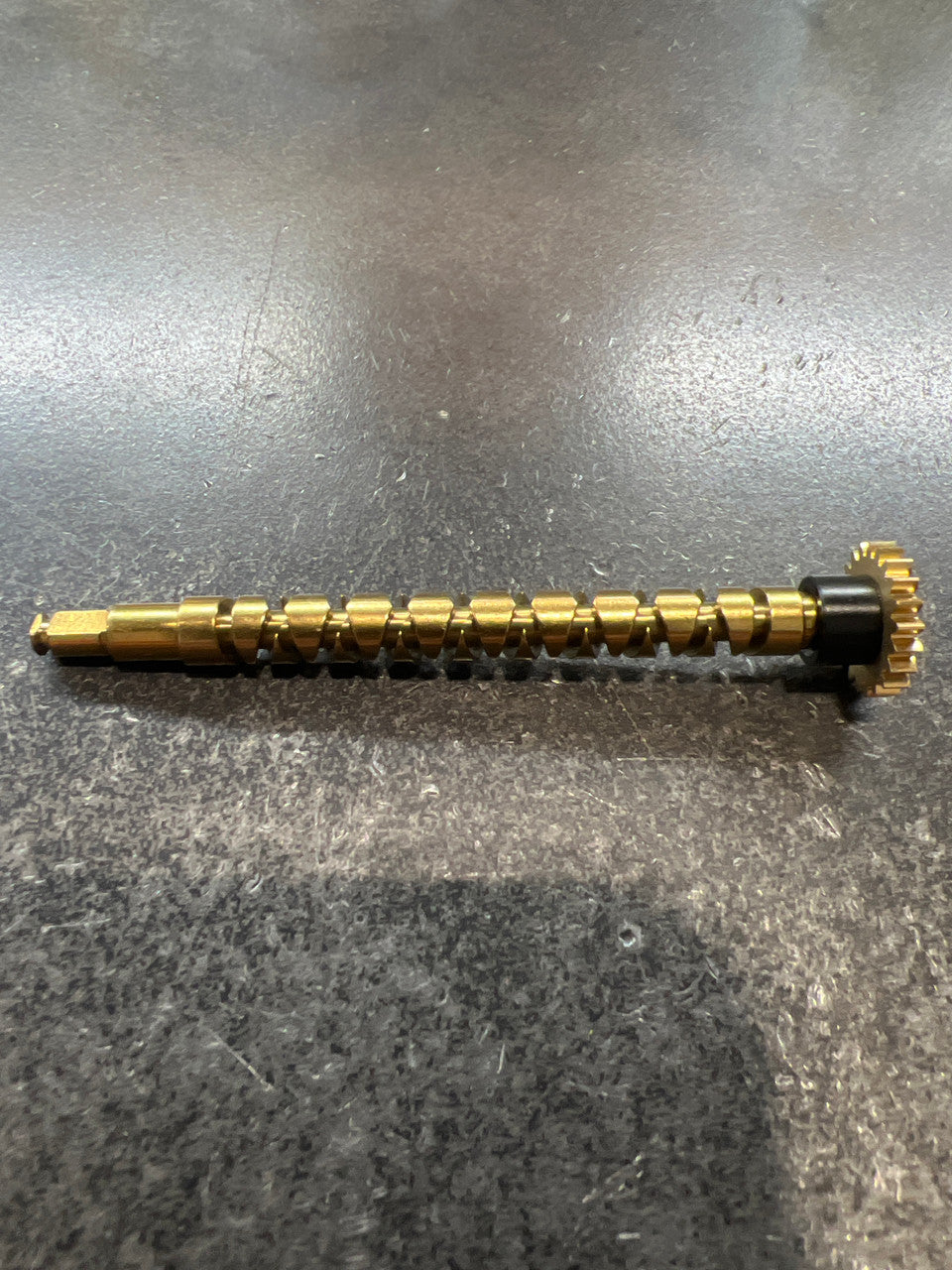

Penn 1488751 Worm Shaft Assembly

Product Description

The PENN 1488751 is a worm shaft assembly designed as an internal drive component for compatible PENN reels. The worm shaft is a core mechanical part responsible for converting rotational motion into the oscillating movement that drives the spool during retrieve. This type of assembly is typically installed by fishing tackle technicians or experienced anglers performing reel maintenance and rebuild work. Proper fit and alignment of the worm shaft are critical to smooth spool oscillation and overall reel performance.

This assembly is suited for reel servicing and repair applications where the original worm shaft has worn, bent, or otherwise failed. It is intended for use in the specific PENN reel model or models for which it was originally manufactured. Reel repair technicians and authorized service centers are the primary installers of this component during scheduled maintenance or damage-driven rebuilds.

Key Features

• OEM-specification worm shaft assembly for direct replacement
• Engineered to restore proper spool oscillation during retrieve
• Designed for precise fit within compatible PENN reel gear housings
• Suitable for reel rebuild and preventive maintenance applications

Compatibility

Designed as an OEM-style replacement worm shaft assembly for compatible PENN reel models. Refer to the PENN parts diagram for your specific reel model to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified reel technician or an experienced angler with mechanical aptitude. Fully disassemble the reel and remove all tension from the drag system before servicing internal components. Clean the gear housing and inspect related components such as the oscillating gear and spool shaft for wear before installing the replacement worm shaft. Reassemble per the manufacturer service diagram to ensure correct alignment and function.

Technical Specifications

• Component Type: Worm Shaft Assembly

Standard Information

• Brand: PENN
• Manufacturer Part Number: 1488751
