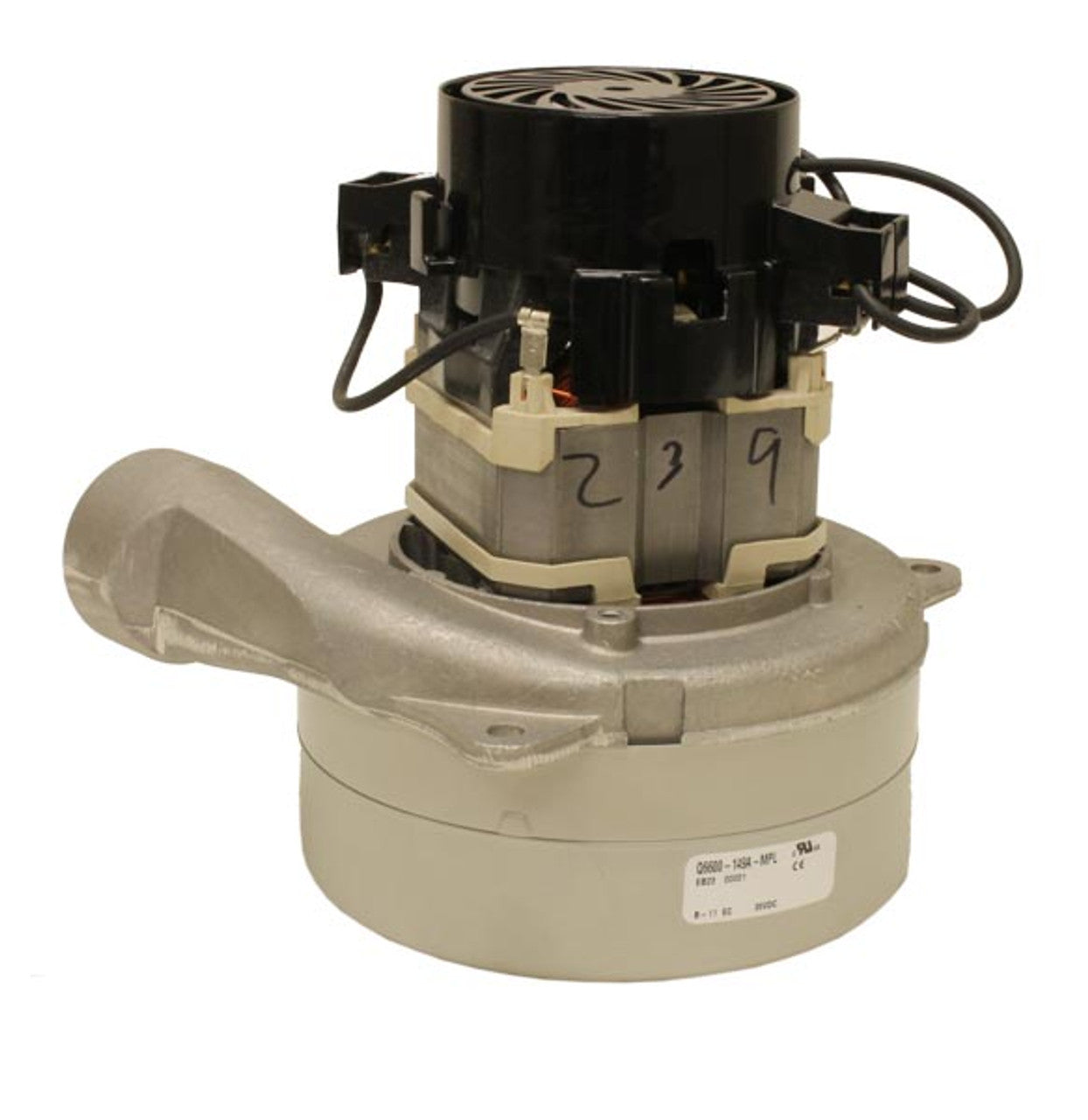

PEMS Q6600149AMPL Q6600-149A-MPL Vacuum Motor 36V

Specifications:
36 Volt
2 Stage
71 CFM @ 2 Orfice
51 Sealed H20 Vacuum
118 Max Air Watts
10.9 Max Amps
7.09 Overall Height
BPT Type (Bypass Tangential)

NOTE: Bypass Tangential (BPT). Same as Peripheral bypass with two airflow systems except the working filtered air exhaust exits through the tangential horn integral to the 3 lugged motor mounting bracket.

CROSS REFERENCES: 116158-01, Q6600149AMPL, 119434-13, 56395875, 56395882, 8.601-221.0, 4M932
