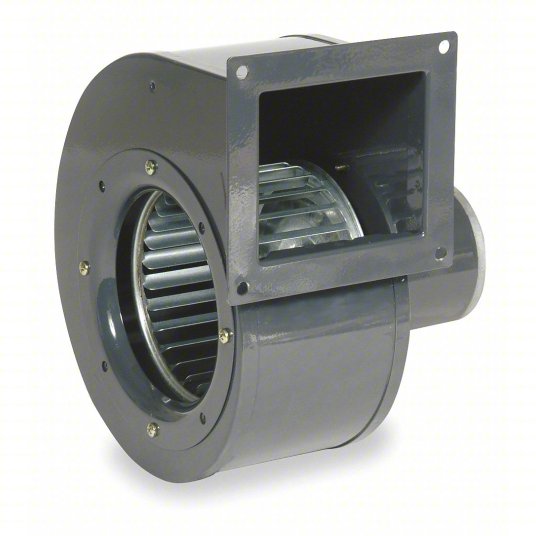

PEMS PTDR3 OEM Blower Assembly 1/20 HP 224 CFM

Product Description

The PEMS PTDR3 OEM Blower Assembly operates at one-twentieth horsepower with a maximum airflow of two hundred twenty-four cubic feet per minute at a voltage of one hundred fifteen volts. This unit is designed for continuous duty and features a PSC electrical type, making it suitable for various applications.

• Ball bearings ensure long-lasting performance.
• Operates with minimal noise and vibration.
• Galvanized steel construction provides durability.

Product Highlights

The blower’s design promotes better heat dissipation with cast-aluminum end shields, reducing downtime and extending the service life. It functions effectively in various positions while maintaining high CFM at increased static pressures.

Product Information

Standard Information

• Duty Cycle: Continuous
• Voltage: 115 V

Technical Specifications

• HP: 1/20
• Amperage: 0.77 A
• CFM: 224
• RPM: 1640
• Rotation: CW
• Enclosure: ODP
• Frequency: 50/60 Hz
• Wheel Diameter: 5 1/8 inches
• Wheel Width: 5 5/16 inches
• Shaft Diameter: 8 mm
• Inlet Diameter: 4 5/8 inches
• Outlet Shape: Rectangular Flanged
• Outlet Height: 3 5/8 inches
• Outlet Width: 4 1/8 inches
