Pemko 315CN36 Door Bottom Sweep 36 in Neoprene Clear Aluminum

Product Description

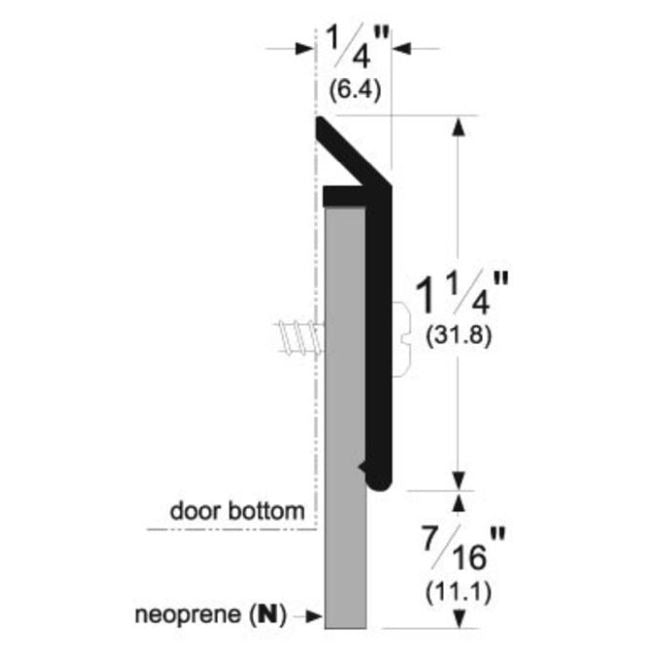

The PEMKO 315CN36 is a door bottom sweep designed to seal the gap between the bottom of a door and the threshold or floor surface. It mounts directly to the face of the door bottom and uses a 7/16-inch neoprene insert to block drafts, dust, light, and moisture infiltration. The body is finished in clear aluminum, providing corrosion resistance suitable for both interior and exterior door applications. This sweep covers a 36-inch door width and is installed by licensed contractors, carpenters, or facility maintenance professionals working on commercial or residential entry doors.

The 315CN36 is suited for commercial and residential applications where perimeter sealing is required at the door bottom. Typical install scenarios include exterior entry doors, corridor doors, and utility room doors where weather resistance, draft control, or basic smoke and dust separation is needed. The clear aluminum finish blends with standard aluminum door frames and hardware. It is commonly specified on new construction and retrofit projects where an unobtrusive, low-profile door bottom solution is required.

Key Features

• 7/16-inch neoprene seal insert blocks drafts, dust, light, and moisture at the door bottom
• Clear aluminum extrusion body resists corrosion in interior and exterior environments
• 36-inch length fits standard single door widths with trim-to-fit flexibility
• Surface-mount design installs directly to the door face without mortising
• Low-profile construction minimizes interference with floor surfaces and transitions

Compatibility

Designed as an OEM-style replacement or new-installation door bottom sweep for standard 36-inch residential and commercial doors requiring a surface-mounted neoprene sealing solution.

Installation Notes

Installation is performed by carpenters, glaziers, or general contractors using standard hand tools. The door should be removed or secured in the open position before fastening the sweep to the door bottom face. The neoprene insert should make consistent light contact with the threshold or floor without binding door operation. Local building codes and fire-rated door assembly requirements should be consulted when installing on rated door assemblies.
