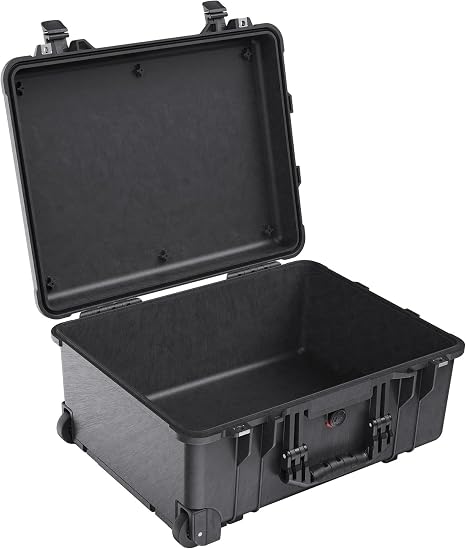

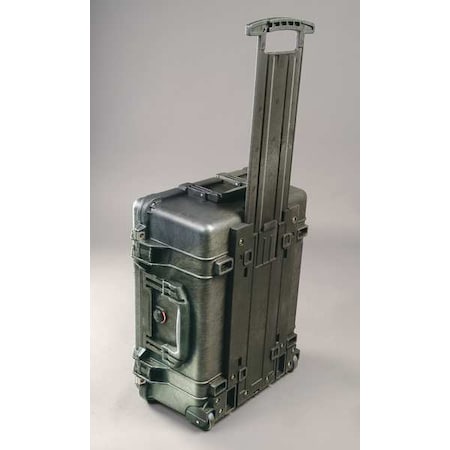

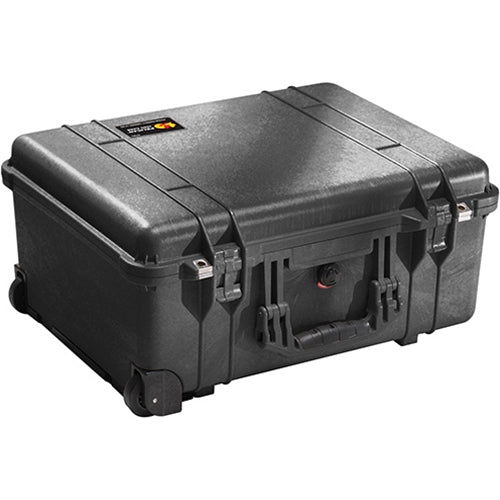

Pelican 1560-001-110 is a large protector case designed to safeguard equipment in demanding environments. The polypropylene shell includes an O-ring seal, automatic pressure equalization valve, stainless steel hardware and padlock protectors, and polyurethane wheels with stainless steel bearings. The case is watertight, crushproof, and dustproof, offers interior dimensions of 19.92 x 14.98 x 9.00 inches and 1.55 cubic feet of volume, and operates from -40�F to 210�F.
Watertight, crushproof, and dustproof protection with O-ring seal and automatic pressure equalization valve
Exterior 22.07 x 17.92 x 10.42 in; interior 19.92 x 14.98 x 9.00 in; internal volume 1.55 ft^3; load capacity 104 lb
Polypropylene body with ABS latch components, stainless steel hardware and padlock protectors, polyurethane wheels and retractable extension handle; no foam included for this SKU
Product Highlights
Wheeled, watertight protector case with O-ring seal, pressure equalization valve, 1.55 cu ft internal volume, and temperature rating -40�F to 210�F
Product Information
Standard Information
Brand: PELICAN
Manufacturer Part Number: 1560-001-110
Country of Origin: United States
Technical Specifications
Brand
Pelican
Manufacturer Part Number
1560-001-110
Model
1560
Product Type
Protective case / protector case
Material
Polypropylene body; ABS latch and purge body; polyurethane wheels; stainless steel hardware and padlock protectors
External Dimensions
22.07 in L x 17.92 in W x 10.42 in H
Internal Dimensions
19.92 in L x 14.98 in W x 9.00 in H
Volume Capacity
1.55 ft^3
Load Capacity
104 lb
Weight
17 lb
Operating Temperature (Min)
-40 �F
Operating Temperature (Max)
210 �F
Resistance
Watertight; Crush; Dust
IP Rating
IP67
Seal
O-ring seal (0.25 in neoprene listed for some variants)
Valve
Automatic pressure equalization valve
Foam Insert
No foam included (Pick N Pluck foam available as option)
Wheels
Polyurethane wheels with stainless steel bearings
Handle
Rubber over-molded top and side handles; retractable extension (telescoping) handle
