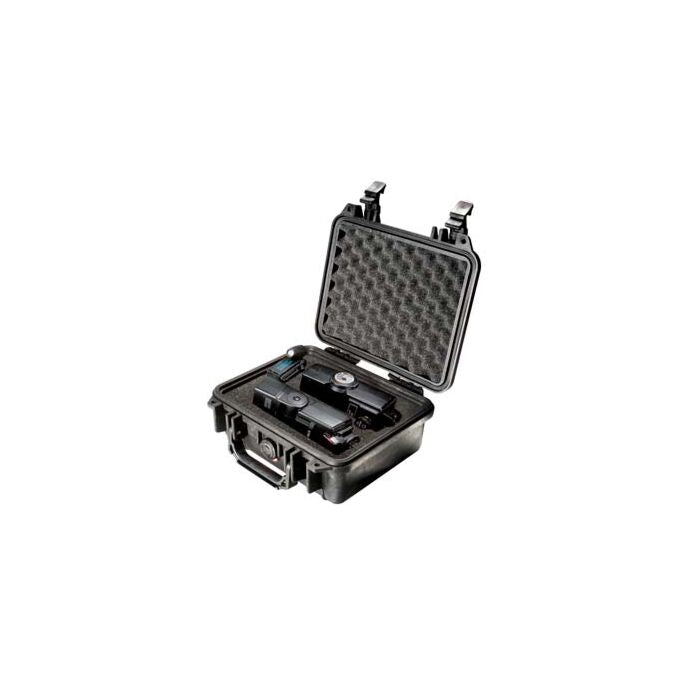

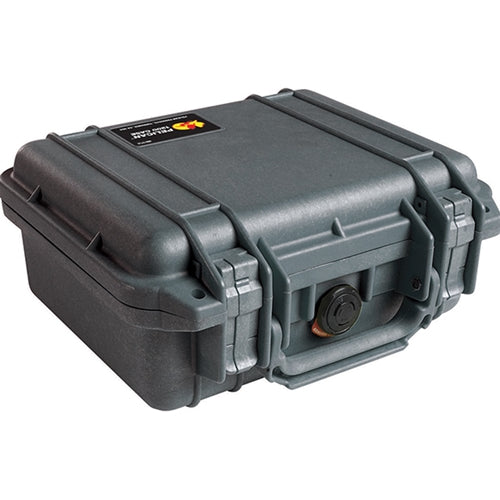

Pelican 1200-000-190 Protector Case Series Small Case 10.62 in L x 9.68 in W x 4.87 in D

Product Description

The PELICAN 1200-000-190 Protector Case Series Small Case is a durable storage solution constructed from Ultra High Impact structural copolymer, designed for equipment protection. It features an open cell core with a solid wall design, providing strength and light weight. The case is watertight, airtight, dustproof, chemical resistant, and corrosion proof, ensuring total protection against impact, vibration, and shock. It includes an automatic purge valve for pressure equalization and a neoprene O-ring seal.

• Open cell core with solid wall design provides strength and light weight
• Designed with an automatic purge valve that equalizes air pressure
• Features a watertight silicone O-ring lid

Product Highlights

Unbreakable, watertight, airtight, dustproof, chemical resistant, and corrosion proof with a strong, lightweight design.

Product Information

Standard Information

• Brand: PELICAN
• Manufacturer Part Number: 1200-000-190
• Country of Origin: US

Technical Specifications

• MPN: 1200-000-190
• Family: Pelican Protector Case Series Small Cases
• Manufacturer: Pelican
• Brand: Pelican
• Classification: Storage Containers
• Product Type: Protective Case
• Capacity Volume: 0.16 ft
• External Length: 10.62 in
• External Width: 9.68 in
• External Height: 4.87 in
• Interior Length: 9.25 in
• Interior Width: 7.12 in
• Interior Height: 4.12 in
• Body Material: Polypropylene
• O-Ring Material: Polymer
• Latch Body Material: ABS
• Pin Material: Stainless Steel
• Maximum Operating Temperature: 210 F
• Minimum Operating Temperature: -40 F
• Resistance Features: Water, Dust, Crush
• Case Type: 1200 WF/WL
• Latch Type: Double Throw
• Wheels: No Wheels
• Foam Included: Yes
• Mobility: Stationary
• Lid Depth: 1 1/4 in
• Certifications: DEF STAN 81-41, STANAG 4280, IP67 (1 meter submersion for 30 minutes)
• Foam Style: Pick and Pack
• Application: Military
• Foam Design: Flat, Pick and Pluck, Solid
• Bottom Depth: 3 in
• Handle Style: Folding
• Weight Capacity: 10 lb
• IP Rating: IP67
• Number of Latches: 2
• Purge Valve Type: Automatic
• Weight (with foam): 2.87 lbs.
• Weight (without foam): 2.65 lbs.
• Buoyancy: 12.02 lbs.

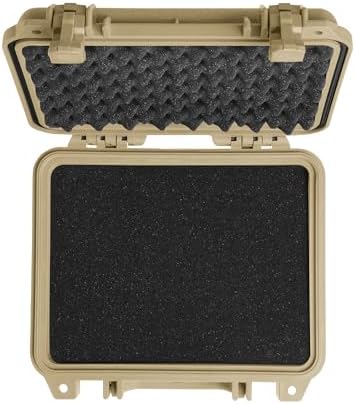

• Interior Foam Details: Three-piece foam set interior (1 convoluted foam upper section, 1 Pick 'N Pluck foam section, 1.0 inch thick blank bottom foam section)
• O-Ring Type: 0.25 inch (6.4mm) neoprene o-ring
• Carry/Transport Options: Handle
• Camera Compatibility: Universal
• ATA Compliant: No
• Security Lock: Accepts Padlock (Not Included)
• Number of Compartments: 1
• Style Name: Single
• Pattern: Solid
