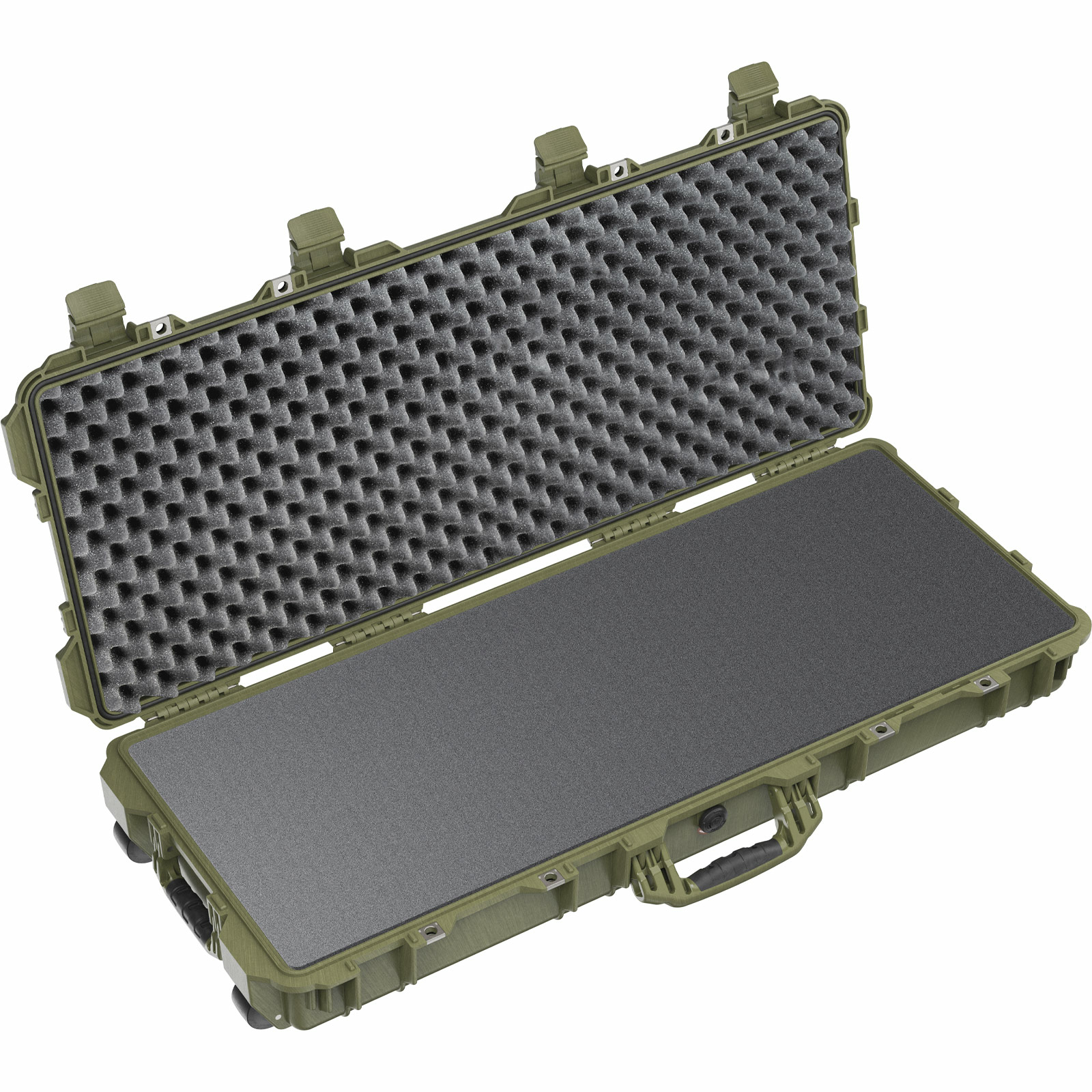

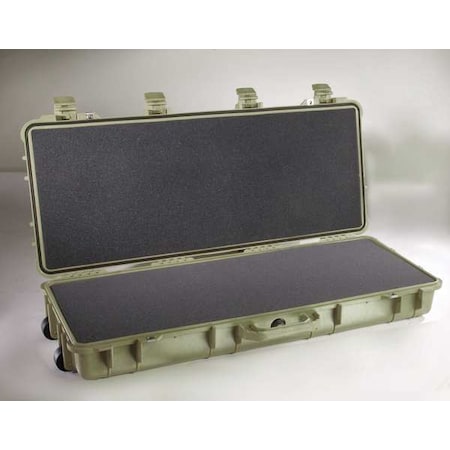

Pelican 017000-0000-130 1700 Long Case With Foam 38.12 x 16 x 6.12 in

Product Description

The Pelican 017000-0000-130 is a 1700-series protective rolling case that provides watertight, crushproof, and dustproof protection and includes a layered solid foam insert. It features four double-throw latches, an automatic pressure equalization valve, a polymer O-ring seal, two polyurethane wheels with stainless steel bearings, a folding handle, and stainless steel hardware. Internal dimensions are 35 3/4 in x 13 1/2 in x 5 1/4 in; overall dimensions are 38 1/8 in x 16 in x 6 1/8 in. The case is rated IP67 and for temperatures from -40 Degrees F to 210 Degrees F.

• Watertight IP67 construction with polymer O-ring and automatic pressure equalization valve
• Layered solid polyurethane foam insert; inside dimensions 35 3/4 in x 13 1/2 in x 5 1/4 in
• Mobile rolling design with two polyurethane wheels (stainless steel bearings), fold-down handle, and four double-throw latches

Product Highlights

IP67 watertight and crushproof case with layered solid foam; overall 38 1/8 x 16 x 6 1/8 in; 136 lb load capacity; temperature range -40 to 210 Degrees F.

Product Information

Standard Information

• Brand: PELICAN
• Manufacturer Part Number: 017000-0000-130
• Country of Origin: United States

Technical Specifications

• Brand: Pelican
• MPN: 017000-0000-130
• Series: 1700
• Product Type: Protective Case (Rolling Case)
• Material: Plastic (polymer)
• Body Material: Plastic
• Foam Design: Layered solid foam
• Foam Material: Polyurethane
• Foam Insert: Foam Included
• Includes: (2) Polyurethane Wheels with Stainless Steel Bearings; Automatic Pressure Equalization Valve; Fold-Down Handle; Layered Solid Foam; O-Ring Seal; Stainless Steel Hardware and Padlock Protectors
• Number of Wheels: 2
• Wheel Material: Polyurethane
• Wheel Bearings: Stainless Steel
• Number of Latches: 4
• Latch Type: Double-Throw
• Handle Style: Folding
• Mobility: Mobile (rolling)
• Pressure Valve Type: Automatic
• O-Ring Seal: Polymer
• IP/NEMA Rating: IP67
• Resistant To: Crush, Dust, Water
• Inside Length: 35 3/4 in
• Inside Width: 13 1/2 in
• Inside Depth: 5 1/4 in
• Inside WxLxD: 13 1/2 in x 35 3/4 in x 5 1/4 in
• Overall Length: 38 1/8 in
• Overall Width: 16 in
• Overall Depth: 6 1/8 in
• Volume Capacity: 1.47 cu ft
• Weight: 16.85 lb
• Weight Capacity: 136 lb
• Padlock Hole Diameter: 5/16 in
• Standards: DEF STAN 81-41; MIL C-4150J; STANAG 4280
• Max. Temp. Rating: 210 Degrees F
• Min. Temp. Rating: -40 Degrees F
• Country of Origin: United States
