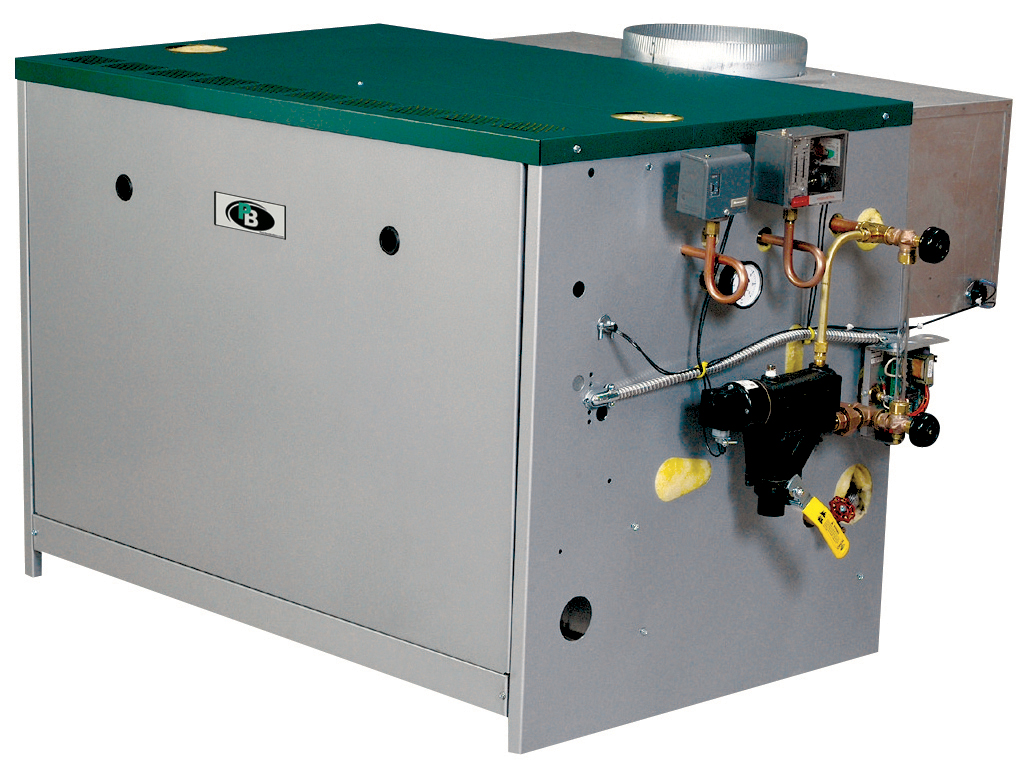

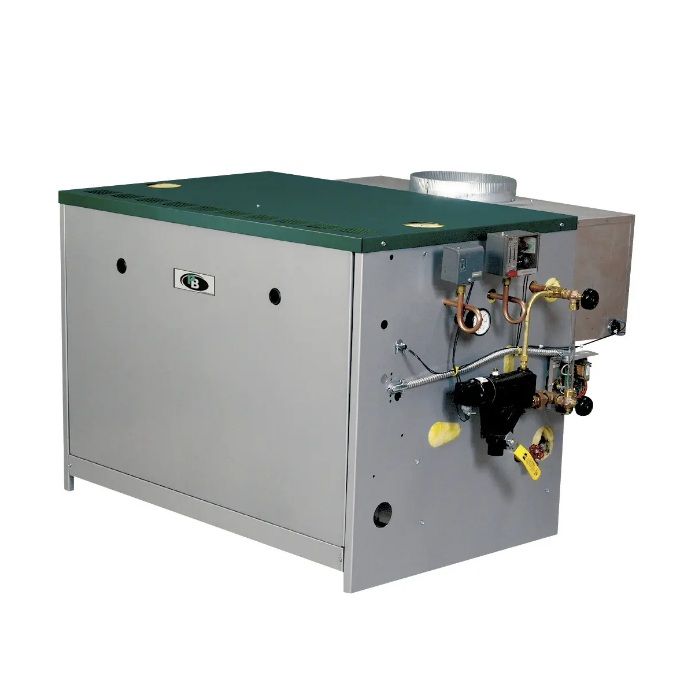

Peerless Boilers 6411004 64 Series 575 Input MBtu Natural Gas Steam Boiler (Knockdown)

Product Description

The PEERLESS BOILERS 6411004 is a gas-fired, cast iron Series 64 atmospheric steam or hot water boiler with up to 83% combustion efficiency. This commercial boiler features an integral draft diverter for space constraints and large boiler sections with high water content for superior performance. It has 575,000 BTU input and natural draft chimney venting.

• Packaged or Knockdown Steam Boilers
• Cast Iron Sections - Factory Tested & Assembled (3-5 sections) or Split-Assembled (6-12 sections)
• Large Water Content - Ideal for Steam and Large Volume Hot Water Applications

Product Highlights

The Peerless 6411004 boiler is ideal for commercial applications needing a reliable and efficient natural gas steam boiler. Features include skim tapping for cleaning steam boilers, a pre-assembled burner tray, and standard safety controls.

Product Information

Standard Information

• Brand: PEERLESS BOILERS
• Manufacturer Part Number: 6411004
• Country of Origin: United States

Technical Specifications

• MPN: 6411004
• Manufacturer: Peerless Boilers
• Series: 64 Series
• Item Type: Boiler
• BTU Input: 575000
• AFUE: 83%
• Material: Cast Iron
• Boiler Type: Commercial
• Fuel Type: Natural Gas
• Venting Type: Natural Draft
• Venting: Natural Draft
• Gas Type: Natural gas
• Input Capacity: 575,000 Btu/hr
• Type: Steam
• Heat Exchanger Material: Cast Iron
• BTU Output: 459000
• Domestic Hot Water: No
• Vent Type: Atmospheric Vent
• Building Type: Commercial, Residential
• Length (inches): 45.125
• Width (inches): 50.125
• Height of Boiler (inches): 36.375
• Vent Material: Galvanized, B-Vent
• Supply: Male Iron Pipe 3
• Return: Female Iron Pipe 2 1/2
• Gas Connection (inches): 3/4
• Square Feet of Steam: 1433
• Vent Size (inches): 12
• Net BTU: 344000
• Approximate Weight (pounds): 1490
• Country of Origin: United States
