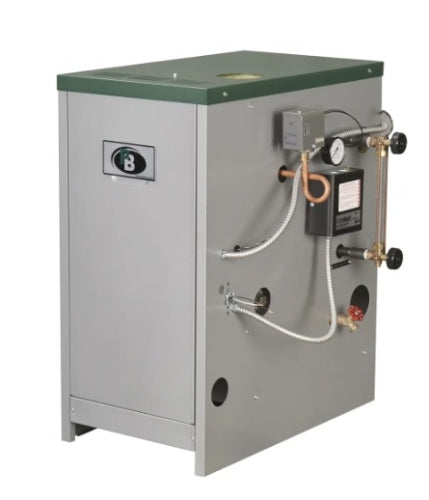

Peerless Boilers 6304025 Gas Steam Boiler 177000 Btu/h

Product Description

The PEERLESS BOILERS 6304025 is a knock-down natural gas steam boiler rated at 177,000 BTU/h. It ships in knock-down configuration for field assembly, making it suitable for installations where access constraints prevent moving a fully assembled unit. The boiler uses spark ignition and includes a damper, compatible with the PA404 and CG450P controls as specified. At 576 pounds, this is a commercial-weight unit intended for professional installation by licensed heating contractors working on steam heating systems in residential or light commercial applications.

This boiler is designed for natural gas-fired steam heating systems. The knock-down configuration is commonly used in basement or mechanical room installs where doorways or stairwells limit the size of equipment that can be moved in one piece. Spark ignition eliminates the need for a standing pilot, reducing fuel consumption during off-cycle periods. Licensed heating contractors and plumbers with steam system experience are the primary installers of this equipment.

Key Features

• 177,000 BTU/h heat rating for natural gas steam heating applications
• Knock-down configuration for access-restricted installation sites
• Spark ignition eliminates standing pilot light
• Includes damper for flue control
• Compatible with PA404 and CG450P controls as specified by manufacturer

Compatibility

Designed as an OEM-style replacement or new-installation steam boiler for natural gas-fired residential and light commercial steam heating systems. Compatible controls referenced in product data include the PA404 and CG450P.

Installation Notes

Installation must be performed by a licensed heating contractor or qualified plumber familiar with steam boiler systems and applicable local codes. Shut off gas supply and disconnect electrical power before servicing any connected components. Knock-down units require careful field assembly per manufacturer instructions before commissioning. Steam boiler installations must comply with ASME Boiler and Pressure Vessel Code requirements and local mechanical codes, and should include proper pressure relief valve sizing and low-water cutoff protection.

Technical Specifications

• Boiler Type: Steam Boiler
• Fuel Type: Natural Gas
• Heat Rating: 177,000 BTU/h
• Ignition Type: Spark Ignition
• Configuration: Knock Down
• Weight: 576 pounds

Standard Information

• Brand: PEERLESS BOILERS
• Manufacturer Part Number: 6304025
