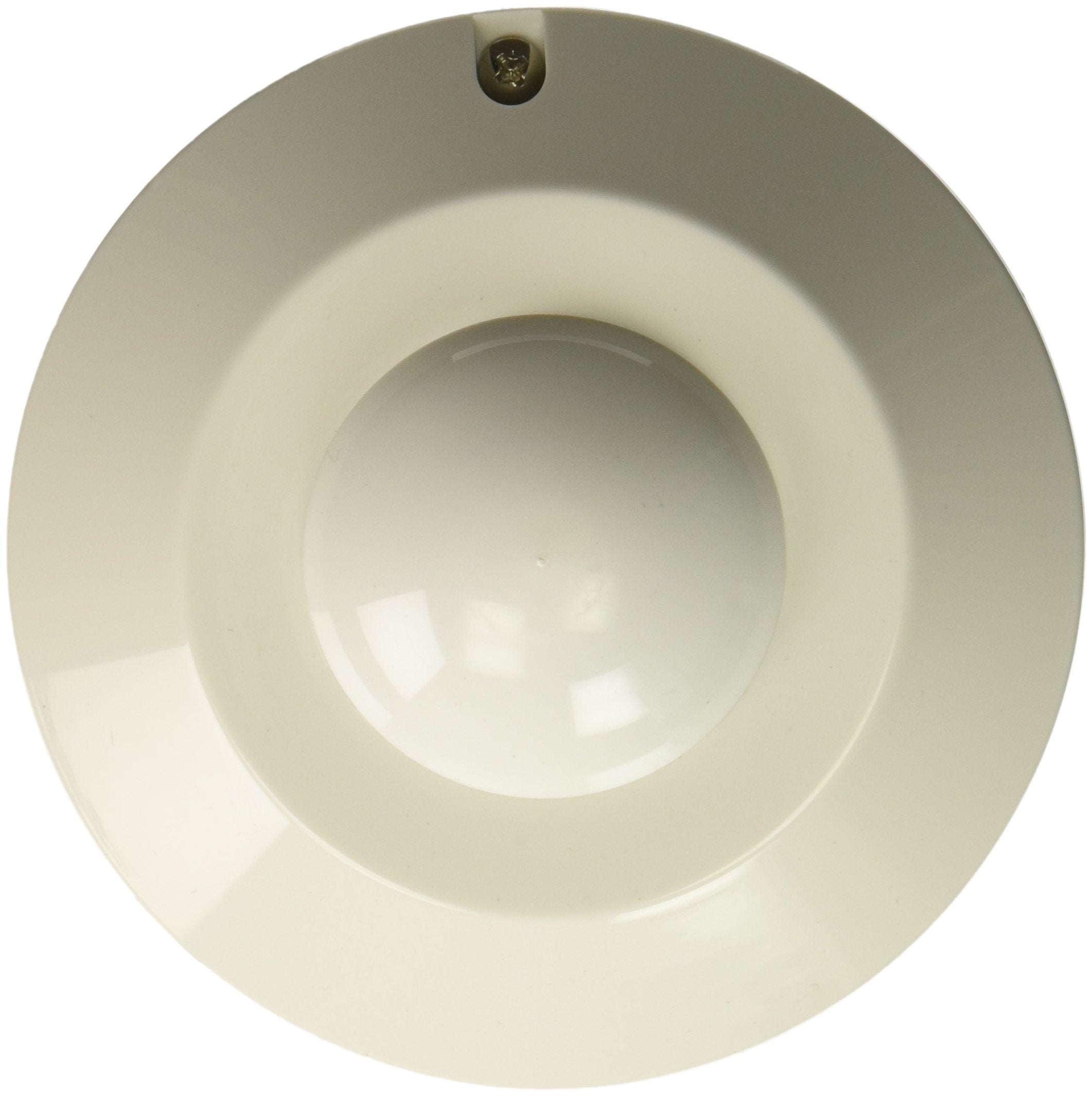

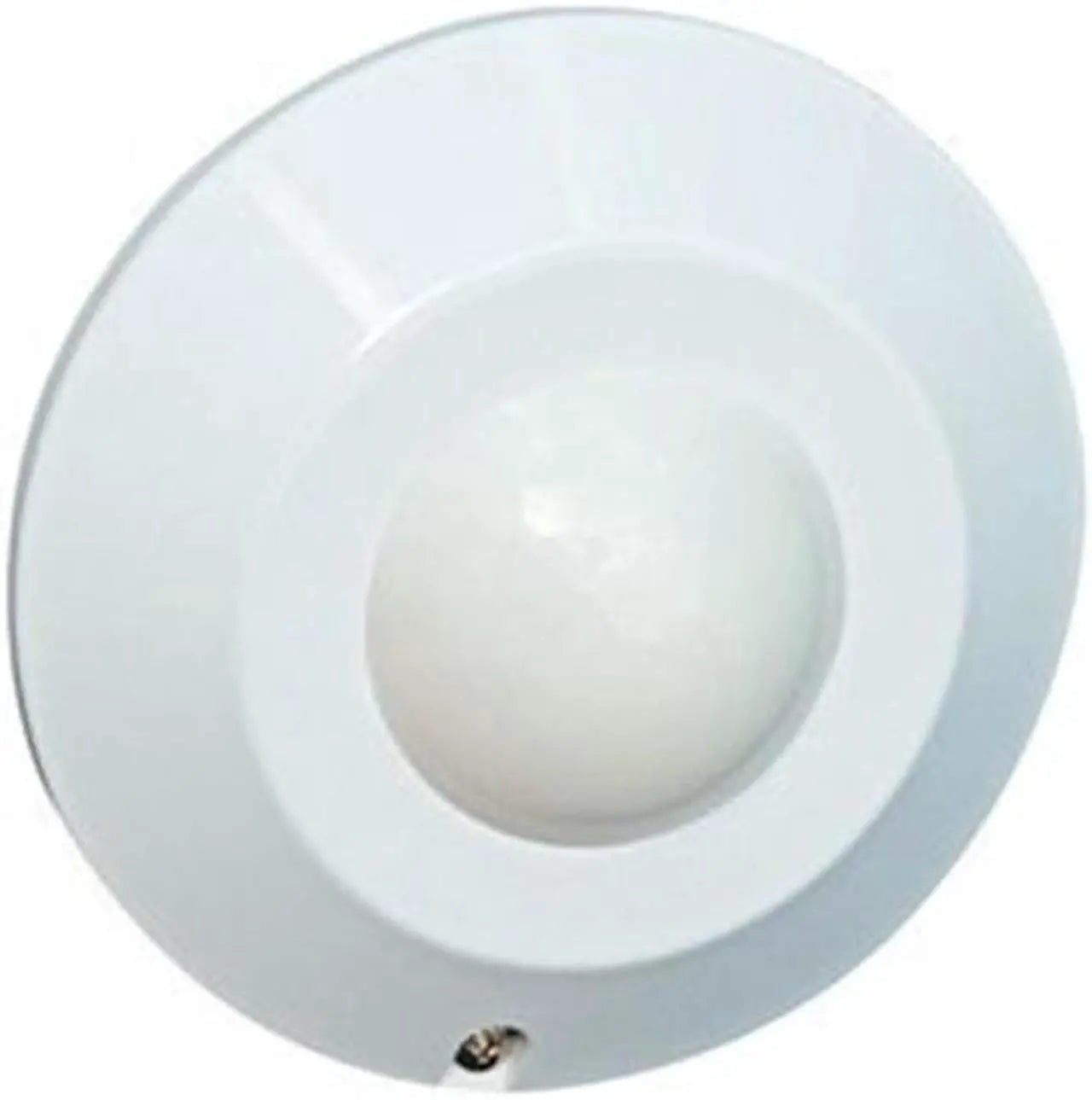

Peco SA200-001 Ceiling Mounted Occupancy Sensor 24 Vac (360-Degree)

Product Description

The Peco SA200-001 is a ceiling-mounted occupancy sensor that provides a 360-degree detection pattern and operates on 24 Vac/Vdc. It uses passive infrared sensing to detect motion for occupancy verification and energy-control integration with PECO thermostats such as the T170 and T180. The sensor supports hardwired connection with a 49 ft cable, mounting heights from 7.9 to 13.8 ft, and adjustable on/off time delays.

• Passive infrared (PIR) sensor with 360-degree detection and coverage up to 3,000 sq ft
• Hardwired operation at 24 Vac/Vdc with 49 ft cable and ceiling-mount installation (7.9 to 13.8 ft)
• Adjustable on/off delay settings (on delay 0 sec to 10 min; off delay options up to 30 min)

Product Highlights

Ceiling-mounted PIR occupancy sensor, 24 Vac/Vdc hardwired power, 360-degree detection pattern, adjustable time delays, compatible with PECO T170/T180 controllers

Product Information

Standard Information

• Brand: PECO
• Manufacturer Part Number: SA200-001
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: PECO
• Manufacturer Part Number: SA200-001
• Model / MPN: SA200-001
• Product Type: Ceiling mount occupancy/motion sensor
• Sensor Type: Passive Infrared (PIR)
• Detection Pattern: 360 degrees
• Input Voltage: 24 Vac/Vdc
• Communication Method: Hardwired
• Coverage Area: Up to 3,000 sq ft
• Mounting Type: Ceiling mount
• Mounting Height: 7.9 to 13.8 ft
• Cable Length: 49 ft
• Time Delay (On Delay): 0 sec to 10 min
• Time Delay (Off Delay): 10 sec, 1 min, 5 min, 10 min, 20 min, 30 min
• Dimensions: Diameter 4-1/4 in; Height 1-3/4 in; Overall depth 1-3/4 in
• Overall Width: 4 5/16 in
• Operating Temperature: -4 to 100 Degrees F
• Sensor Shape: Round
• Application: Motion / Occupancy verification
• Compatibility: For use with 2NCA6, 2NCA7, 6FFW5, 6FFW8; compatible with PECO T170/T180 controllers
• UPC: 879978000356
• Item Weight (g): 136.0
• Indoor/Outdoor: Indoor
