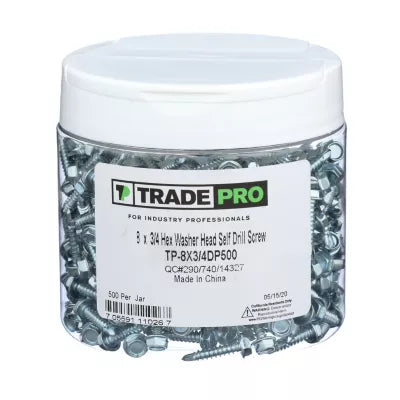

Peco Fasteners tp-8x3/4dp500 Self-drilling Screw 8x3/4

Product Description

The PECO FASTENERS tp-8x3/4dp500 is a No. 8 diameter, 3/4-inch hex washer head self-drilling screw sold in a 500-piece pack. Self-drilling screws drill the hole and tap the threads in a single operation, eliminating the need for a separate pilot hole step. This screw is suited for fastening into heavier-gauge metal substrates and is a standard choice for sheet metal assembly, HVAC ductwork, electrical enclosures, and light structural connections. Installation is handled by sheet metal workers, HVAC technicians, and electricians working with metal framing or enclosure panels.

The tp-8x3/4dp500 is designed for use in heavier-gauge metal applications. The Type 2 point geometry is rated for metal up to 0.100 inches thick. For heavier stock up to 0.175 inches thick, a Type 3 point variant is available. The hex washer head provides a broad bearing surface that resists pull-through and allows drive with a standard hex driver or nut driver, making it practical for high-volume installation with a power tool.

Key Features

• Drills and taps threads in one pass — no pilot hole required
• No. 8 diameter with 3/4-inch length suits thin to medium sheet metal assembly
• Type 2 point rated for metal up to 0.100 inches thick
• Hex washer head provides wide bearing surface and reduces pull-through
• Compatible with standard hex drivers and nut drivers for power-tool installation
• 500-piece pack supports production volume or service truck stocking

Compatibility

Designed as an OEM-style replacement or new-installation fastener for sheet metal assemblies requiring a No. 8 self-drilling screw with a hex washer head drive style.

Installation Notes

Self-drilling screws should be driven with a variable-speed drill or screw gun set to the appropriate clutch setting to avoid stripping the threads on thin-gauge material. Verify metal substrate thickness before selecting point type, as using a Type 2 point on stock exceeding 0.100 inches may result in incomplete thread engagement. Follow applicable sheet metal and mechanical codes, including SMACNA guidelines where HVAC ductwork is involved.

Technical Specifications

• Screw Diameter: No. 8
• Length: 3/4 inches
• Head Style: Hex Washer Head
• Drive Type: Hex
• Point Type: Type 2 (metal up to 0.100 inches thick)
• Quantity: 500 pieces

Standard Information

• Brand: PECO FASTENERS
• Manufacturer Part Number: tp-8x3/4dp500
