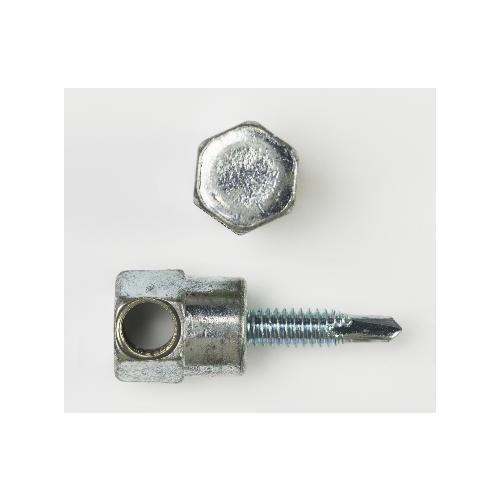

Peco Fastener SSH7184J Vertigo Steel Hanger Side Mount 3/8 Rod 1 Shank

Product Description

The PECO FASTENER SSH7184J Vertigo Steel Hanger Side Mount is a carbon steel threaded fastening system designed for suspending steel threaded rod vertically overhead. This side mount hanger, part of the Vertigo series, features a 3/8-16 UNC thread and a zinc-plated finish, ensuring durability and corrosion resistance. It is suitable for pipe hanging, fire protection, electrical conduit, and cable tray applications, offering secure installation in steel bar joists, beams, wood frames, and concrete structures.

• UL Listed and FM Approved, meeting industry safety and performance standards.
• Constructed from durable carbon steel with a zinc-plated finish for corrosion resistance.
• Designed for lateral installation of 3/8 inch diameter steel threaded rods onto joists, columns, and trusses.

Product Highlights

Vertigo series side mount hanger for 3/8 inch threaded rod, ideal for various overhead suspension applications.

Product Information

Standard Information

• Brand: PECO FASTENER
• Manufacturer Part Number: SSH7184J

Technical Specifications

• Diameter: 3/8 in
• Finish: Zinc Plated
• Material: Carbon Steel
• Series: Vertigo
• Thread Size: 3/8-16
• Thread Type: UNC
• Mounting Type: Side Mount
• Compatible Material: Steel
• Certifications: UL Listed, FM Approved, ASTM B633 SC1 Type III, ICC-ES ESR-2989
