Peco Fastener PC101HWH #10 (5/16 hex) x 1 hex washer head slot/phil combo tapping screw zinc plated 500 count

Product Description

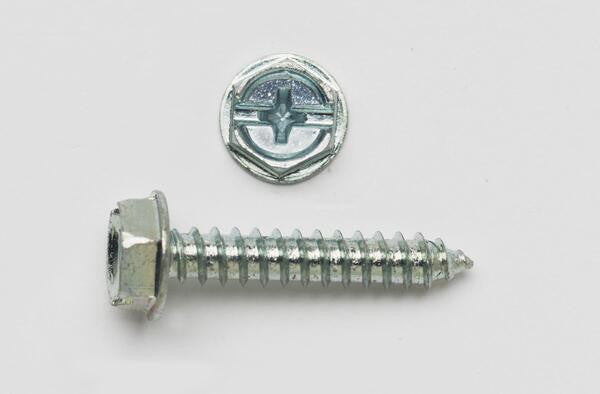

The PECO FASTENER PC101HWH is a #10 (5/16 Hex) x 1 Hex Washer Head Slot/Phil Combo Tapping Screw, zinc plated and supplied in a jar of 500. This heat-treated tapping screw features a hex washer head and a slotted/Phillips drive style, with a nominal diameter of #10 and a length of 1 inch, suitable for various fastening applications.

• Hex Washer Head
• Slotted/Phillips Drive
• #10 Nominal Diameter

Product Highlights

Zinc plated #10 tapping screw with hex washer head and combo drive, supplied in a 500-count jar.

Product Information

Standard Information

• Brand: PECO FASTENER
• Manufacturer Part Number: PC101HWH

Technical Specifications

• Product Code: PC101HWH
• Manufacturer Part Number: PC101HWH
• SKU: PC101HWH-PF
• Head Style: Hex Washer
• Drive Style: Slotted/Phillips
• Nominal Diameter: #10
• TPI: 12 (Type A), 16 (Type AB)
• Length: 1 Inch
• Head Height: 0.12 Inch
• Head Width Across Flat: 0.312 Inch
• Material: Carbon Steel
• Material Specification: AISI 1016/1024
• Process: Heat Treated
• Finish: Zinc Plated
• Washer Diameter: 0.414 Inch
• Washer Thickness: 0.031 Inch
• Slot Size: 0.06 Inch Width x 0.72 Inch Depth
• Count: 500
