Peco Fastener PC1012HT #10 (5/16 Hex) x 1/2 Hex Washer Head Unslot Type 3 Self Drill Screw Jar of 500

Product Description

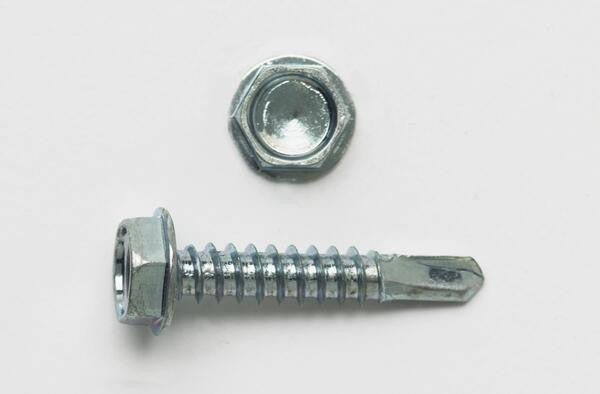

The PECO FASTENER PC1012HT is a #10 (5/16 Hex) x 1/2 Hex Washer Head Unslot Type 3 Self Drill Screw, zinc plated and packaged in a jar of 500. This self-drilling screw features a hex washer head and is designed for efficient fastening into various materials. It has a nominal diameter of #10, a length of 1/2 inch, and a 5/16 inch hex size. The screw is heat treated for durability and comes with a Type 3 drill point.

• Hex Washer Head Unslot Type 3 Self Drill Screw for efficient fastening.
• Features a #10 nominal diameter, 1/2 inch length, and 5/16 inch hex size.
• Zinc plated finish provides corrosion resistance, packaged in a jar of 500.

Product Highlights

This self-drilling screw offers a hex washer head, zinc plating, and comes in a convenient jar of 500.

Product Information

Standard Information

• Brand: PECO FASTENER
• Manufacturer Part Number: PC1012HT

Technical Specifications

• Hex Size: 5/16 inch
• Length: 1/2 inch
• Head Type: Hex Washer
• Screw Type: Unslot Type 3 Self Drill
• Finish: Zinc Plated
• Packaging: Jar of 500
• Nominal Diameter: #10
• Drill Point Size: #3
• Threads Per Inch (TPI): 16
• Material Specification: AISI 1016-1024
• Process: Heat Treated
• Head Dimensions: 0.34 inch Width x 0.12 inch Height
