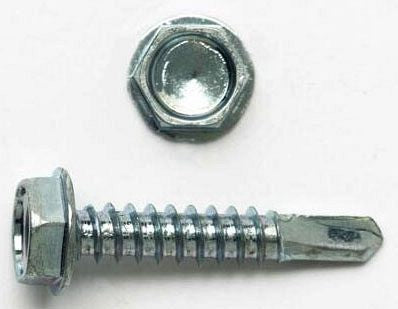

Peco Fastener 8X2HTJ Self Drilling Screw No. 8 X 2 in

Product Description

The PECO FASTENER 8X2HTJ is a No. 8-18 x 2 inch hex washer head self-drilling screw designed for fast, reliable fastening without a pre-drilled pilot hole. Made from AISI 1016-1024 carbon steel and heat treated for added hardness, this screw features a zinc plated finish that provides basic corrosion resistance in typical indoor and sheltered applications. The No. 2 drill point bores through light-gauge metal cleanly, while the 1/4 inch hex drive head allows installation with a standard hex driver bit. Sold in a jar of 100 screws.

This screw is suited for use in sheet metal fabrication, HVAC ductwork assembly, metal stud framing, electrical enclosures, and general trade construction where a self-drilling fastener is required. The hex washer head provides a broad bearing surface that resists pull-through on thin materials. Licensed tradespeople and contractors working with light-gauge steel components will find this a standard production fastener for high-volume assembly tasks.

Key Features

• No. 2 drill point self-drills through light-gauge steel without a pilot hole
• Hex washer head (0.272 inches wide x 0.110 inches tall) provides broad clamping surface
• Heat-treated AISI 1016-1024 carbon steel for consistent hardness and drive performance
• Zinc plated finish for basic corrosion resistance in sheltered environments
• 1/4 inch hex drive compatible with standard magnetic hex driver bits
• Packaged 100 per jar for convenient jobsite use

Compatibility

Designed as a standard No. 8-18 x 2 inch Type 2 self-drilling screw suitable for light-gauge sheet metal applications common in HVAC, electrical, and general construction trade work.

Installation Notes

Install with a hex driver bit sized for a 1/4 inch hex head using a variable-speed drill or screw gun. Apply steady, consistent pressure to allow the drill point to engage the material before the threads advance. Do not overdrive — the washer head should seat flush without crushing the base material. Follow applicable building codes and manufacturer guidelines for fastener spacing when used in structural or code-governed assemblies.

Technical Specifications

• Thread Size: No. 8-18
• Length: 2 inches
• Head Type: Hex Washer Head
• Head Width: 0.272 inches
• Head Height: 0.110 inches
• Drive Type: 1/4 inch Hex
• Drill Point: No. 2
• Screw Type: Type 2 Self Drilling
• Material: AISI 1016-1024 Carbon Steel, Heat Treated
• Finish: Zinc Plated
• Package Quantity: 100 per jar

Standard Information

• Brand: PECO FASTENER
• Manufacturer Part Number: 8X2HTJ
