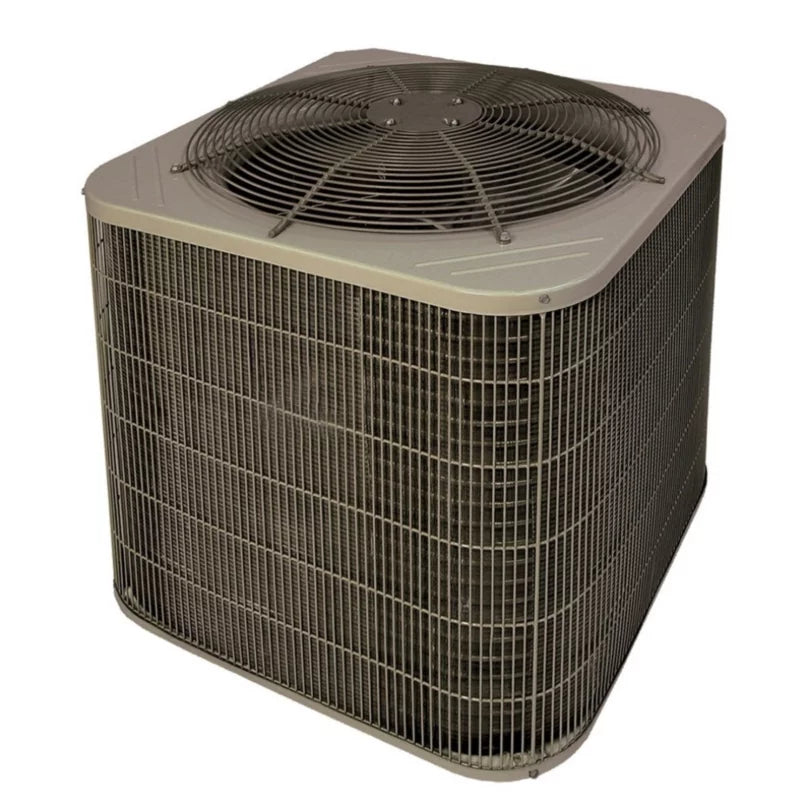

Payne ph7tan42400a 2 Ton Heat Pump Condensing Unit 17 SEER2

Product Description

The PAYNE ph7tan42400a is a 2-ton, 2-stage residential heat pump condensing unit rated at 17 SEER2 and 8.1 HSPF2. It operates on R-410A refrigerant and runs on a 208-230 VAC single-phase, 60 Hz power supply. The unit delivers 24,000 BTU/h of both cooling and heating capacity through a scroll compressor paired with a PSC condenser fan motor. Liquid and suction line connections are sweat or braze fittings. Licensed HVAC technicians handle installation and commissioning of this type of equipment.

This condensing unit is designed for residential split-system heat pump applications. It is intended for outdoor installation as the condensing section of a ducted system. The 2-stage operation allows the compressor to run at reduced capacity during moderate load conditions, improving comfort and efficiency over single-stage designs. Maximum refrigerant piping length is 250 feet, giving installers flexibility in equipment placement relative to the air handler.

Key Features

• 17 SEER2 cooling efficiency and 8.1 HSPF2 heating efficiency
• 2-stage scroll compressor for both cooling and heating
• 24,000 BTU/h (2 tons) cooling and heating rated capacity
• R-410A refrigerant with sweat or braze line connections
• Vertical condenser fan discharge at 3,158 CFM with 800 RPM PSC motor
• 70 dBA sound level rating

Compatibility

Designed as an OEM-style replacement or new-installation condensing unit for residential split-system heat pump configurations within the Payne PH7T product family. Consult system design requirements to confirm matching indoor coil and air handler compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before servicing or connecting line sets. Liquid line OD is 3/8 inches and suction line OD is 3/4 inches; use sweat or braze connections only. Maximum overcurrent protection is 25 amps and rated load amps are 10.9 — verify that the disconnect and branch circuit wiring meet NEC requirements for the installation.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h (2 tons)
• Heating Capacity: 24,000 BTU/h
• SEER2: 17
• EER2: 13
• HSPF2: 8.1
• Voltage: 208-230 VAC
• Phase: Single
• Cycle: 60 Hz
• Rated Load Amps (RLA): 10.9
• Locked Rotor Amps (LRA): 61
• Full Load Amps: 0.5
• Maximum Overcurrent Protection (MOCP): 25 amps
• Compressor Type: Scroll
• Stages Cooling: 2
• Stages Heating: 2
• Refrigerant: R-410A
• Condenser Fan CFM: 3,158
• Condenser Fan Discharge: Vertical
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Condenser Motor HP: 1/12
• Condenser Motor RPM: 800
• Condenser Coil Fins per Inch: 20
• Liquid Line Size (OD): 3/8 inches
• Liquid Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 3/4 inches
• Suction Line Fitting Type: Sweat or Braze
• Maximum Piping Length: 250 feet
• Sound Level: 70 dBA
• Length: 35 inches
• Width: 35 inches
• Height: 35 inches
• Weight: 228 pounds
• Color: Gray
• Country of Origin: Mexico

Standard Information

• Brand: PAYNE
• Manufacturer Part Number: ph7tan42400a
