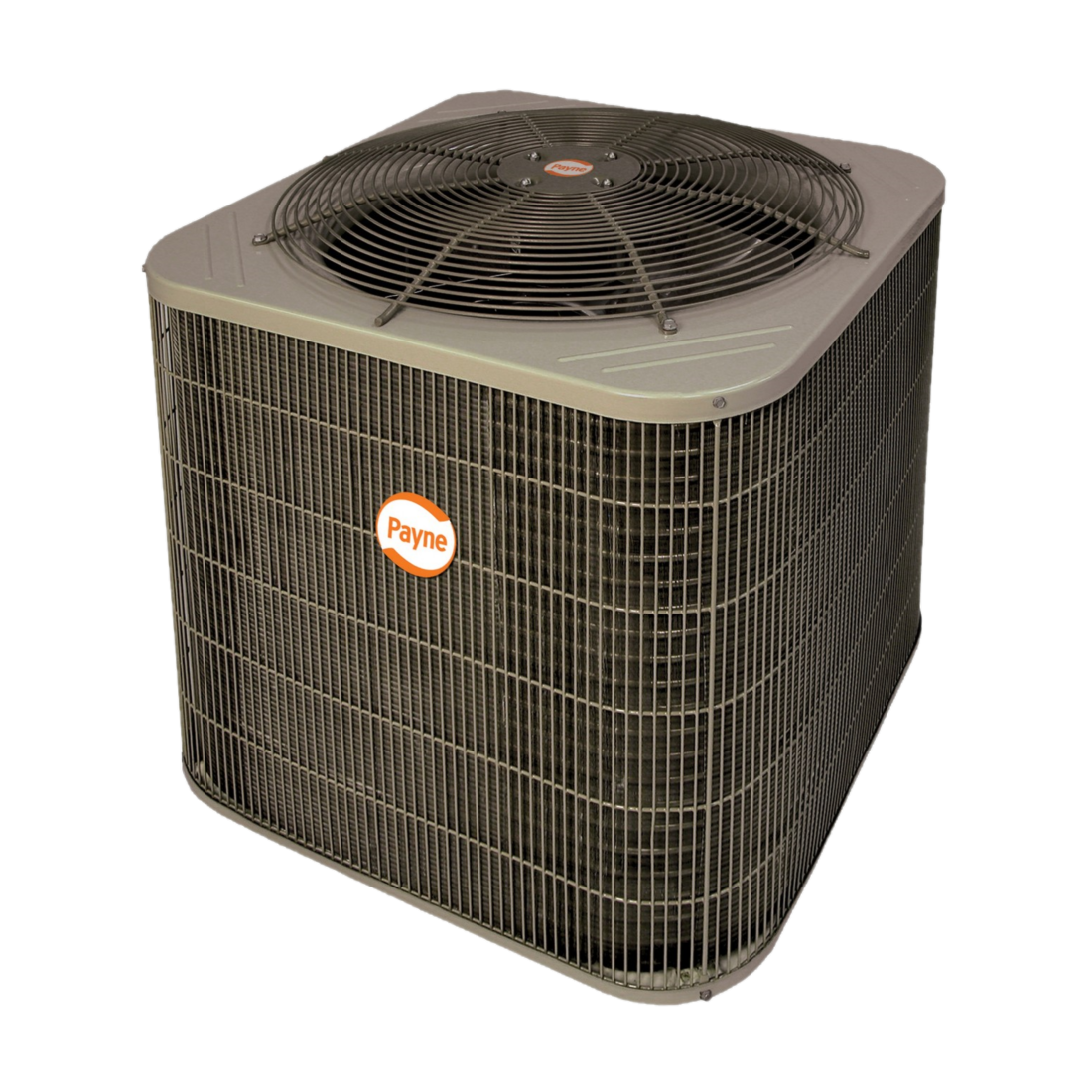

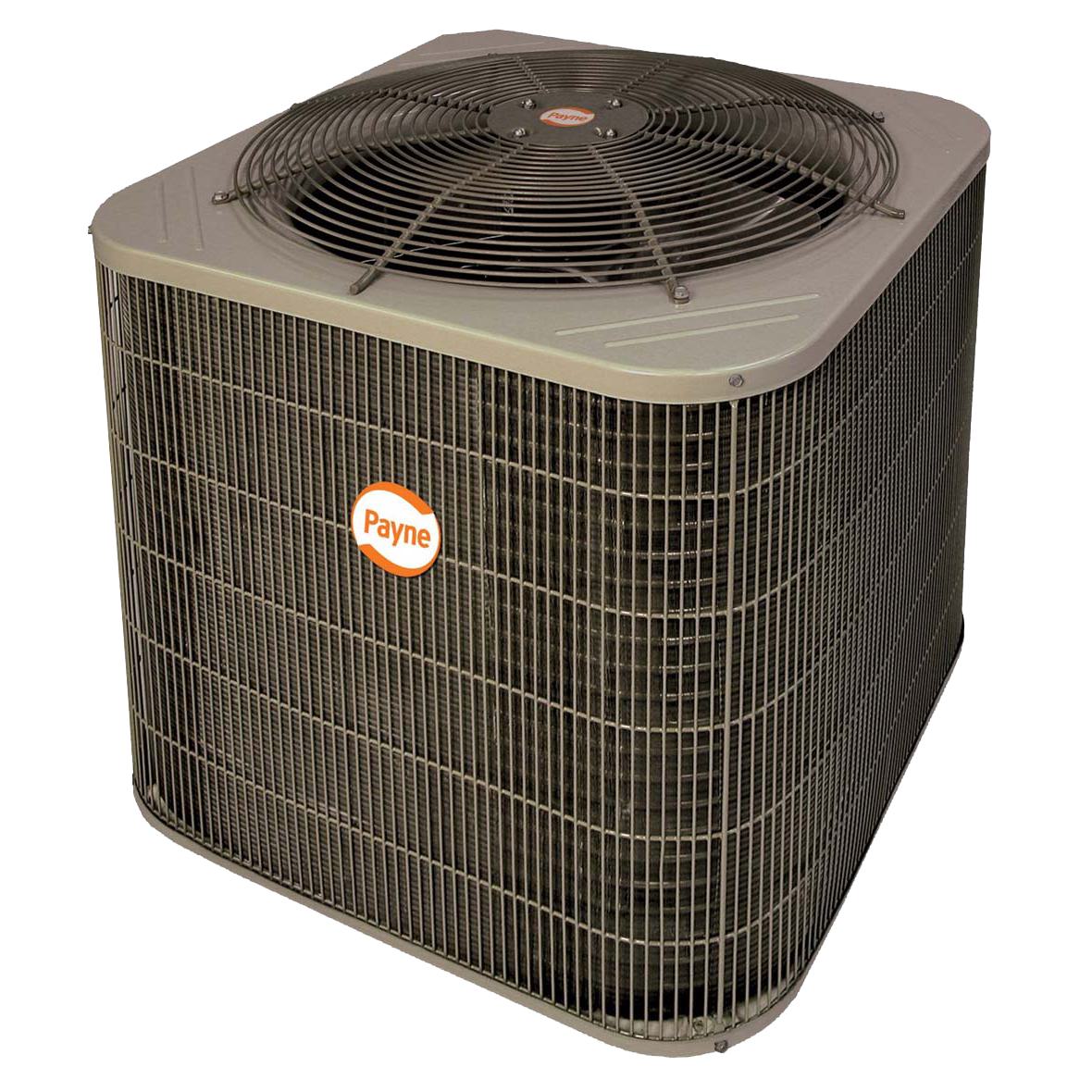

Payne PA7TAN46000W Condenser 5 Ton 2 Stage 17 Seer2

Product Description

The Payne PA7TAN46000W is a residential air conditioner condenser unit. This unit features a two-stage compressor for improved temperature and summer humidity control. It is durably built with a tight wire grille to withstand bad weather and debris and is designed for corrosion resistance and lasting performance. Operates on 208/230 VAC, 1 ph, 60 Hz power source.

• Quiet performance
• Two-stage compressor for improved temperature and summer humidity control
• Durably built with tight wire grille to withstand bad weather and debris

Product Highlights

This Payne condenser offers quiet performance and durable construction for lasting use. Ideal for residential applications requiring efficient and reliable cooling.

Product Information

Standard Information

• Brand: PAYNE
• Manufacturer Part Number: PA7TAN46000W
• Country of Origin: MEX

Technical Specifications

• MPN: PA7TAN46000W
• Brand: PAYNE
• Nominal: 5 ton
• Power Source: 208/230 VAC, 1 ph, 60 Hz
• SEER: 16
• AHRI - Usage: Outdoor
• CFM: 4,779
• Condenser Motor HP: 1/4
• Condenser Motor RPM: 800
• Condenser Motor Speeds: 1
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 60,000
• Cooling Rated Capacity Btu/h: 60000
• Cycle/Hertz: 60 Hz
• EER2: 12
• Energy Star Rated: true
• Equipment Type: Straight Cool
• Liquid Line Size (OD): 3/8"
• Maximum Piping Length: 250'
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Phase: Single
• Product Family: PA7T
• Refrigerant: R-410A
• SEER2: 16
• Sound Level (dBA): 74-75
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 1 1/8"
• Tier: Sentry
• Tonnage: 5
• Voltage: 208-230 VAC
• Liquid Line Fitting Type: Sweat or Braze
• Locked Rotor Amps (LRA): 158
• Rated Load Amps (RLA): 25.6
• Suction Line Fitting Type: Sweat or Braze
• Maximum Overcurrent Protection (MOCP): 50
• Compressor Type: Scroll
• Condenser Coil Fins per Inch (FPI): 20
• Approvals: UL Listed
• Minimum Circuit: 33.2 amp
• CFM Cooling: 4779.0
• Maximum SEER: 16.5
