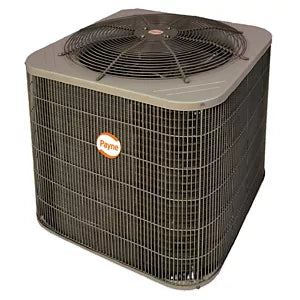

Payne PA5SAN44200W PA5S Air Conditioner 3.5 Ton (1021696W)

Product Description

Payne PA5SAN44200W is an outdoor PA5S series air conditioner condensing unit with a nominal 3.5 ton (42,000 Btu/h) cooling capacity that uses R-410A refrigerant and a scroll compressor. The unit operates single-phase at 208-230 VAC, offers SEER2 ratings in the 13.8–15 range, and supports long-line installations up to 250 ft and low-ambient cooling down to 0°F with approved accessory kits.

• Scroll compressor with internal pressure relief valve, internal thermal overload and included filter drier
• Single-phase 208-230 VAC operation; condenser motor 1/4 HP PSC, 1,100 RPM, single speed; electrical protection: RLA 25, LRA 120, MOCP 50
• Long-line capable up to 250 ft total equivalent length and low ambient cooling to 0°F with approved kits; outdoor condensing unit construction with dense wire coil guard

Product Highlights

3.5 ton outdoor R-410A condensing unit, 42,000 Btu/h, single-phase 208-230 VAC, scroll compressor, long-line and low-ambient capable

Product Information

Standard Information

• Brand: PAYNE
• Manufacturer Part Number: PA5SAN44200W
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: PA5SAN44200W
• Brand: Payne
• Product Family: PA5S
• Equipment Type: Outdoor condensing unit (straight cool)
• Tonnage: 3.5
• Cooling Capacity: 42,000 Btu/h
• Refrigerant: R-410A
• SEER2: 13.8-15
• EER: 12.2
• EER2: 11.2-13
• Compressor Type: Scroll
• Compressor Bearing Unit: Yes
• Condenser Motor HP: 1/4
• Condenser Motor RPM: 1,100
• Condenser Motor Speeds: 1
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• CFM: 3,890
• Phase: Single
• Input Voltage: 208-230 VAC
• Frequency: 60 Hz
• Rated Load Amps (RLA): 25
• Locked Rotor Amps (LRA): 120
• Maximum Overcurrent Protection (MOCP): 50
• Maximum Piping Length: 250 ft
• Long-line capability: Up to 250 ft total equivalent length
• Low ambient capability: Down to 0°F / -18°C with approved accessory kit
• Liquid Line Size (OD): 3/8"
• Suction Line Size (OD): 7/8"
• Liquid Line Fitting Type: Sweat or Braze
• Suction Line Fitting Type: Sweat or Braze
• Fins Per Inch (FPI): 20
• Sound Level: 76 dBA
• Weight: 181 lb
• Height: 31.6875 in
• Length: 31.1875 in
• Width: 31.1875 in
• Country of Origin: Mexico
• Approvals/Certifications: UL Listed
• Prop 65: Yes
• Inverter: No
• Tier: Sentry
• OPT Code: 1PPA5SAN44200W
• AHRI Usage: Outdoor
