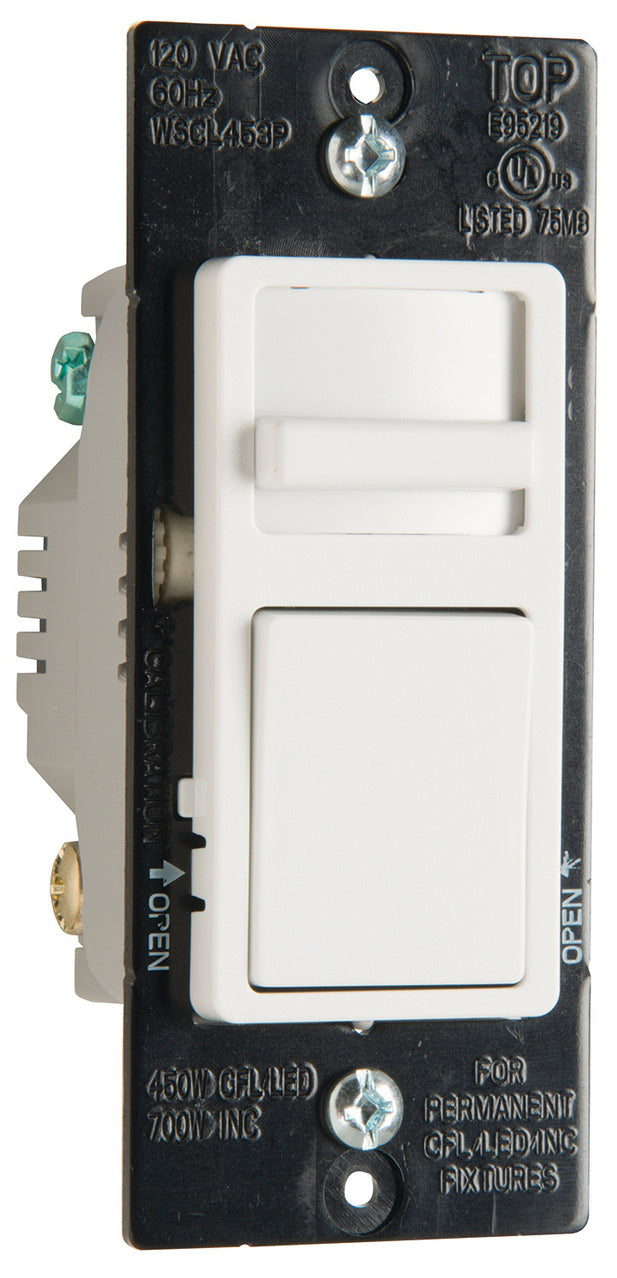

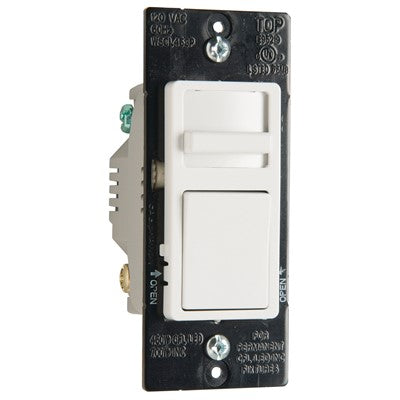

Pass & Seymour WSCL453P-W Wide Slide Series CFL/LED/Incandescent Single Pole/3-Way Paddle Slide Dimmer, Preset

Product Description

The Pass & Seymour WSCL453P-W is a dimmer designed for use with CFL, LED, and incandescent lighting. It features a sleek, sculpted ergonomic design for smooth, easy operation and precise control. Ideal for commercial and residential applications.

• Combines ON/OFF decorator style switch with separate slider for dimming control
• Constant memory returns lights to previous level after a power failure
• Sleek, ergonomic design that matches well with other decorator products

Product Highlights

This dimmer is suitable for single pole and 3-way operation and includes screw-pressure-plate back wire terminals.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: WSCL453P-W
• Country of Origin: China

Technical Specifications

• Color: White
• Product Series: Decorator
• Material: Steel, Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Number of Switches: 1
• Switch Type: Rocker, Slider
• Standard: cULus, RoHS
• UPC Number: 785007039375
• Product Depth US: 1.25 in
• Product Height US: 4.25 in
• Product Width US: 1.75 in
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Dimming Compatibility: Forward Phase
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• Load Rating: 120V 450W (CFL), 120V 450W (LED), 120V 700W (Halogen), 120V 700W (Incandescent)
• Load Type: CFL, Halogen, Incandescent, LED
• Mounting Type: Wall Box
• Number of Poles: Single Pole 3-Way
• Preset: Yes
• Voltage: 120 VAC
• Wire Size: #14 - #10 AWG
• Wattage: 450 W
• Pole: 1 Pole
• Lamp Type: CFL/Incandescent/LED Lamp
• Operation Mode: 3-Way
• Control: Slider
• Power Rating: 450 W
• Series: TradeMaster
• Voltage Rating: 120 VAC
• Type: Preset Wide
