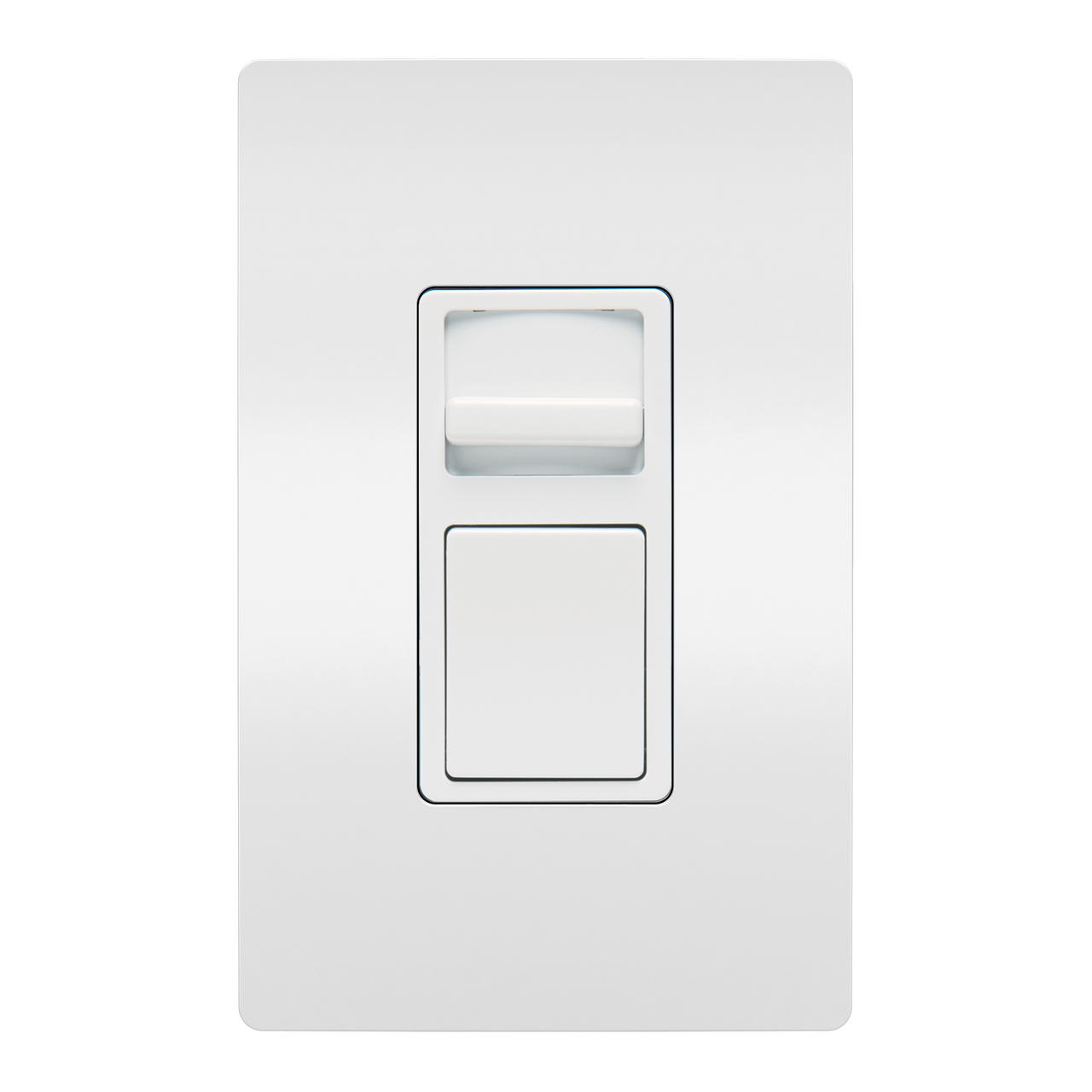

Pass & Seymour WSCL453P-TC Wide Slide Series CFL/LED/Incandescent Single Pole/3-Way Paddle Slide Dimmer

Product Description

The Pass & Seymour WSCL453P-TC is a dimmer that works with select dimmable CFL/LED or incandescent lighting loads. It features a sleek, sculpted ergonomic design for smooth, easy operation and precise control. Suitable for commercial and residential applications.

• Combines ON/OFF Decorator style switch with separate slider for dimming control
• Constant memory returns lights to previous level after a power failure
• Sleek, ergonomic design that matches well with other decorator products

Product Highlights

The dimmer has higher ratings and screw-pressure-plate back wire terminals to save time, space and money.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: WSCL453P-TC
• Country of Origin: China

Technical Specifications

• Product Series: Decorator
• Material: Steel, Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Color Change Kit, Low-End Trim (Dim Range): Yes
• Number of Switches: 1
• Switch Type: Rocker, Slider
• UPC Number: 785007039351
• Product Depth US: 1.25 in
• Product Height US: 4.25 in
• Product Width US: 1.75 in
• cULus Listed: Yes
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Dimming Compatibility: Forward Phase
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• Load Rating: 120V 450W (CFL), 120V 450W (LED), 120V 700W (Halogen), 120V 700W (Incandescent)
• Load Type: CFL, Halogen, Incandescent, LED
• Mounting Type: Wall Box
• Number of Poles: Single Pole 3-Way
• Preset: Yes
• Voltage: 120 VAC
• Wire Size: #14 - #10 AWG
• ECCN: EAR99
• UNSPSC: 39122206
• Standard: cULus, RoHS
• Application: Commercial/Residential
• Connection Type: Screw Terminal
• AWG Range: 14 - 10 AWG
• Dimmer Switch Style: Wallbox Dimmer
• Lamp Type: LED
• Rated Voltage: 120V
• Switch Style: Slider, Push
• Height: 4.25 in.
• Depth: 1.25 in.
• Width: 1.75 in.
• UNSPSC Code: 39120000
• Brand: Pass & Seymour
• Manufacturer Part Number: WSCL453PTC
• Unit of Measure: EA
