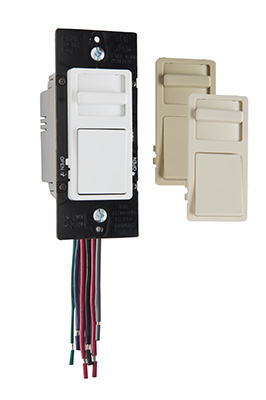

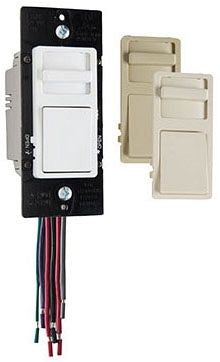

Pass & Seymour WS4FBL3PTC Wide Slide Fluorescent/LED Dimmer 0-10V 10A 120V 5A 277V

Product Description

The Pass & Seymour WS4FBL3PTC is a reliable wide slide dimmer switch designed for use with 0-10V, 4-wire, 120V and 277V fluorescent dimming ballasts as well as LED fixtures. This dimmer allows precise lighting control for various applications.

• Suitable for controlling both LED and fluorescent lighting
• Single pole and 3-way operation for flexibility
• Available in interchangeable colors: almond, ivory, and white

Product Highlights

This dimmer switch features a convenient on/off decorator switch with a separate slider for dimming control. Its low-voltage pig tails are labeled separately for easy installation.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Pass & Seymour / Legrand

Technical Specifications

• Voltage: 120 Volt
• Wattage: 450 Watt
• Amperage: 10 Amp
• Material: Thermoplastic
• Depth: 1 and 1/4 Inch
• Width: 1.75 Inches
• Height: 4 and 1/4 Inch
• Type: 1-Pole
• Load Type: Fluorescent Ballast
• Environmental Conditions: 0 - 95% Humidity, Operating Temperature: 0 - 40 degrees C
