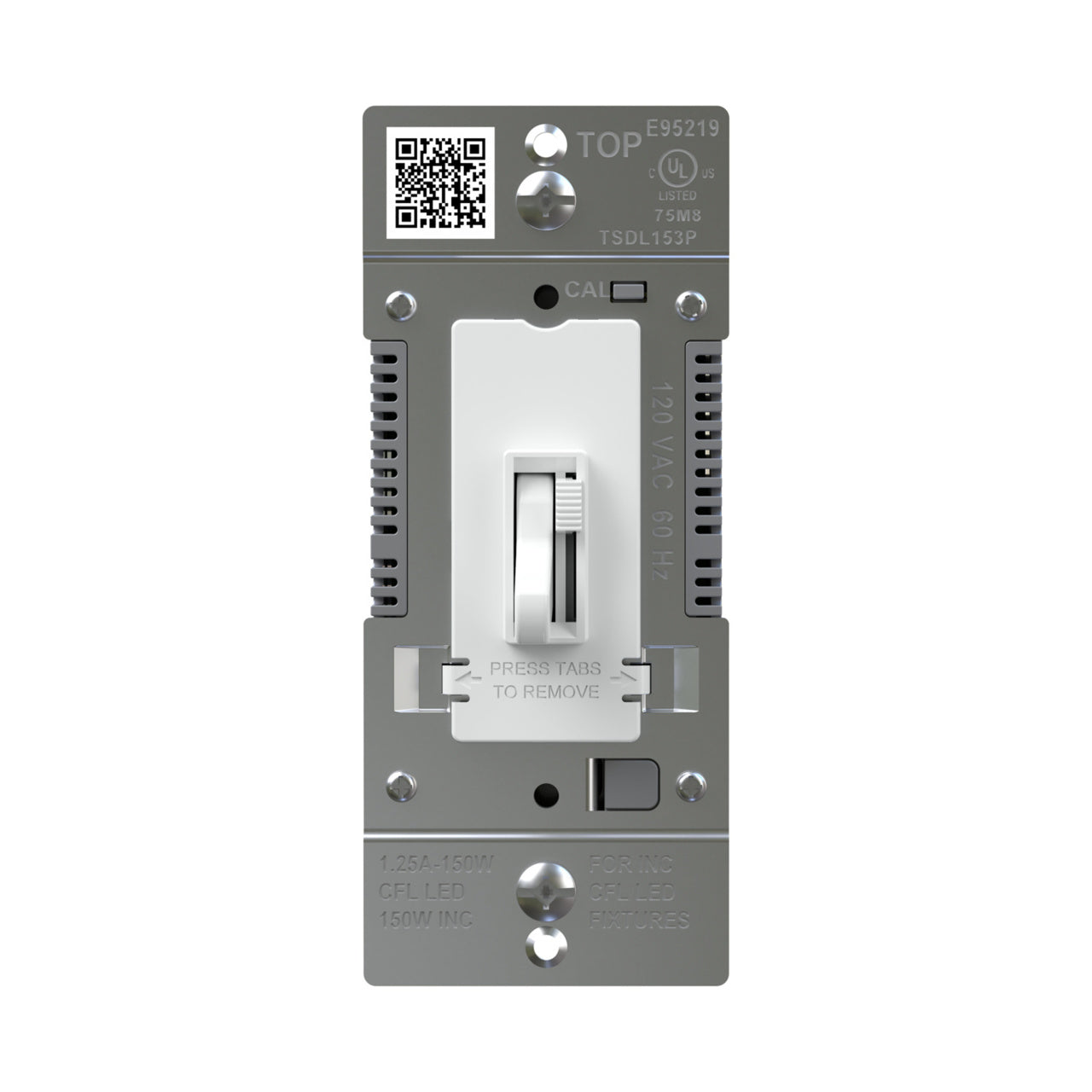

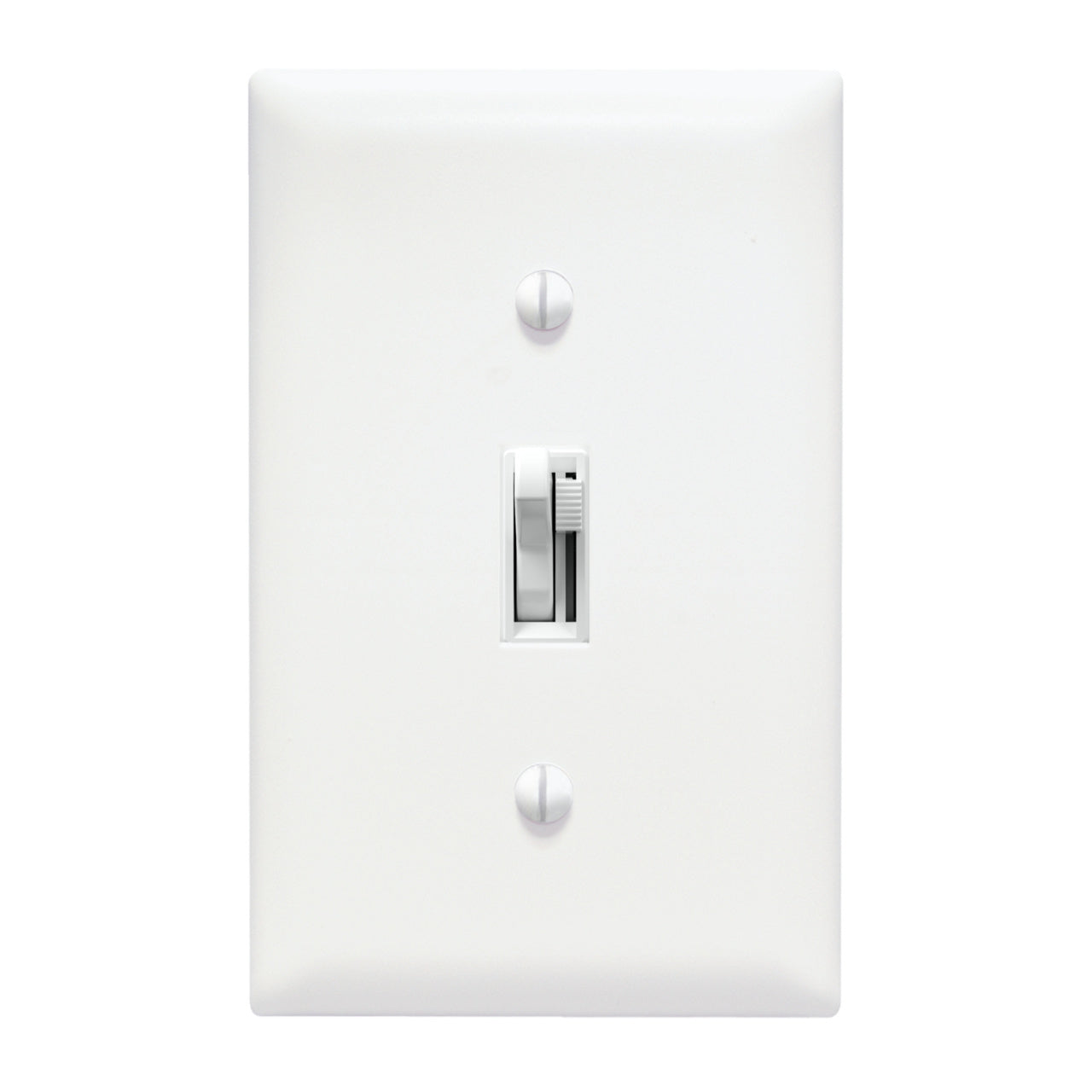

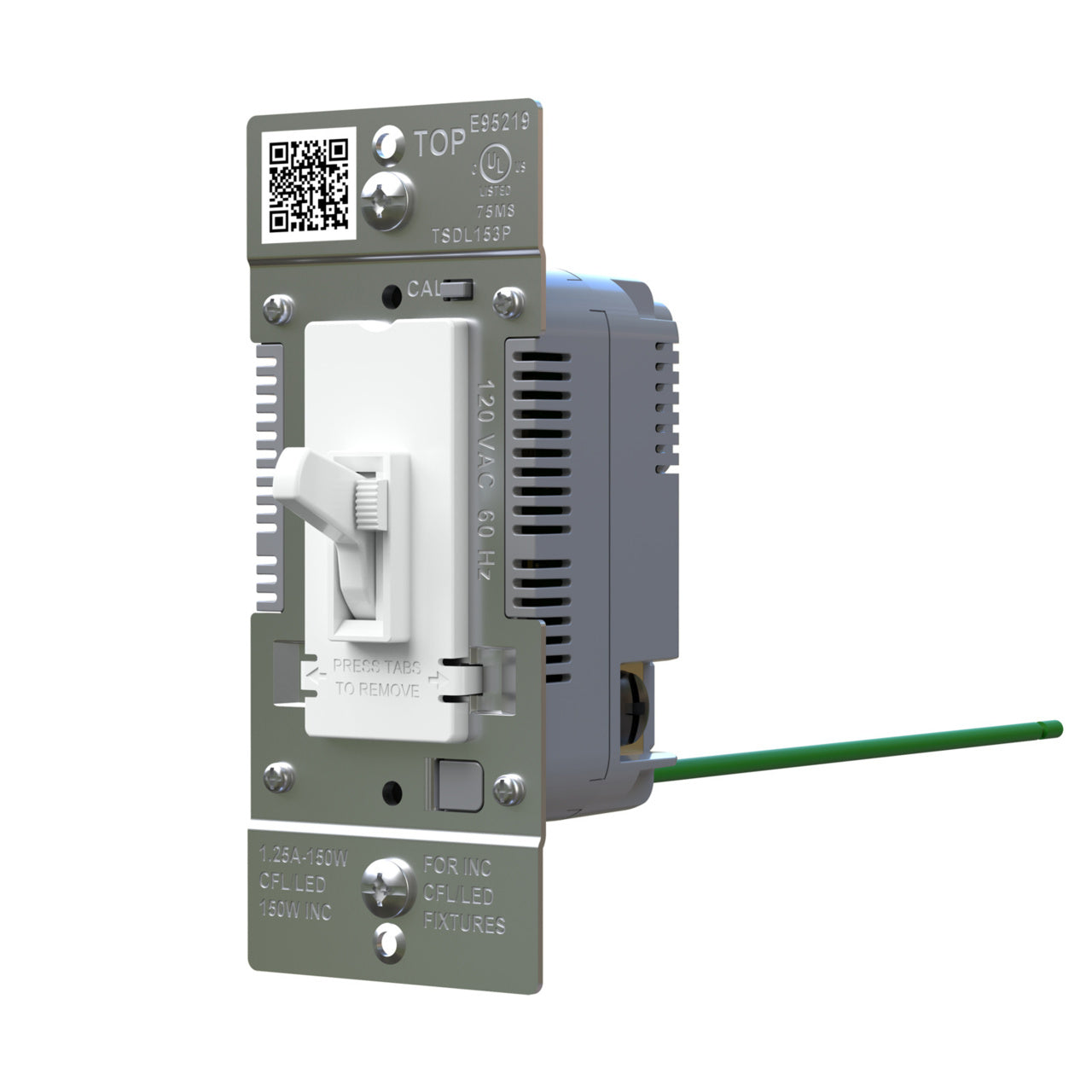

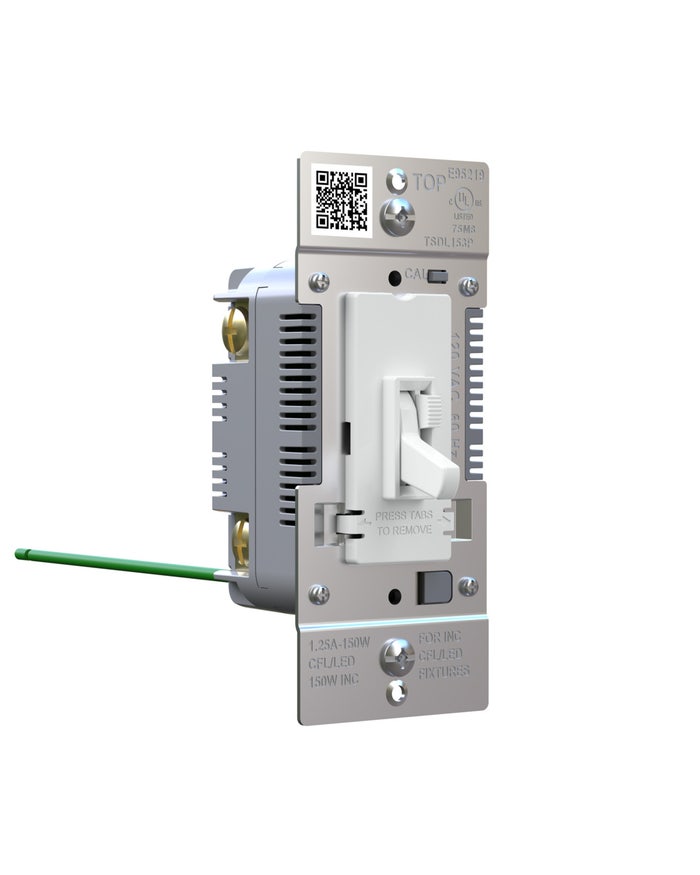

Pass & Seymour TSDL153PW Trademaster Toggle Slide LED Advanced Dimmer 150W

Product Description

The PASS & SEYMOUR TSDL153PW Trademaster Toggle Slide LED Advanced Dimmer is designed for flicker-free control of dimmable LED bulbs and fixtures. It features advanced circuitry for a superior lighting control experience. User adjustments adapt to a range of dimmable LED lights, eliminating flickering and pop-ons. Wall plates are sold separately.

• Optimized for flicker-free control of LEDs up to 150W at 120VAC.
• Advanced dimming technology maximizes LED compatibility.
• Simple high-and-low end dimming limit adjustability.

Product Highlights

This dimmer replaces any basic single-pole or 3-way switch or dimmer. No neutral wire is required, suitable for new construction and retrofit applications.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: TSDL153PW
• Country of Origin: China

Technical Specifications

• Color: White
• Product Series: Trademaster
• Material: Steel, Thermoplastic
• Finish: Matte
• Application Sector: Hospitality, Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Number of Switches: 1
• Switch Type: Slider, Toggle
• Warranty Type: Limited Lifetime Warranty
• UPC Number: 785007450569
• Product Depth US: 1.57 in
• Product Height US: 4.2 in
• Product Length US: 1.85 in
• Product Width US: 1.74 in
• CSA Listed: Yes
• cULus Listed: Yes
• Product Has Potential to Contribute to LEED: Yes
• Energy Savings: Yes
• RoHS Compliant: Yes
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Dimming Compatibility: Forward Phase
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• Load Rating: 120V 1.25A 150W (CFL), 120V 1.25A 150W (Incandescent), 120V 1.25A 150W (LED)
• Load Type: LED
• Mounting Type: Wall Box
• Number of Poles: Single Pole 3-Way
• Preset: Yes
• Voltage: 120 VAC
