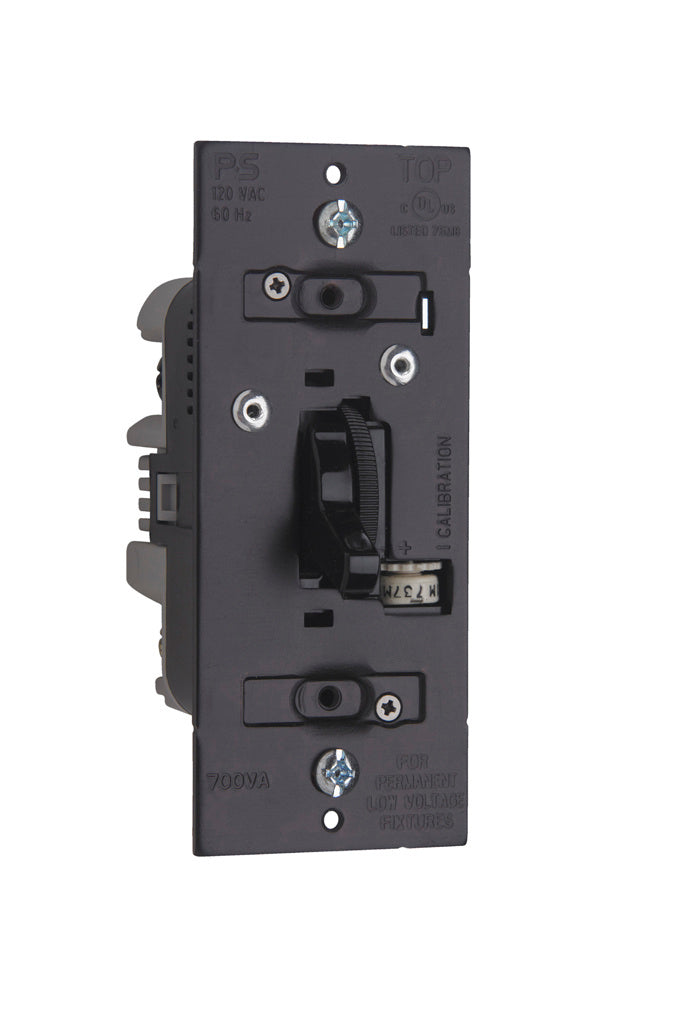

Pass & Seymour TSDCL303PBK TradeMaster LED/CFL/Incandescent Single Pole/3-Way Toggle Slide Dimmer Preset Replacement TSDL153PBK

Product Description

The Pass & Seymour TSDCL303PBK TradeMaster Toggle Slide Dimmer is designed for use with compact fluorescent or LED lighting fixtures. This single pole 3-way switch can be used in a two-location layout. The slide can be set to your preferred level and then toggled on and off providing instant repeatability.

• Matches appearance of standard Pass and Seymour toggle switch
• All models are Single Pole/3-Way capable
• Interchangeable face covers are available in seven different colors

Product Highlights

This switch offers dependability. It combines an ON/OFF toggle switch with a separate slider for dimming control.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: TSDCL303PBK
• Country of Origin: China

Technical Specifications

• Color: Black
• Product Series: Trademaster
• Material: Steel, Thermoplastic
• Finish: Gloss
• Application Sector: Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Replaced by Part Number: TSDL153PBK
• Features: Color Change Kit, Low-End Trim (Dim Range)
• Number of Switches: 1
• Switch Type: Slider, Toggle
• UPC Number: 785007215946
• Product Depth US: 1.4 in
• Product Height US: 4.19 in
• Product Width US: 2.5 in
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Dimming Compatibility: Forward Phase
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• Load Rating: 120V 2.5A 300W (LED), 120V 4.5A 450W (CFL), 120V 700W (Halogen), 120V 700W (Incandescent)
• Load Type: CFL, Halogen, Incandescent, LED
• Mounting Type: Wall Box
• Number of Poles: Single Pole 3-Way
• Preset: Yes
• Voltage: 120 VAC
• Wire Size: #14 - #10 AWG
• Grade: Spec Grade
• Style: Toggle
• Type: CFL/LED Toggle
• Wattage: 300 Watt
• Brand: Legrand
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007215946
• GTiN: 00785007215946
• Product UPC: 78500721594
• Depth: 1.4 Inch
• Height: 4.19 Inch
• Length: 2.68 Inch
• Width: 2.5 in
• Secure Environment: Indoor Use Only
• Number Of Wires: None
• CSA Listed: Yes
• cULus: Yes
• UL Standard: UL1472
• Depth (US): 1.40"
• Length (US): 4.19" ( 2.68")
• Volts: 120V
• Watts: 300W CFL / LED; 700W Incandescent
• Grade Type: Spec Grade
• Buy American Act Status: No
• Standard: RoHS, CSA Listed, UL Listed, cULus
• Amperage: 1.6 A
• Connection: Screw Terminals
• Environmental Conditions: Humidity: Less than 95% non condensing
