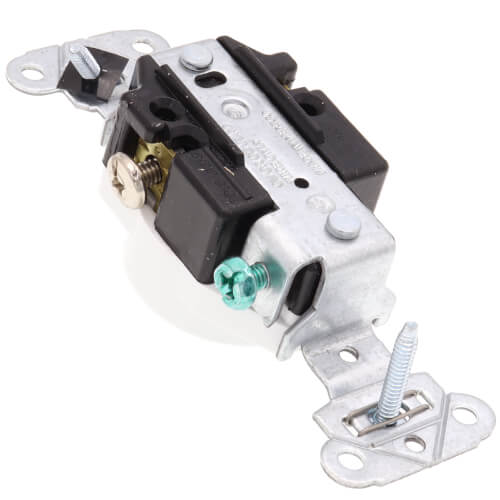

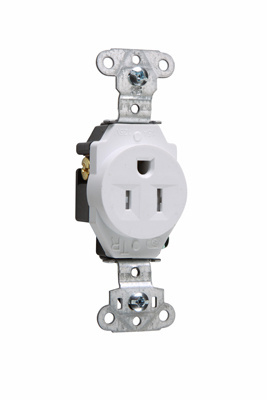

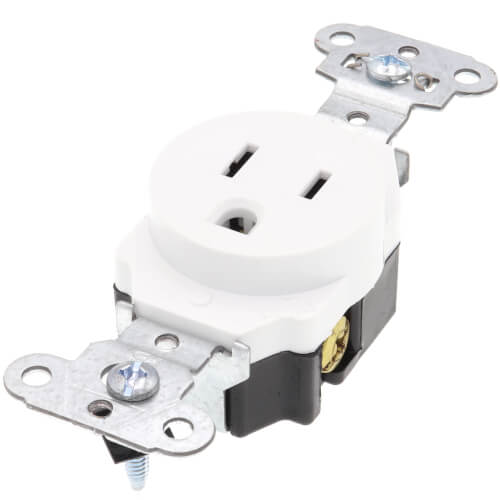

Pass & Seymour TR5251W receptacle 125VAC 15A 2 pole 3 wire

Product Description

The Pass & Seymour TR5251W is a tamper-resistant straight blade receptacle designed for safety and durability. This receptacle operates at 125 volts and has a rating of 15 amps with two poles and three wires. The construction is suitable for commercial use.

• Dual mechanical shutter system to prevent foreign object insertion
• Heavy-duty, corrosion-resistant steel strap
• Back and side wire capability for flexible installation

Product Highlights

This receptacle meets NEMA 5-15R rating and is designed to withstand a dielectric strength of 2000 volts. It features a back/side wire terminal for connection convenience.

Product Information

Standard Information

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A

Technical Specifications

• Type: Single Tamper-Resistant
• Material: Nylon
• Temperature Rating: -40 to 60 degrees C
• NEMA Rating: 5-15R
• Dimensions: 1.296 in L x 1.19 in W x 3.28 in H
• Number of Poles: 2
• Number of Wires: 3
• Grade: Commercial
