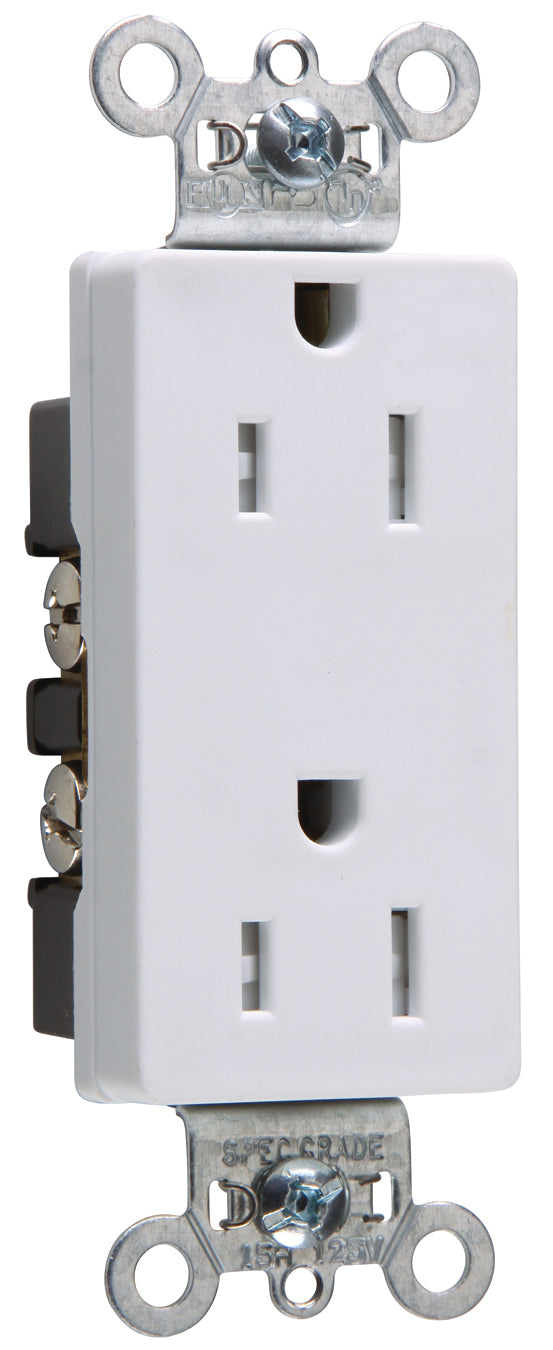

Pass & Seymour TR26242-W decorator duplex receptacle 15A 125V

Product Description

The Pass & Seymour TR26242-W is a decorator duplex tamper-resistant straight blade receptacle. This 15A, 125V receptacle features a dual mechanical shutter system to help prevent insertion of foreign objects and an auto-ground clip assures positive ground. It is designed for indoor commercial applications.

• Dual mechanical shutter system to help prevent insertions of foreign objects.
• AC receptacles available in 15 and 20A, 125V.
• Auto-ground clip assures positive ground.

Product Highlights

Tamper-resistant decorator spec grade receptacle with side wire connection. It has easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: TR26242-W
• Country of Origin: Mexico

Technical Specifications

• Color: White
• Finish: Matte
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Features: Decorator Style, Single Piece Plated Steel Mounting Strap
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Tamper-Resistant
• UPC Number: 785007034608
• Product Depth US: 0.93 in
• Product Height US: 3.28 in
• Product Width US: 1.37 in
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Amperage: 15 A
• Connection Location: Side Only
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Is Tamper-Resistant: Yes
• NEMA Configuration Code: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 125 VAC
• Wire Size: 14 - 10 AWG
• Receptacle Type: Straight Blade
• Grade: Specification
• Contact Material: Brass
• Dielectric Strength: 2000 V
• Material: Thermoplastic
• Style: Decorator
• Temperature Rating: -40 degrees C to 60 degrees C
• Brand: Pass & Seymour
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007034608
• Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
• GTiN: 00785007034608
• Product UPC: 78500703460
• UNSPSC: 39121406
• Depth: 0.93 Inch
• Height: 3.28 Inch
• Width: 1.37 in
• Certifications: CULUS
• Applications: Commercial
• Capacity: Duplex
• Conductor Size: 14-10 AWG
• Connection Type: Side Wire
