Pass & Seymour TR20HUSBACW 20A 125V DUP HG TR

Product Description

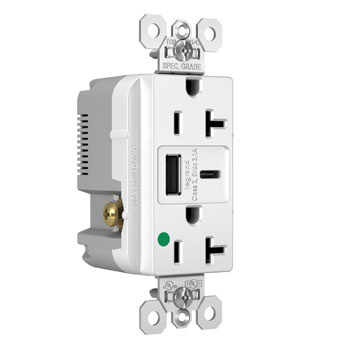

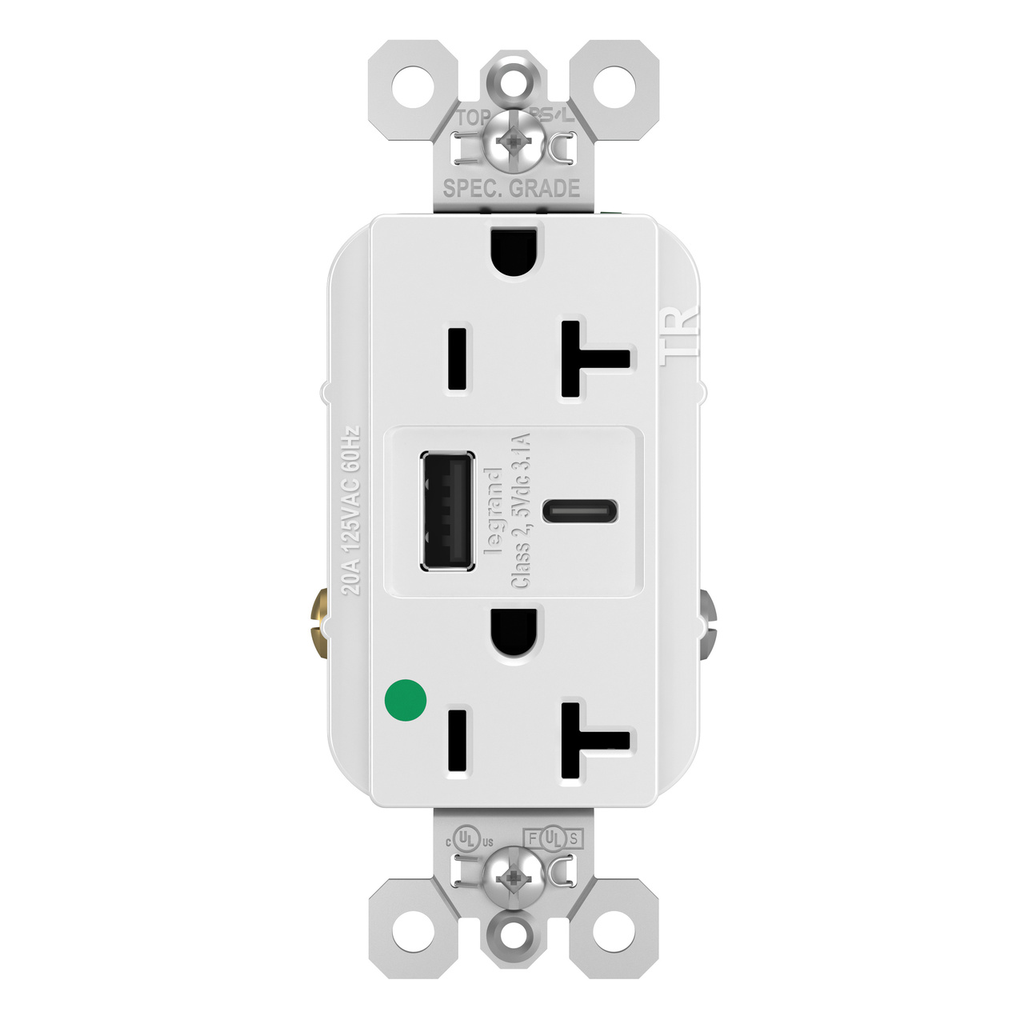

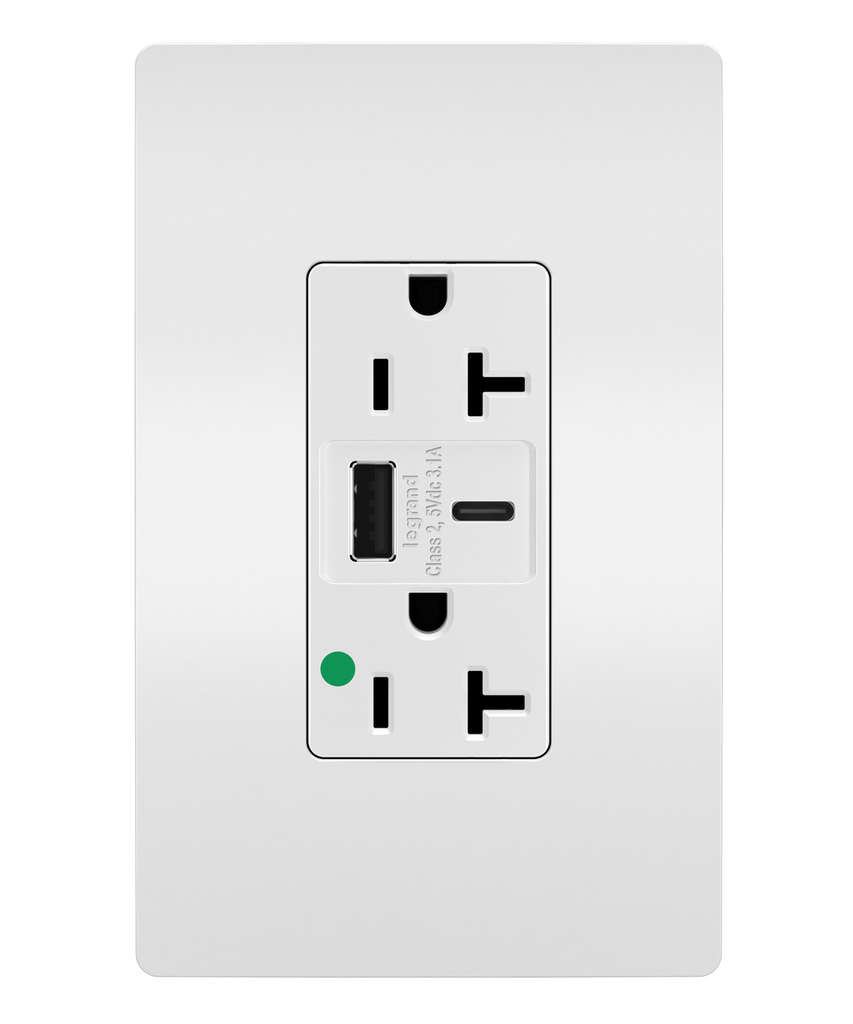

The Pass & Seymour TR20HUSBACW is a 20A 125V Hospital Grade Tamper-Resistant Receptacle. This unit features two USB charging ports that support Type A and C devices, allowing for versatile charging options.

• 20A and 125V for reliable power delivery.
• Two USB charging ports with a combined output of 3.1A.
• Constructed with hospital-grade materials for safety and durability.

Product Highlights

This receptacle is designed for hospital settings where high safety standards are crucial. It offers convenience with USB ports integrated into the design, providing a modern solution for charging needs.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Pass & Seymour / Legrand

Technical Specifications

• Voltage: 125 Volt
• Amperage: 20 Amp
• NEMA: 5-20R
• Type: Tamper-Resistant, Type A/C
• Material: Nylon
• Depth: 1.452 inches
• Width: 1.693 inches
• Height: 3.28 inches
• Temperature Rating: -40 degrees C to 60 degrees C
• Conductor Size: 14-10 AWG
• Contact Material: CDA 260 Brass
• Certifications: cULus Listed, Federal Spec Listed
• Country of Origin: China
