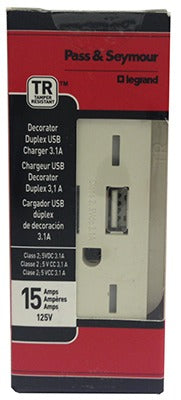

Pass Seymour TM826USBWCCV6 Usb Charger Receptacle 15A

Product Description

The PASS SEYMOUR TM826USBWCCV6 is a combination USB charger and tamper-resistant duplex receptacle designed for residential and light commercial electrical installations. The unit integrates two 5-volt DC USB Type A ports rated at 2.1 amps alongside a standard 15-amp AC duplex outlet, all in a compact form factor that fits a standard wall plate opening. The built-in USB ports are compatible with USB 2.0 and 3.0 devices, eliminating the need for AC adapter blocks that occupy outlet space. Licensed electricians install this device as a direct replacement for existing duplex receptacles, making it a practical upgrade in kitchens, offices, and living spaces where device charging demand is high.

This unit suits residential new construction and retrofit applications where NEC-compliant tamper-resistant receptacles are required. The compact design accepts standard decorator-style wall plates, so no special trim hardware is needed. Both back and side wire terminals are provided, giving installers flexibility in wiring configuration. Compatible devices include tablets, mobile phones, smartphones, Bluetooth headsets, digital cameras, GPS units, e-readers such as Kindle, and handheld gaming devices including Nintendo 3DS and Sony PlayStation Vita. The package contains 6 units, making it suitable for multi-outlet installation jobs.

Key Features

• Two 5V DC USB Type A ports at 2.1 amps support faster charging without AC adapters
• USB 2.0 and 3.0 compatible for broad device support
• Tamper-resistant patented shutter system blocks improper insertion of foreign objects
• Back and side wire terminals for wiring flexibility during installation
• Accepts standard wall plates and replaces existing duplex receptacles directly
• Meets 2011 National Electrical Code requirements
• Packaged in a 6-unit count for multi-outlet projects

Compatibility

Designed as a direct replacement for standard duplex receptacles and confirmed compatible with USB-powered devices including iPad, iPhone, iPod, tablets, mobile phones, smartphones, Nintendo 3DS, Sony PlayStation Vita, Bluetooth headsets, digital cameras, Kindle, and GPS devices.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code and all applicable local codes. Always shut off circuit power at the breaker panel and verify the circuit is de-energized with a non-contact voltage tester before wiring. Both back-wire and side-terminal connections are available; use the appropriate gauge wire as specified on the device markings. Do not exceed the 15-amp circuit rating of this device.
