Product Description

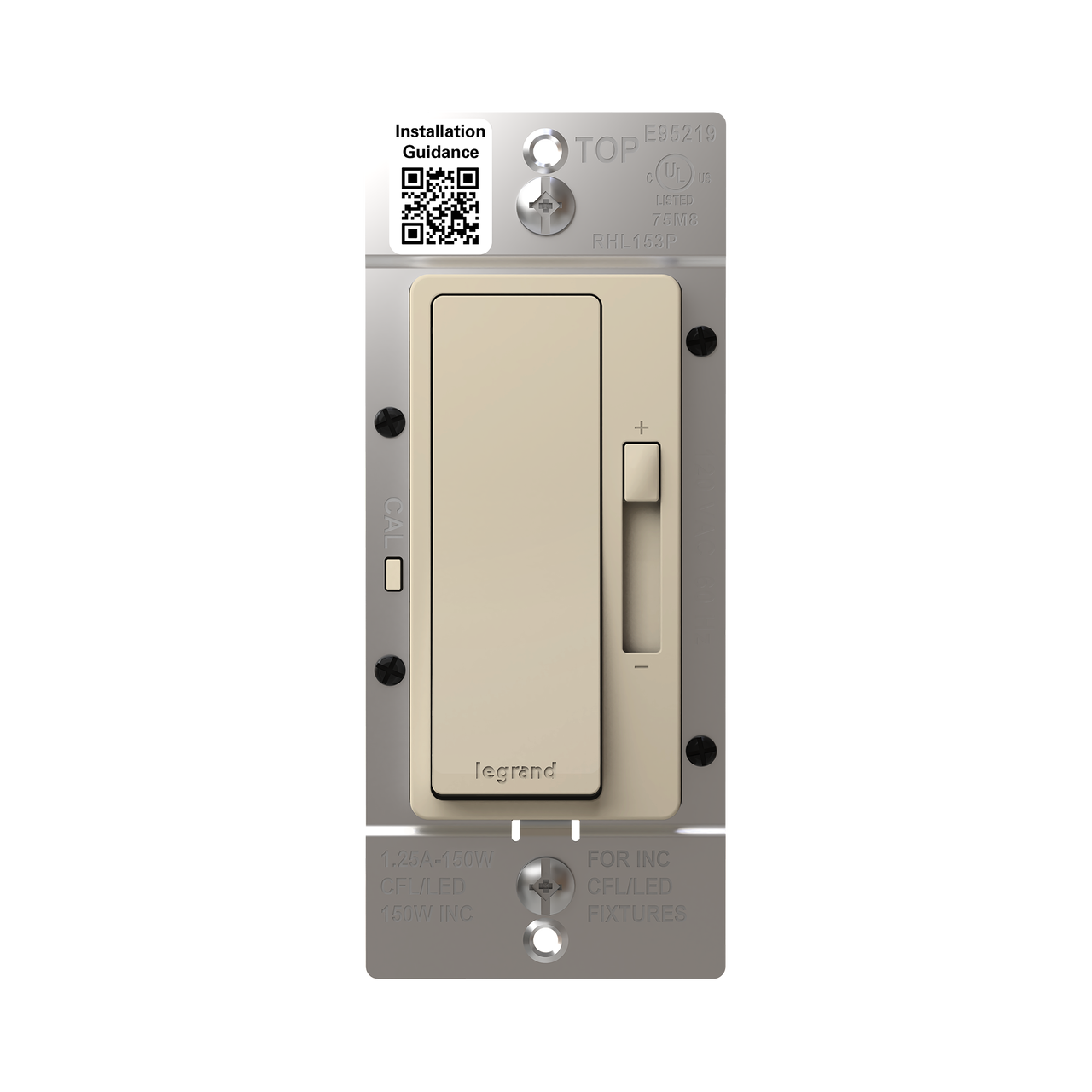

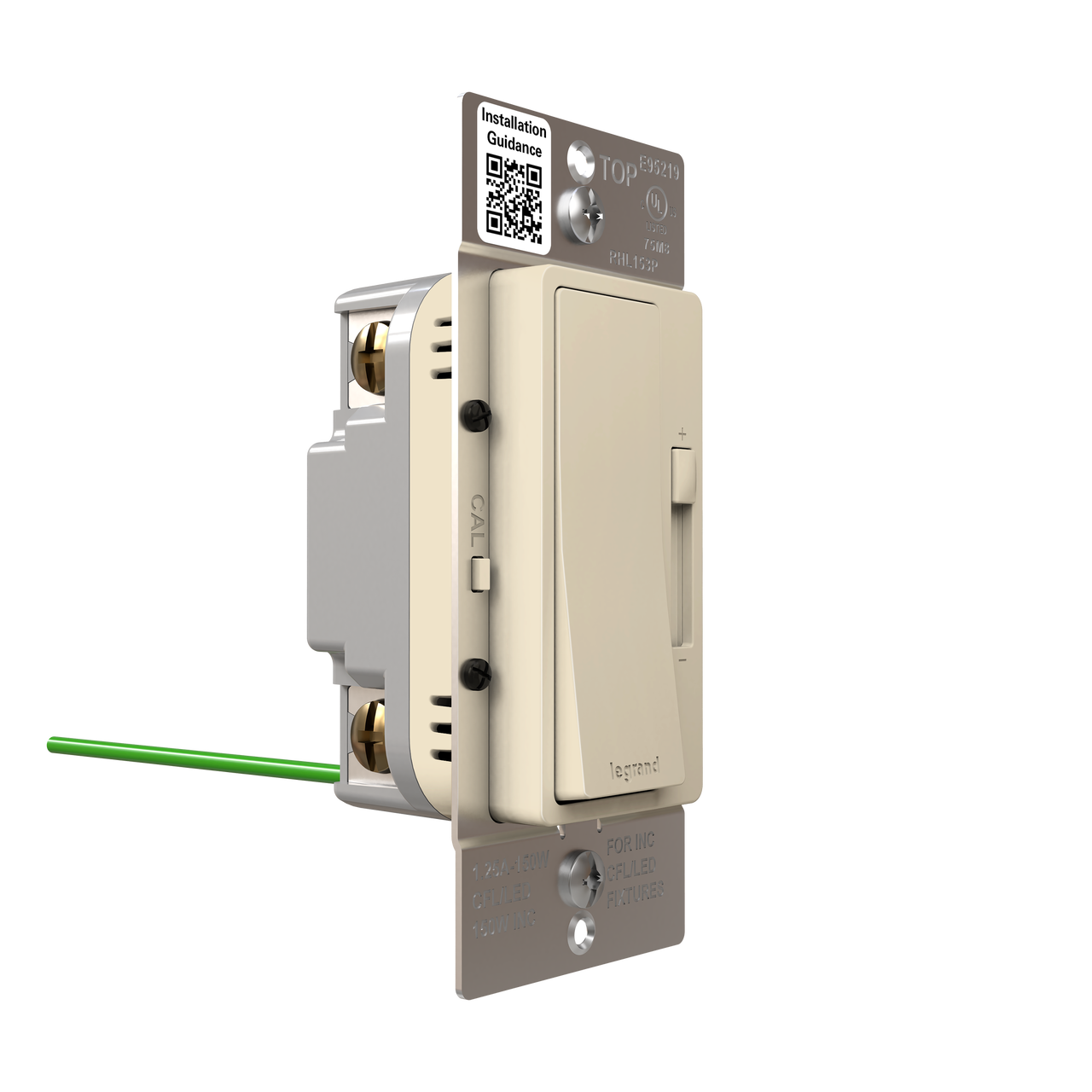

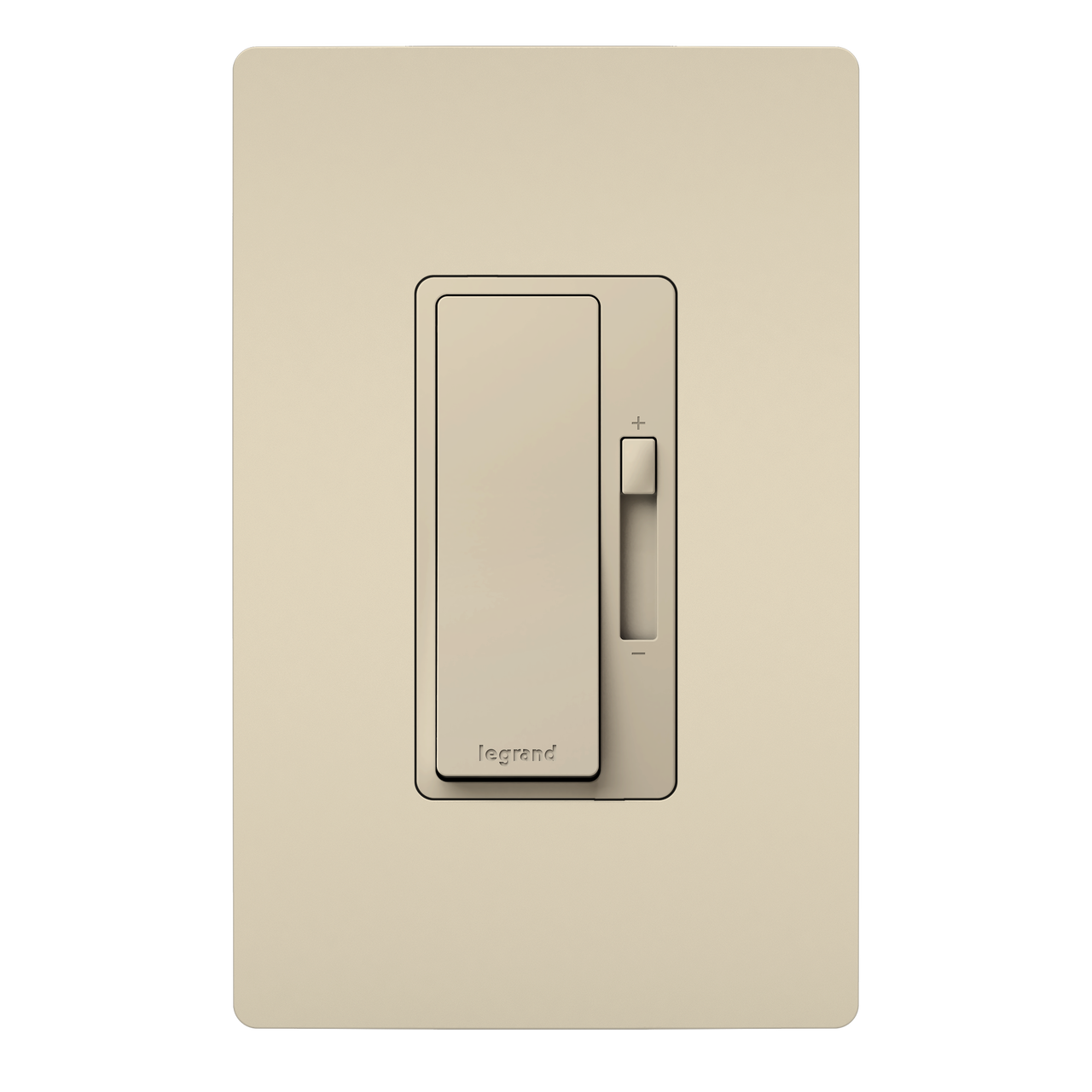

The Pass & Seymour RHL153PLA is an LED dimmer switch from the radiant collection. Designed for flicker-free control of dimmable LED bulbs and fixtures, this dimmer features advanced circuitry for a superior lighting control experience. It boasts user adjustments to adapt to a range of dimmable LED lights, eliminating flickering and pop-ons.
- Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120VAC.
- Advanced dimming technology maximizes LED compatibility.
- Simple high-and-low end dimming limit adjustability with calibration button.
Product Highlights
This LED dimmer switch provides smooth control and is suitable for residential and hospitality applications. It replaces basic switches in less than 15 minutes and does not require a neutral wire.
Product Information
Standard Information
-
Brand: Pass & Seymour
-
Manufacturer Part Number: RHL153PLA
-
Country of Origin: China
Technical Specifications
-
Color: Light Almond
-
Type: Decorator, Dimmer, Switch
-
Material: Polycarbonate
-
Finish: Satin
-
Application Sector: Hospitality, Residential
-
Product Line: Pass & Seymour
-
Country Of Origin: China
-
High-End Trim (Dim Range): LED Burst Mode, Low-End Trim (Dim Range)
-
Number of Switches: 1
-
Switch Type: Paddle, Slider
-
Standard: RoHS, CSA, cULus, NEMA (SSL-7A, WD1 & WD6)
-
UPC Number: 785007442861
-
Product Depth US: 1.46 in
-
Product Height US: 4.19 in
-
Product Width US: 1.74 in
-
CSA Listed: Yes
-
CSA File Number: C22.2 No. 184.1-96
-
cULus ListingNumber: E95219
-
cULus Listed: Yes
-
Product Has Potential to Contribute to LEED: Yes
-
RoHS Compliant: Yes
-
Requires Neutral Wire: No
-
Seismic Tested: No
-
Wire Connection Type: Screw Terminals
-
Dimming Compatibility: Forward Phase
-
Environmental Conditions: 0 to 90% (relative humidity, non-condensing)
-
Frequency Rating: 60 Hz
-
Indoor/Outdoor: Indoor
-
Load Rating: 120V 1.25A 150W (CFL), 120V 1.25A 150W (Incandescent), 120V 1.25A 150W (LED)
-
Load Type: LED
-
Mounting Type: Wall Box
-
Number of Poles: 3
-
Maximum Humidity: 90% (relative humidity, non-condensing)
-
Preset: Yes
-
Voltage: 120 VAC
-
Wire Size: #14 - #10 AWG
-
Depth: 1.46 Inch
-
Height: 4.19 Inch
-
Width: 1.74 in
-
Applications: Hospitality,Residential
-
Frequency: 60 Hz
-
Indoor Outdoor: Indoor
-
Sub Brand: radiant
-
12-Digit UPC: 785007442861
-
GTiN: 00785007442861
-
Product UPC: 78500744286
