Product Description

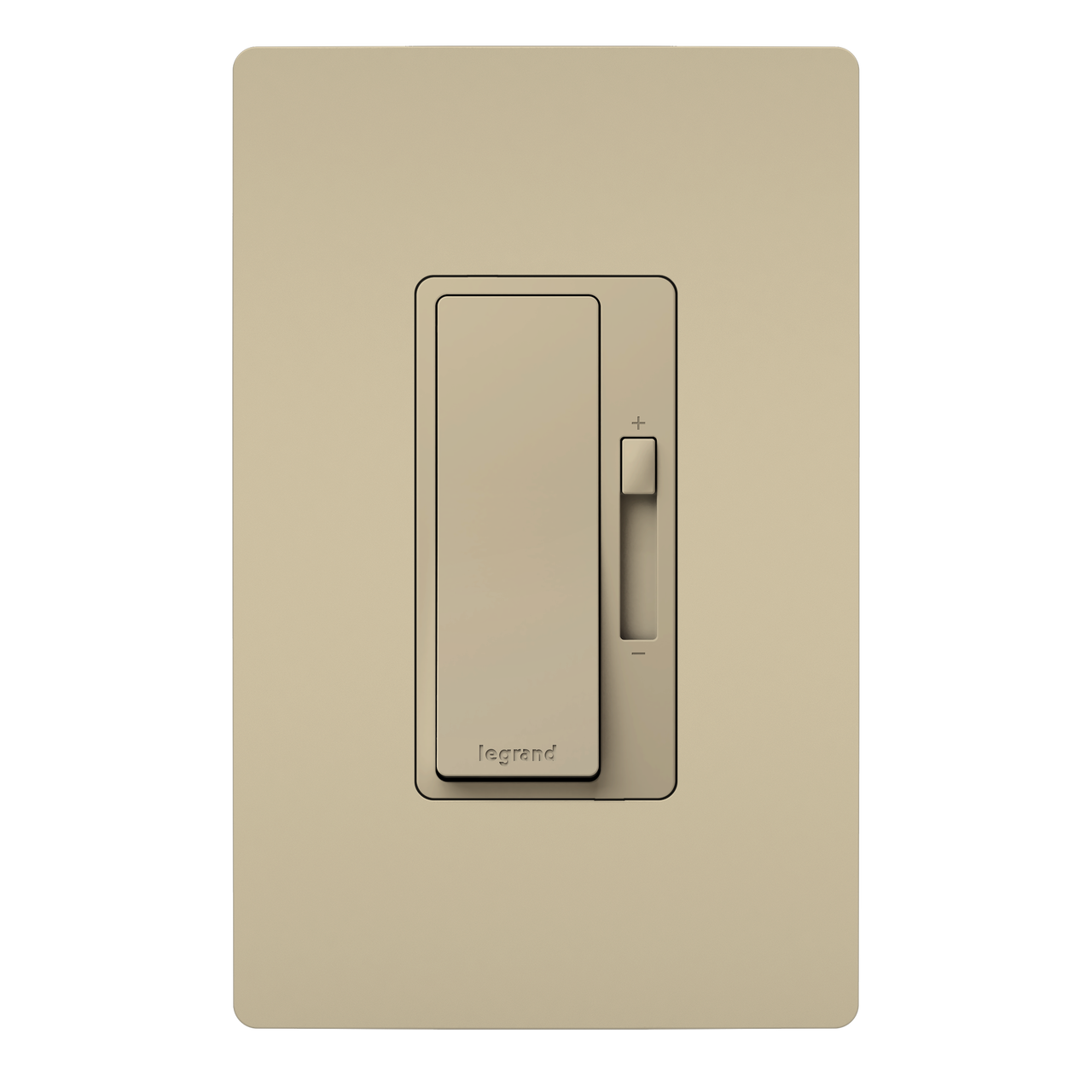

The Pass & Seymour RHL153PI is Legrand's newest LED dimmer switch in the radiant Collection. Designed for flicker-free control of dimmable LED light bulbs and fixtures, this dimmer features advanced circuitry to offer a superior lighting control experience. The dimmer switch boasts user adjustments to adapt to a wide range of dimmable LED lights.
- Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120VAC.
- Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues.
- Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering.
Product Highlights
This LED dimmer switch provides flicker-free control of LEDs, adapts to a wide range of dimmable LED lights, and features clean lines and smooth control.
Product Information
Standard Information
-
Brand: Pass & Seymour
-
Manufacturer Part Number: RHL153PI
-
Country of Origin: China
Technical Specifications
-
Color: Ivory
-
Type: Decorator, Dimmer, Switch
-
Material: Thermoplastic/Steel
-
Finish: Satin
-
Application Sector: Hospitality, Residential
-
Product Line: Pass & Seymour
-
Country Of Origin: China
-
Features: High-End Trim (Dim Range), LED Burst Mode, Low-End Trim (Dim Range)
-
Number of Switches: 1
-
Switch Type: Paddle, Slider
-
Standard: RoHS, CSA, cULus, NEMA (SSL-7A, WD1 & WD6)
-
UPC Number: 785007442878
-
Product Depth US: 1.46 in
-
Product Height US: 4.19 in
-
Product Width US: 1.74 in
-
Product Weight US: 0.194 lb
-
CSA Listed: Yes
-
CSA File Number: C22.2 No. 184.1-96
-
cULus ListingNumber: E95219
-
cULus Listed: Yes
-
Product Has Potential to Contribute to LEED: Yes
-
RoHS Compliant: Yes
-
Requires Neutral Wire: No
-
Seismic Tested: No
-
Wire Connection Type: Screw Terminals
-
Dimming Compatibility: Forward Phase
-
Environmental Conditions: 0 to 90% (relative humidity, non-condensing)
-
Frequency Rating: 60 Hz
-
Indoor/Outdoor: Indoor
-
Load Rating: 120V 1.25A 150W (CFL), 120V 1.25A 150W (Incandescent), 120V 1.25A 150W (LED)
-
Load Type: LED
-
Mounting Type: Wall Box
-
Number of Poles: Single Pole 3-Way
-
Maximum Humidity: 90% (relative humidity, non-condensing)
-
Preset: Yes
-
Voltage: 120 VAC
-
Wire Size: #14 - #10 AWG
-
Amperage Rating: 1.25 A
-
Lamp Type: Led
-
Mounting Type (AD): Wall
-
Operation Mode: Preset ON/OFF
-
Power Rating: 150 W
-
Start Type: 3-way/single-pole
-
Terminal Type: Back Wire/Pressure Plate/Screw
-
Voltage Rating: 120 V
-
Frequency: 60 Hz
-
Depth: 1.46 Inch
