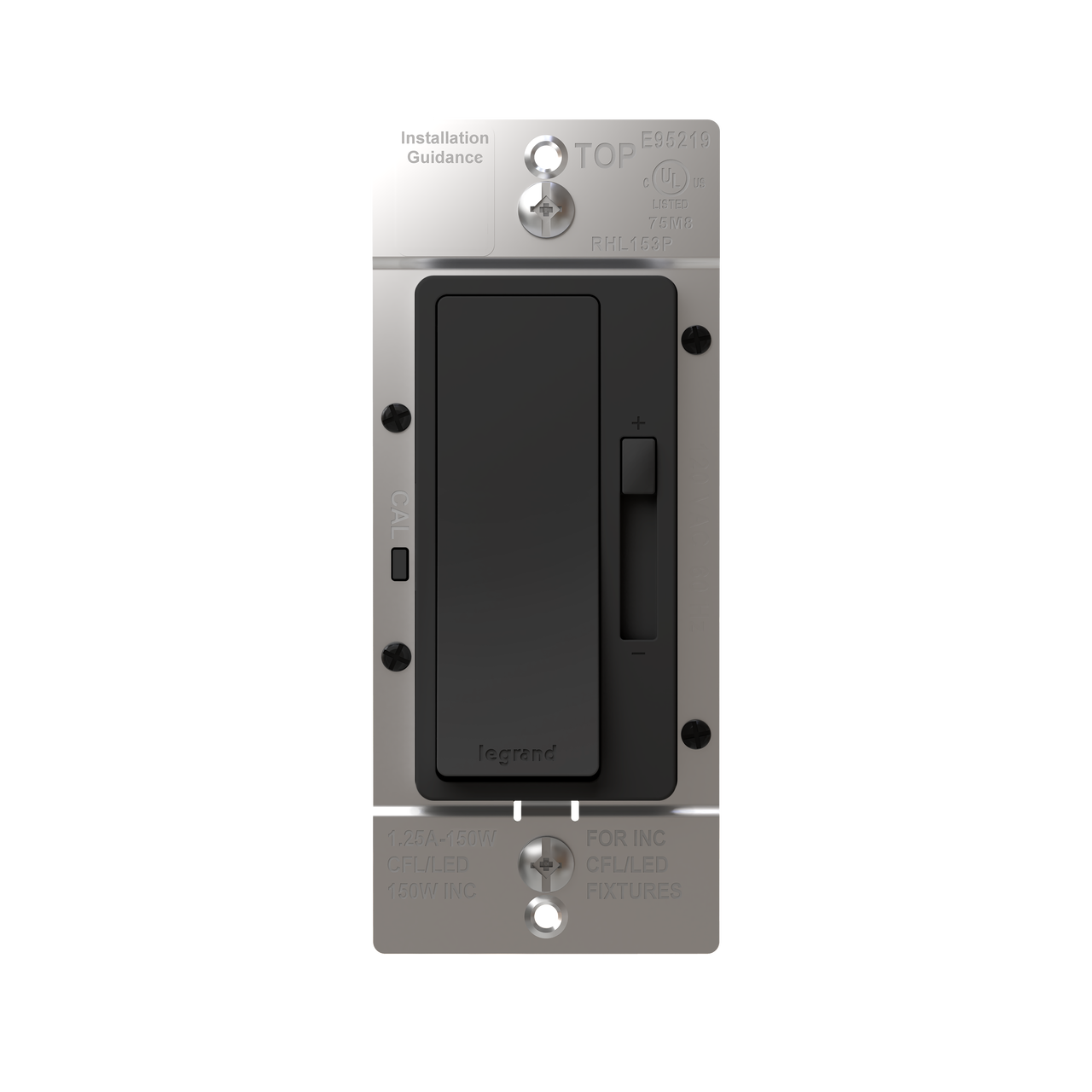

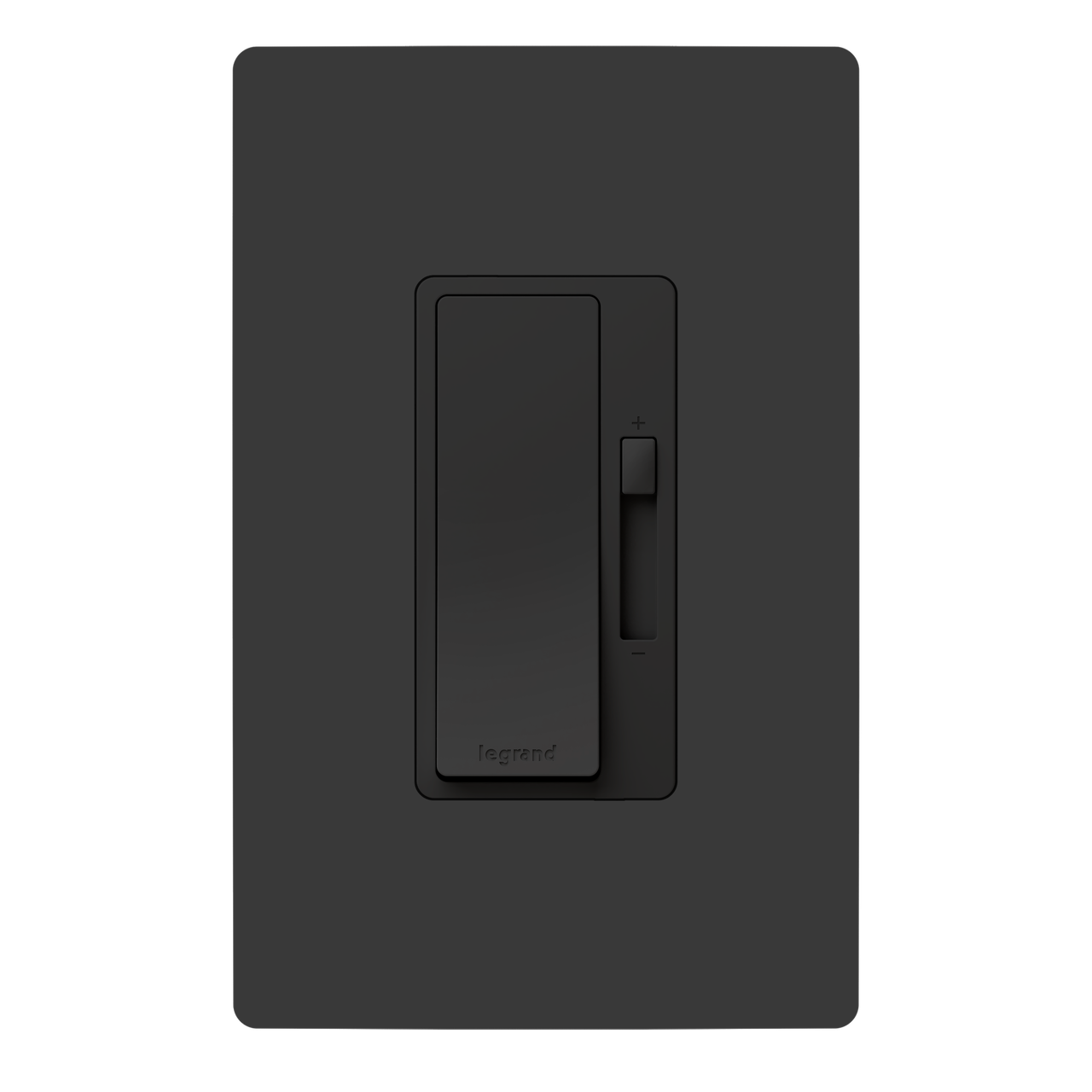

Pass & Seymour RHL153PBK Radiant LED Advanced Dimmer 150W

Product Description

The Pass & Seymour RHL153PBK is an LED advanced dimmer from the radiant collection. This dimmer is designed for use with dimmable LED bulbs and fixtures up to one hundred fifty watts at one hundred twenty volts AC. It features advanced dimming technology to enhance LED compatibility and provide a complete range of control. The dimmer is suitable for single pole or three-way circuits and does not need a neutral wire. It also includes adjustable high-and-low end dimming limits and an optional LED Burst Mode setting.

• Designed for dimmable LED bulbs and fixtures up to one hundred fifty watts at 120VAC.
• Features adjustable high-and-low end dimming limits.
• Compatible with single pole or three-way circuits.

Product Highlights

This dimmer allows for precise light control in residential and hospitality applications.

Product Information

Standard Information

• Brand: Pass & Seymour
• Color: Black

Technical Specifications

• Voltage: 120 VAC
• Current Rating: 1.25 Amps
• Load Rating: 150W (CFL), 150W (Incandescent), 150W (LED)
• Dimming Compatibility: Forward Phase
• Mounting Type: Wall Box, Surface Mount
• Material: Thermoplastic
• Product Dimensions: 1.46 x 1.74 x 4.19 inches
• Weight: 0.194 lb
