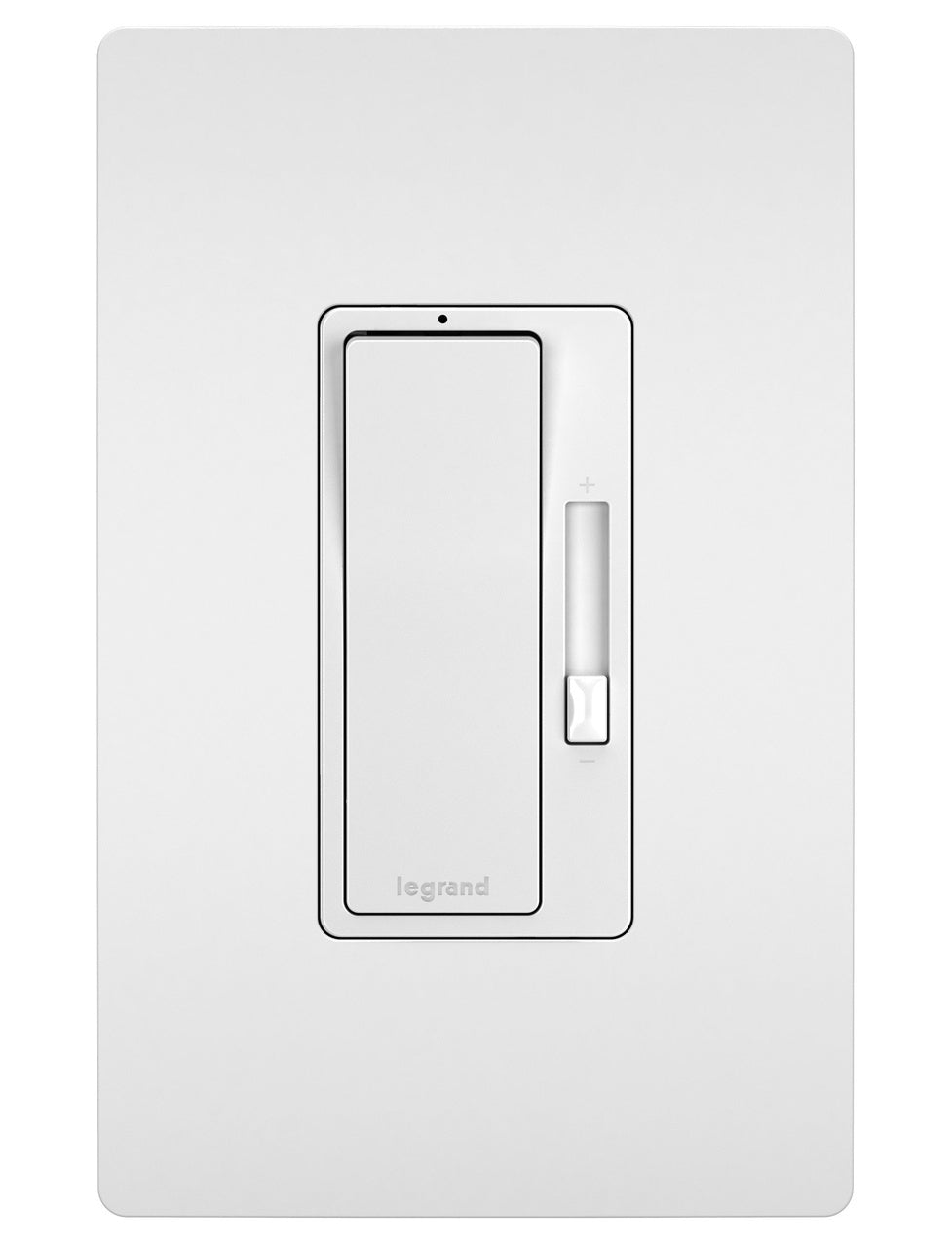

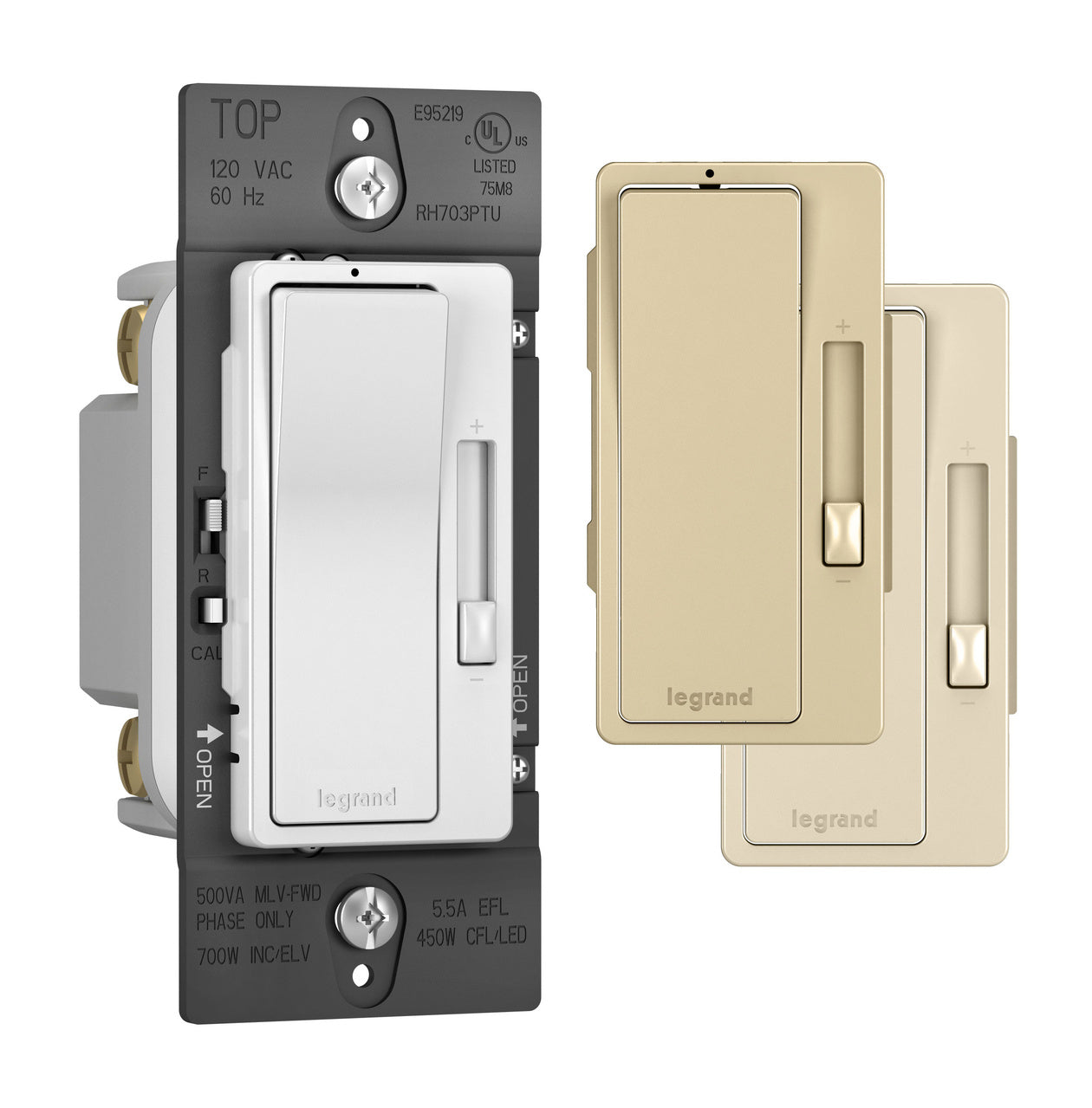

Pass & Seymour RH703PTUTCCCV4 Tru-Universal Single Pole/3-Way Dimmer

Product Description

The Pass & Seymour Radiant RH703PTUTCCCV4 Tru-Universal Dimmer is designed for both single-pole and 3-way installations. This dimmer is compatible with 120V dimmable bulbs and includes a paddle switch for on/off control along with a slider to adjust brightness. The unit features self-calibration to reduce flicker, making it suitable for various residential and light commercial settings.

• Compatible with single-pole and 3-way circuits.

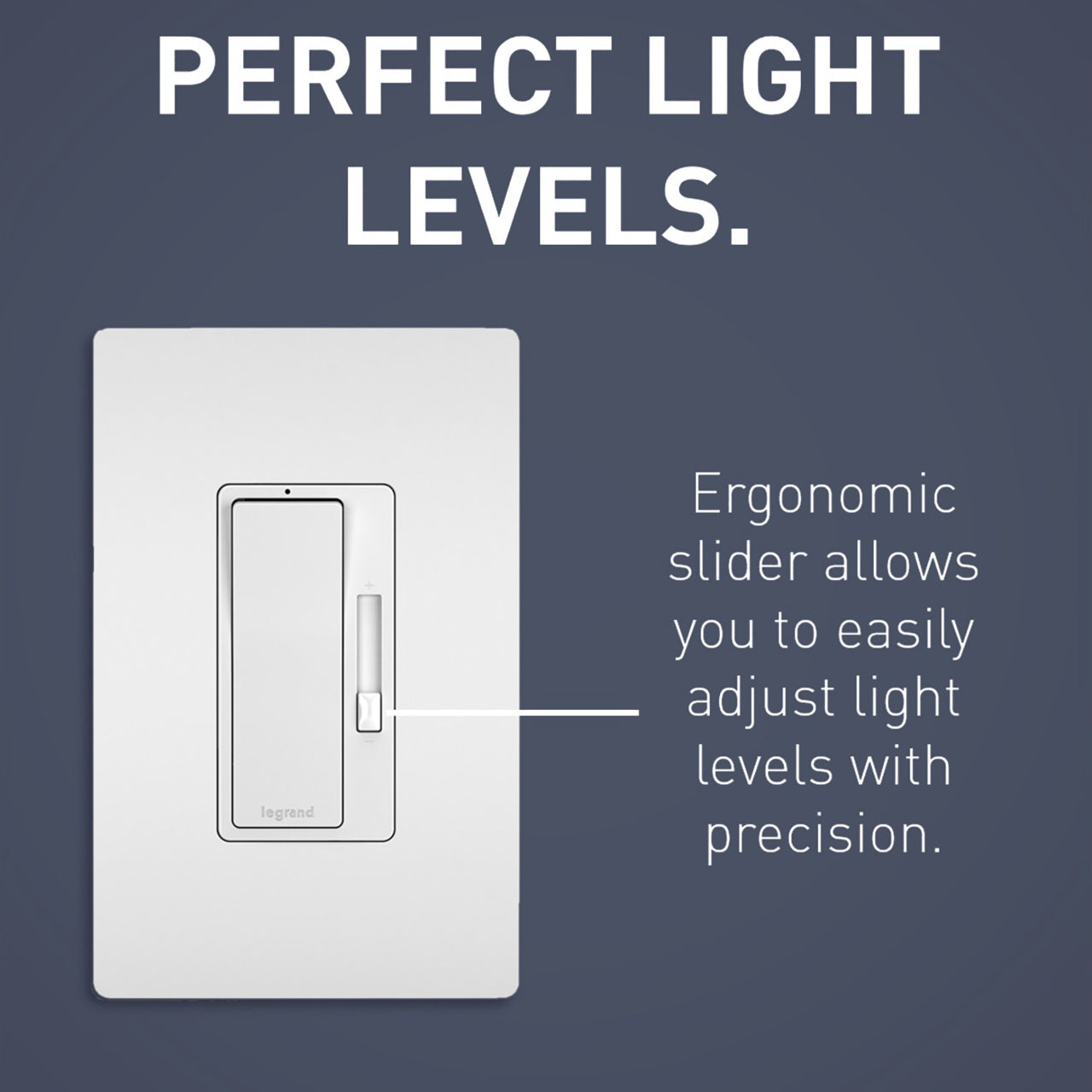

• Includes a paddle switch and separate slider for dimming control.
• Features self-calibration to minimize flicker.

Product Highlights

This dimmer model allows for smooth dimming with a wide range of bulb types, ensuring versatility in use. Its compact size and modern design fit seamlessly into home and office environments.

Product Information

Standard Information

• Brand: Pass & Seymour
• Sub Brand: The Radiant

Technical Specifications

• Type: Dimmer, 3 Way, Paddle, Slide Handle, Tru-Universal
• Switch Type: Paddle, Slider
• Number of Switches: 1
• Voltage: 120 VAC
• Power Rating: 700 W
• Amperage: 15 Amp
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED
• Dimensions: 4.25 inches H x 1.75 inches W x 1.25 inches D
• Operating Temperature: 0 to 40 degrees Celsius
• Requires Neutral Wire: Yes
• Country Of Origin: China
